GE GDE25EGKBRWW Refrigerator

Model: GDE25EGKBRWW

Back To Assemblies

Save Part Not Listed?
product name

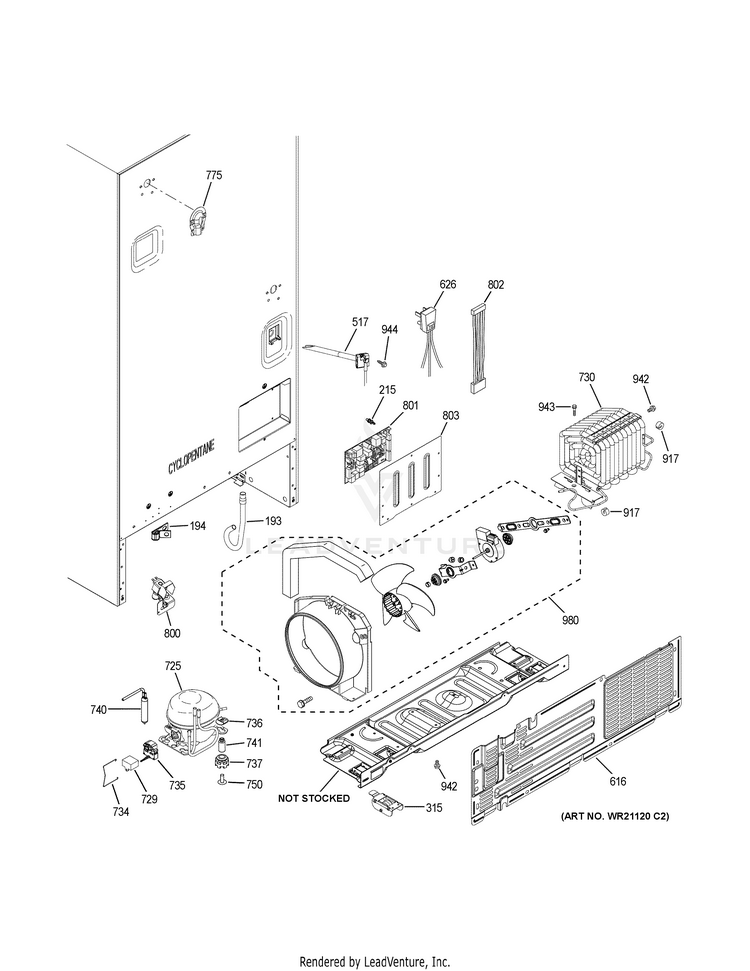

MACHINE COMPARTMENT

...
...
193
TUBE DRAIN GEH-WR02X11426
...
194
CLAMP CABLE GEH-WR01X10684
...
215
STAND OFF GEH-WR02X10663
...
315
MOBILITY BACK ASM GEH-WR02X24943
...
517
GROMMET AND TUBE IM ASM GEH-WR29X24766
...
616
ACCESS COVER GEH-WR82X10103
...
626
POWER CORD GEH-WR23X0108
...
725
COMPRESSOR KIT EGYS60 GEH-WR87X10224
...
729
CAPACITOR 12 UF GEH-WR55X23731
...
730
CONDENSER ASM GEH-WR87X24809
...
734
CLIP RETAINER MEI GEH-WR02X26735
...
735
OVERLOAD PTCR COMBO GEH-WR08X26736
...
736
CLIP GEH-WR2X8203
...
737
GROMMET GEH-WR02X10099
...
740
P/S DRYER KIT R134A GEH-WR86X0096
...
741
STUD MTG COMPR GEH-WR01X1779
...
750
SCR 10-32 TR 1/2 GEH-WR01X1786
...
775
COVER WATER LINE GEH-WR17X13124
...
800
VALVE & GUARD ASM GEH-WR57X26305
...
801
BOARD ASM MAIN CONTROL GEH-WR55X26827
...
802
HARNESS BOARD INDIV. GEH-WR55X11054
...
803
COVER MAIN BOARD ASM GEH-WR02X27636
...
917
SOUND DAMPER GEH-WR02X13573
...
942
SCREW 10-32 TT HXW 5/16 GEH-WR01X10252
...
943
SCR 10-16 B HXW 1/4 S GEH-WR01X25308
...
944
SCREW 8-18 AB IHW 5/8 S GEH-WR01X10035
...
980
COND FAN & HOUSING ASM GEH-WR60X25869
