GE GDE23GGHBRBB Refrigerator

Model: GDE23GGHBRBB

Back To Assemblies

Save Part Not Listed?
product name

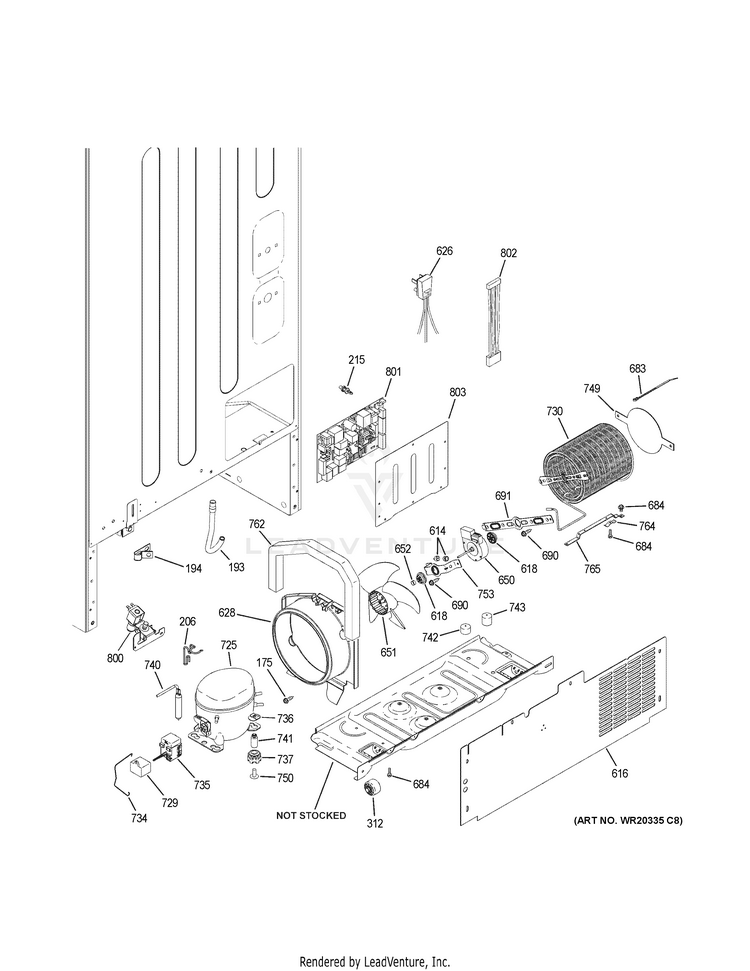

MACHINE COMPARTMENT

...
...
175
SCREW 8-18 AB IHW 5/8 S GEH-WR01X10035
...
193
TUBE DRAIN GEH-WR02X11426
...
194
CLAMP CABLE GEH-WR01X10684
...
206
CLIP DRAIN TUBE GEH-WR02X12377
...
215
STAND OFF GEH-WR02X10663
...
312
MOBILITY BACK ASM GEH-WR02X12288
...
614
BUMPER GEH-WR02X10540
...
616
COVER ACCESS GEH-WR82X10110
...
618
GROMMET FAN MOTOR GEH-WR02X10520
...
626
POWER CORD GEH-WR23X0108
...
628
SHROUD CONDENSER GEH-WR17X12668
...
650
MOTOR DC COND FAN GEH-WR60X10216
...
651
BLADE COND FAN ASM GEH-WR60X10206
...
652
RING COMPRESSION GEH-WR02X12149
...
683
WIRE TIE GEH-WR02X11027
...
684
SCREW 10-32 TT HXW 5/16 GEH-WR01X10252
...
690
SCR 8-32 T HXW 3/8 S GEH-WR01X1466
...
691
BRACKET COND FAN (REAR) GEH-WR02X10593
...
725
COMPRESSOR KIT EGYS60 GEH-WR87X10224
...
729
CAPACITOR GEH-WR55X20800
...
730
PROD SERV CONDENSER GEH-WR84X10022
...
734
CLIP RETAINER COMBO GEH-WR02X22564
...
735
TSD COMBO GEH-WR08X21100
...
736
CLIP COMPRESSOR MOUNT GEH-WR02X8203
...
737
GROMMET GEH-WR02X10099
...
740
P/S DRYER KIT R134A GEH-WR86X0096
...
741
STUD MTG COMPR GEH-WR01X1779
...
742
SUPPORT CONDENSER GEH-WR02X10587
...
743
SUPPORT CONDENSER GEH-WR02X10588
...
749
BAFFLE COND AIR GEH-WR17X12508
...
750
SCR 10-32 TR 1/2 GEH-WR01X1786
...
753
BRKT COND FAN (MTG) GEH-WR02X10521
...
762
FOAM STRIP SE ADH GEH-WR14X10199
...
764
CLIP, COND MNT GEH-WR02X9000
...
765
BRACKET CONDENSER BAR GEH-WR17X10763
...
800
VALVE AND TUBE ASM GEH-WR57X10048
...
801
BOARD ASM MAIN CONTROL GEH-WR55X23924
...
802
HARNESS BOARD INDIV GEH-WR23X10509
...
803
COVER MAIN BOARD ASM GEH-WR02X12027
