GE GDE23GGHBRBB Refrigerator

Model: GDE23GGHBRBB

Back To Assemblies

Save Part Not Listed?
product name

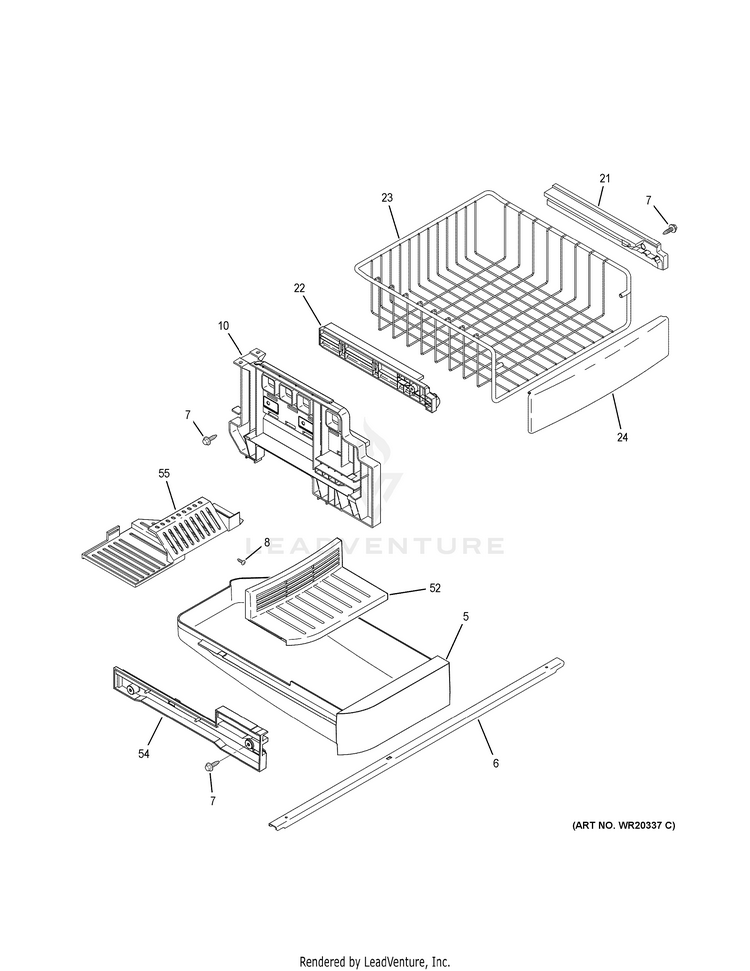

FREEZER SHELVES

...
...
5
ICE DRAWER GEH-WR30X10106
...
6
BEAM SUPPORT GEH-WR02X12872
...
7
SCR 8-18 AB HXW 1/2 S GEH-WR01X10612
...
8
SCR 8-18 AB PHR 1/2 S GEH-WR01X10607
...
10
DIVIDER GUIDE RAIL GEH-WR02X12871
...
21
GLIDE UPPER BASKET GEH-WR72X10302
...
22
GLIDE UPPER BASKET GEH-WR72X10303
...
23
BASKET UPPER GEH-WR21X10180
...
24
TRIM BASKET GEH-WR12X20403
...
52
SHELF CHILLER GEH-WR30X10107
...
54
GLIDE LH GEH-WR72X10301
...
55
COVER DRAWER ICE GEH-WR17X12564
