GE GDE23GGHBRBB Refrigerator

Model: GDE23GGHBRBB

Back To Assemblies

Save Part Not Listed?
product name

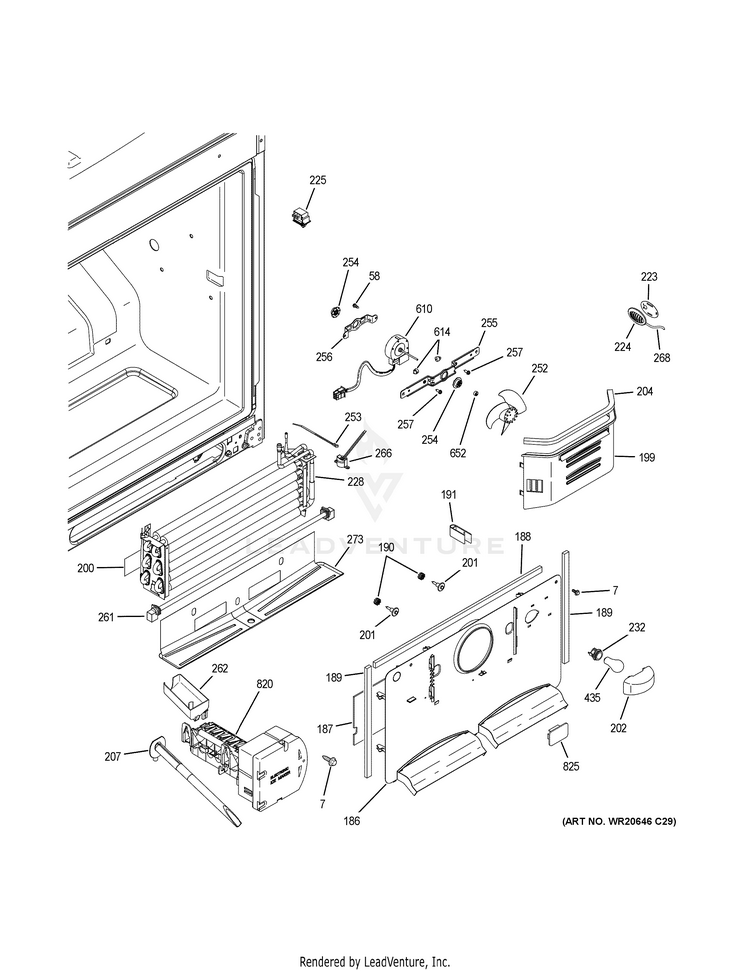

FREEZER SECTION

...
...
7
SCR 8-18 AB HXW 1/2 S GEH-WR01X10612
...
58
SCR 8-18 AB IHXW 9/16 S GEH-WR01X10588
...
186
COVER EVAP GEH-WR17X12816
...
187
FOAM COVER EVAP GEH-WR14X10260
...
188
FOAM STRIP SE ADH GEH-WR14X10261
...
189
FOAM STRIP SE ADH GEH-WR14X10262
...
190
GROMMET EVAP FAN GEH-WR17X12252
...
191
CLAMP TUBE GEH-WR02X10522
...
199
COVER EVAP FAN GEH-WR17X12575
...
200
HARNESS INSULATION GEH-WR14X10267
...
201
SCR 8-18 AB IHW GEH-WR01X10685
...
202
SHIELD LIGHT FZ GEH-WR02X13315
...
204
FOAM STRIP SE ADH GEH-WR14X10264
...
207
GROMMET AND TUBE ASM GEH-WR17X12788
...
223
SHUNT SENSOR GEH-WR02X10668
...
224
GRILLE SENSOR GEH-WR02X10647
...
225
SWITCH LIGHT GEH-WR23X10179
...
228
LOW SIDE ASM GEH-WR85X10107
...
232
SOCKET & TERMINAL ASM GEH-WR02X9391
...
252
BLADE EVAP FAN ASM GEH-WR60X10208
...
253
WIRE TIE GEH-WR02X11607
...
254
GROMMET EVAP FAN GEH-WR02X11331
...
255
BRACKET FAN EVAP FRONT GEH-WR17X12507
...
256
BRACKET EVAP FAN BTM GEH-WR02X10764
...
257
SCR 10-32 GEH-WR01X10620
...
261
HEATER DEF ASM GEH-WR51X10108
...
262
CUP FILL IM GEH-WR29X10064
...
266
DEFROST THERMOSTAT GEH-WR50X10028
...
268
SENSOR TEMP FZ GEH-WR55X10026
...
273
TROUGH DRAIN ASM GEH-WR17X12506
...
435
LAMP 40W 120V GEH-STD372402
...
610
MOTOR DC EVAP FAN ASM GEH-WR60X10277
...
614
BUMPER GEH-WR02X10540
...
652
RING COMPRESSION GEH-WR02X12149
...
820
ICE MAKER ASM GEH-WR30X10012
...
825
PLUG EVAP COVER GEH-WR02X13245
