GE GDE23ETEBRWW Refrigerator

Model: GDE23ETEBRWW

Back To Assemblies

Save Part Not Listed?
product name

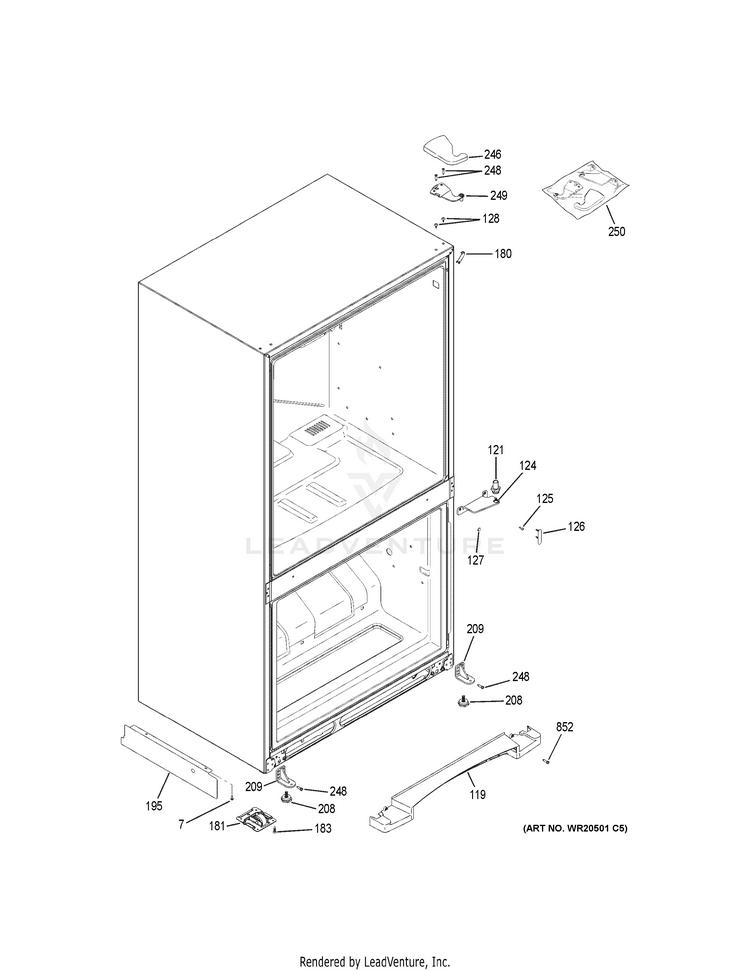

CASE PARTS

...
...
7
SCR 8-18 AB HXW 1/2 S GEH-WR01X10612
...
119
GRILLE BASE GEH-WR74X10263
...
121
PIN HINGE CENTER GEH-WR02X12875
...
124
HINGE AND PIN STOP ASM GEH-WR13X10631
...
125
SCR 12-24 TT HXT20 .90 S GEH-WR01X10690
...
126
COVER MULLION SCREW GEH-WR02X12421
...
127
SCREW & COVER WHITE GEH-WR02X10992
...
128
PLUG COVER GEH-WR02X13017
...
180
CAP CORNER OC WHITE GEH-WR02X10640
...
181
MOBILITY FRONT ASM GEH-WR02X12807
...
183
SCR 10-32 B IHXW 1/2 GEH-WR01X10622
...
195
SEPARATOR AIR HISIDE GEH-WR17X12295
...
208
SCREW LEVELING GEH-WR01X10850
...
209
BRACKET LEG ASM GEH-WR02X12874
...
246
COVER HINGE TOP GEH-WR02X12879
...
248
SCR 12-24 TT HX 7/8 S GEH-WR01X10792
...
249
HINGE TOP & PIN ASM GEH-WR13X10630
...
250
KIT HINGE CHANGEABLE GEH-WR49X20311
...
852
SCR 8-18 AB PNP 5/8 S GEH-WR01X10858
