GE GDE21EGKGRBB Refrigerator

Model: GDE21EGKGRBB

Back To Assemblies

Save Part Not Listed?
product name

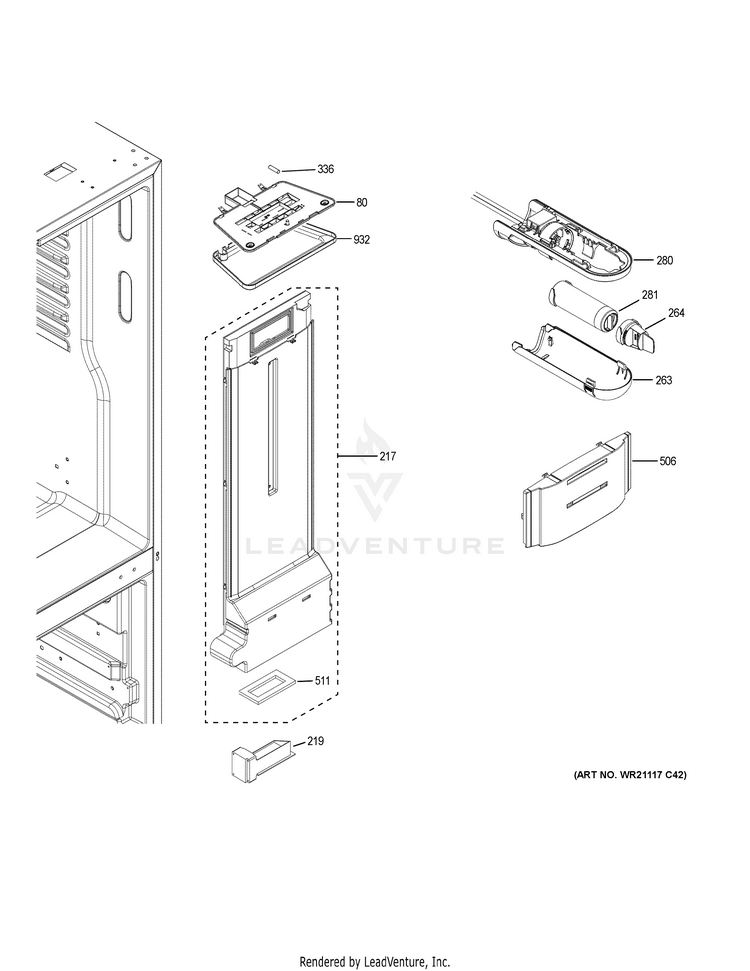

FRESH FOOD SECTION

...
...
80
LIGHT HOUSING GEH-WR55X30388
...
217
FF AIR TOWER 30 GEH-WR14X26409
...
219
DAMPER ASM GEH-WR60X27396
...
263
DOOR FILTER XWF GEH-WR17X30148
...
264
BYPASS FILTER PLUG GEH-WR17X30044
...
280
XWF MANIFOLD & HOUSING GEH-WR14X30263
...
281
XWF RETAIL FILTER GEH-XWF
...
336
SENSOR TEMP FF GEH-WR55X10025
...
506
FRESH FOOD AIR TOWER GRILL GEH-WR14X29199
...
511
GASKET TOWER FF GEH-WR14X24747
...
932
COVER LED TOP GEH-WR17X25143
