GE GDE20GGHBRBB Bottom Mount Refrigerator

Model: GDE20GGHBRBB

Back To Assemblies

Save Part Not Listed?
product name

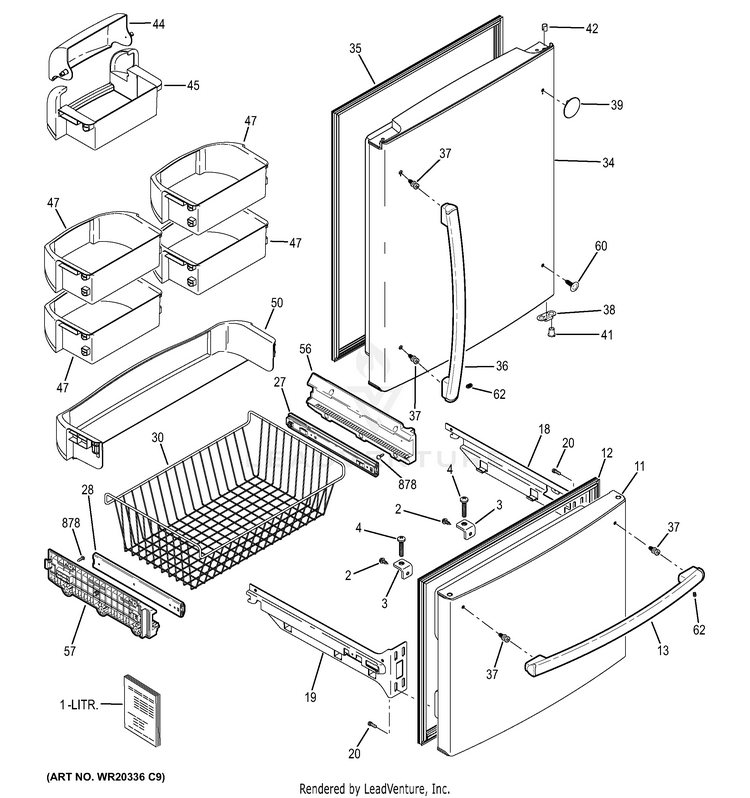

DOORS

...
...
1
PM MINI WIRING MANUAL GEH-31-51740
...
1
PM GUIDE OWNERS GEH-49-60539
...
2
SCR 8-32 AB IHWS 3/8 S GEH-WR01X10844
...
3
BRACKET SUPPORT GEH-WR02X12870
...
4
SCR 1/4 - 20 UNC -2A GEH-WR01X10843
...
11
DOOR FOAM FZ ASM GEH-WR78X24115
...
12
GASKET GEH-WR14X10324
...
13
ARC HANDLE ASM FZ GEH-WR12X20318
...
18
BRACKET LOWER GEH-WR72X10299
...
19
BRACKET LOWER GEH-WR72X10300
...
20
SCR 1/4-20 RT FLAT 3/4 S GEH-WR01X10885
...
27
SLIDE RH GEH-WR17X20764
...
28
SLIDE LH GEH-WR17X20766
...
30
BASKET LOWER GEH-WR21X10182
...
34
DOOR FOAM FF ASM GEH-WR78X24114
...
35
GASKET GEH-WR14X10346
...
36
ARC HANDLE ASM FF GEH-WR12X20316
...
37
FASTENER DOOR HANDLE GEH-WR01X11007
...
38
STOP DOOR FF GEH-WR02X12802
...
39
BADGE GE GEH-WR04X10223
...
41
THIMBLE DOOR FF GEH-WR02X12804
...
42
HINGE BUSHING GEH-WR02X13406
...
44
DOOR DAIRY GEH-WR22X10063
...
45
DAIRY BIN GEH-WR22X10073
...
47
SHELF MODULE GEH-WR71X20333
...
50
SHELF FIXED GEH-WR71X20223
...
56
HOLDER RAIL FZ DRAWER GEH-WR02X20763
...
57
HOLDER RAIL FZ DRAWER GEH-WR02X20765
...
60
PLUG BUTTON GEH-WR02X13056
...
62
SET SCREW GEH-WR01X20424
...
878
SCR 10-14 PL FLT20 3/4 S GEH-WR01X10939
