GE GBE21DSKJRSS Refrigerator

Model: GBE21DSKJRSS

Back To Assemblies

Save Part Not Listed?
product name

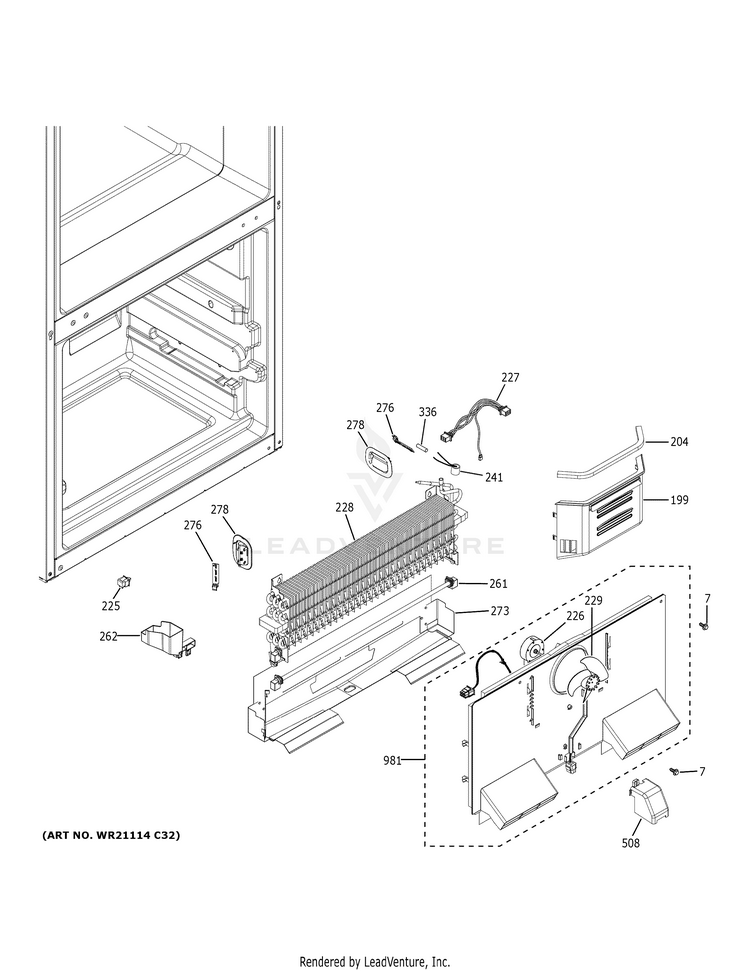

FREEZER SECTION

...
...
7
SCR 8-18 AB HXW 1/2 S GEH-WR01X10612
...
199
COVER EVAP FAN GEH-WR17X24786
...
204
FOAM STRIP SE ADH GEH-WR14X24804
...
225
LIGHT SWITCH GEH-WR23X30156
...
226
MOTOR DC EVAP FAN GEH-WR60X31698
...
227
HARNESS EVAP GEH-WR55X30889
...
228
LOW SIDE ASM GEH-WR85X25309
...
229
BLADE EVAP FAN ASM GEH-WR60X10208
...
241
THERMOSTAT DEF GEH-WR50X10069
...
261
HEATER DEF ASM GEH-WR51X25156
...
262
CUP FILL IM GEH-WR29X26688
...
273
TROUGH DRAIN ASM GEH-WR17X25157
...
276
BOARD LED LIGHT ASM GEH-WR55X24870
...
278
SHIELD LIGHT GEH-WR17X24873
...
336
SENSOR TEMP FF GEH-WR55X10025
...
508
COVER CONECTOR GEH-WR02X24787
...
981
COVER EVAP ASM 30 GEH-WR14X26746
