GE FUM21DHRBWW Freezer

Model: FUM21DHRBWW

Save Part Not Listed?
product name

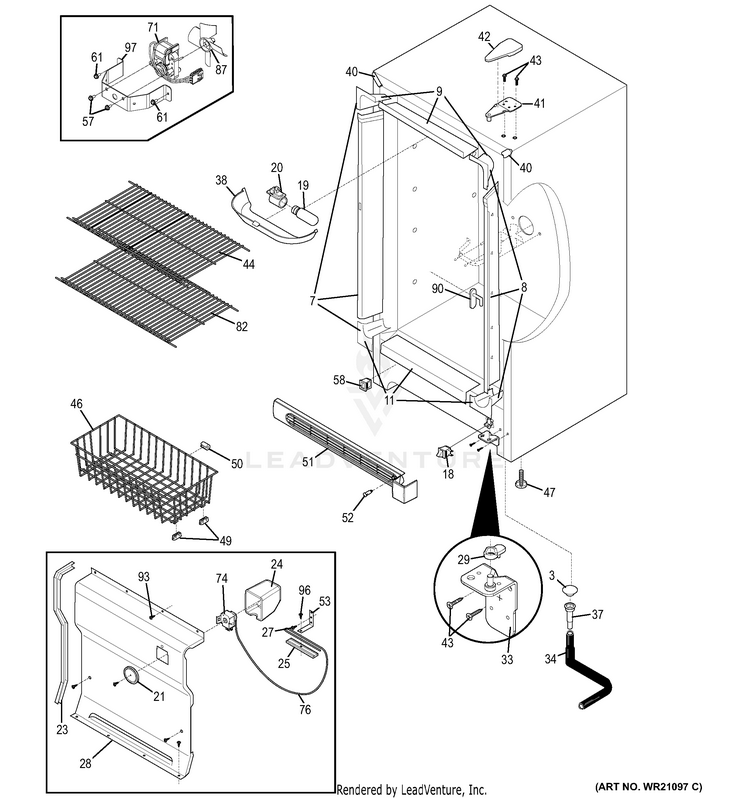

CABINET

...
...
3
PLUG DRAIN GEH-WR02X10073
...
7
BREAKER GEH-WR40X23511
...
8
BREAKER,U21 ,W/LOCK GEH-WR40X23514
...
9
BREAKER,TOP GEH-WR40X23513
...
11
BREAKER,BOTTOM GEH-WR40X23512
...
18
SWITCH LIGHT GEH-WR23X10303
...
19
LIGHT BULB/LAMP GEH-WR01X23536
...
20
LIGHT SOCKET GEH-WR23X10690
...
21
COLD CONTROL KNOB GEH-WR02X10860
...
23
GASKET-EVAP COVER GEH-WR14X10293
...
24
COVER-CONTROL HOUSING GEH-WR02X12316
...
25
CLAMP CAP TUBE GEH-WR02X11441
...
27
SCREW,TYPE A ,10-24 X 3/ GEH-WR01X10796
...
28
COVER,EVAPORATOR GEH-WR17X23524
...
29
RAMP,DOOR CLOSER GEH-WR02X23543
...
33
HINGE,1/2" PIN ,BOTTOM R GEH-WR12X23534
...
34
HOSE-DRAIN GEH-WR17X11418
...
37
DRAIN GEH-WR17X23526
...
38
SHIELD-LIGHT GEH-WR02X12994
...
40
TRIM-CABINET CORNER, WHI GEH-WR02X13348
...
41
HINGE-UPPER GEH-WR12X10891
...
42
COVER-HINGE GEH-WR02X12689
...
43
SCREW BOTTOM HINGE GEH-WR01X10997
...
44
SHELF,16.69 X 27.88 ,WIR GEH-WR71X23547
...
46
BASKET GEH-WR21X23505
...
47
FOOT ADJ. GEH-WR2X9485
...
49
GLIDE-BASKET GEH-WR02X23530
...
50
BUMPER GEH-WR2X6361
...
51
GRILLE/KICKPLATE GEH-WR74X23531
...
52
LIGHT SIGNAL,ROUND ,GREE GEH-WR23X23537
...
53
BRACKET,CONTROL GEH-WR02X23508
...
57
SCREW,HEX WASHER HEAD ,8 GEH-WR01X10798
...
58
VALVE, BREATHER GEH-WR86X10064
...
61
SCREW, #8, 18X.63, SELF GEH-WR01X10915
...
71
MOTOR,FAN ,115 V GEH-WR60X10293
...
74
CONTROL-TEMPERATURE GEH-WR55X23522
...
76
INSULATOR GEH-WR2X9500
...
82
SHELF,12.50 X 27.88 ,WIR GEH-WR71X23546
...
87
FAN BLADE GEH-WR60X23527
...
90
STOP-BASKET GEH-WR02X11446
...
93
SCREW, 8-18AB X.470 QX" GEH-WR01X10958
...
96
SCREW,RWHD ,8-32A X 0.50 GEH-WR02X12764
...
97
BRACKET,FAN MOTOR MOUNT GEH-WR02X12686

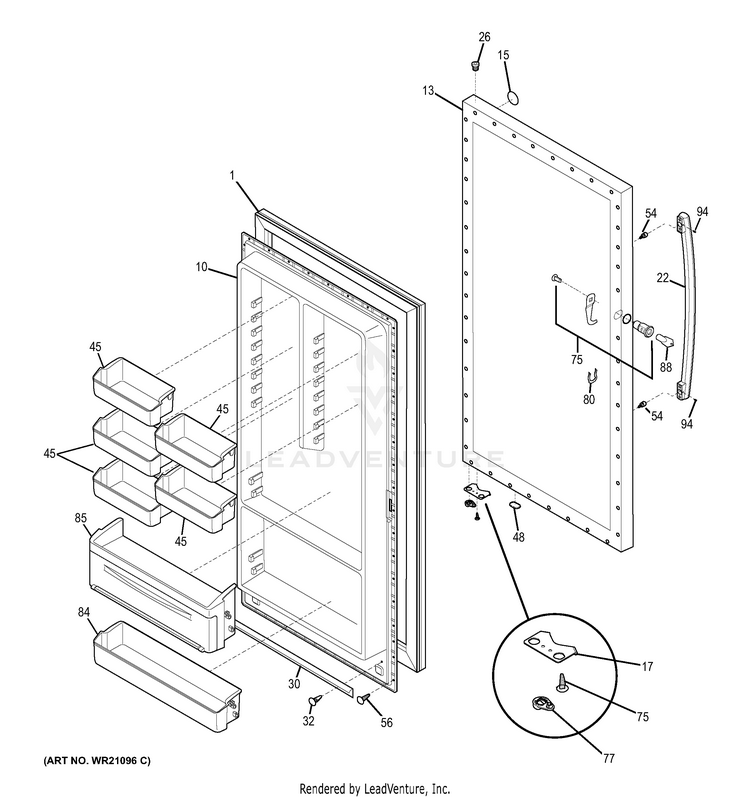

DOOR

...
...
1
GASKET-DOOR,WHITE GEH-WR24X23529
...
10
PANEL,INNER GEH-WR77X23540
...
13
PANEL-OUTER DOOR,WHITE GEH-WR78X23541
...
15
NAMEPLATE GEH-WR04X23538
...
17
DOOR STOP GEH-WR02X23525
...
22
HANDLE,GE ,METAL GEH-WR12X23532
...
26
BEARING,HINGE ,BLACK ,TO GEH-WR02X23506
...
30
GASKET,SECONDARY GEH-WR14X23528
...
32
CLIP, PANEL MTG GEH-WR01X10916
...
45
BIN DOOR, 2-LITER GEH-WR17X13122
...
48
PLUG-BUTTON,DOOR BASE GEH-WR02X23542
...
54
SCREW HOURGLASS GEH-WR01X11042
...
56
SCREW,PH TRUSS HEAD ,8-1 GEH-WR01X10797
...
75
SCREW, DOOR STOP MTG, FH GEH-WR02X12989
...
77
CLOSER,BEARING HINGE GEH-WR02X23518
...
80
CLIP, SPRING GEH-WR01X10870
...
84
BIN-DOOR,GALLON GEH-WR17X23507
...
85
BIN DOOR,W/LID GEH-WR71X11053
...
88
KEY GEH-WR05X10005
...
94
SCREW-SET GEH-WR01X10922

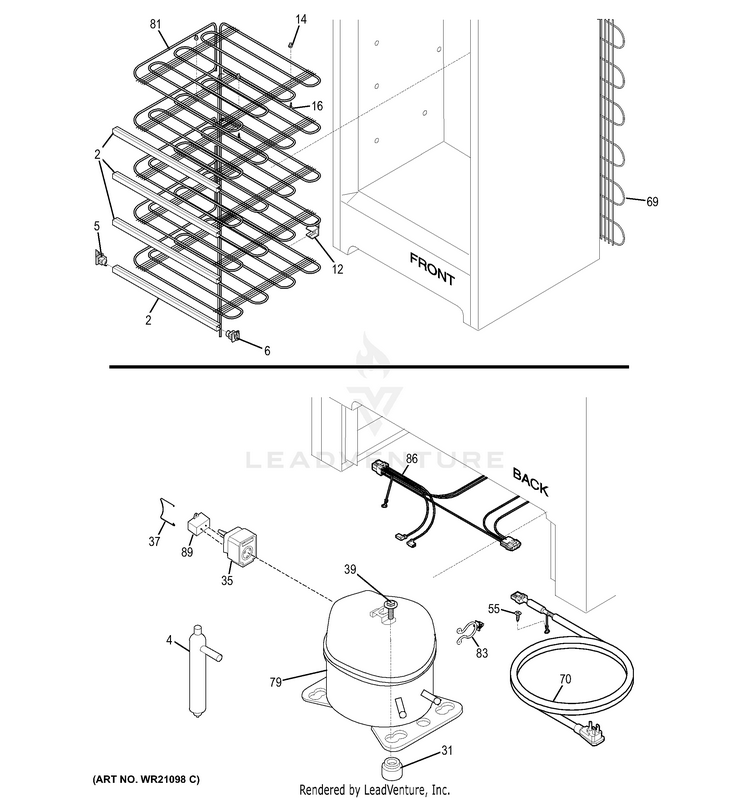

MACHINE COMPARTMENT

...
...
2
TRIM-SHELF GEH-WR38X10299
...
4
DRIER-FILTER GEH-WR86X10067
...
5
SUPPORT GEH-WR2X7622
...
6
SUPPORT GEH-WR2X7621
...
12
SUPPORT-REAR SHELF GEH-WR02X10053
...
14
GROMMET SPAC GEH-WR1X2182
...
16
SCREW,HEX SEMS ,8-18AB X GEH-WR01X10784
...
35
CONTROLLER,COMPRESSOR GEH-WR07X23521
...
37
DRAIN GEH-WR17X23526
...
39
SCREW COMP. MTG GEH-WR01X10999
...
69
CONDENSER GEH-WR84X23520
...
70
CORD,POWER GEH-WR23X23523
...
79
COMPRESSOR,DGK57C GEH-WR87X23519
...
81
EVAPORATOR,TUBING ASM GEH-WR85X10132
...
83
CLIP, WIRE GEH-WR01X10931
...
86
HARNESS-MAIN, W/LIGHT GEH-WR23X10634
...
89
CAPACITOR-RUN GEH-WR62X23515
