GE FUM21DHBRWW Freezer

Model: FUM21DHBRWW

Save
 Part Not Listed?Part Not Listed?
product name

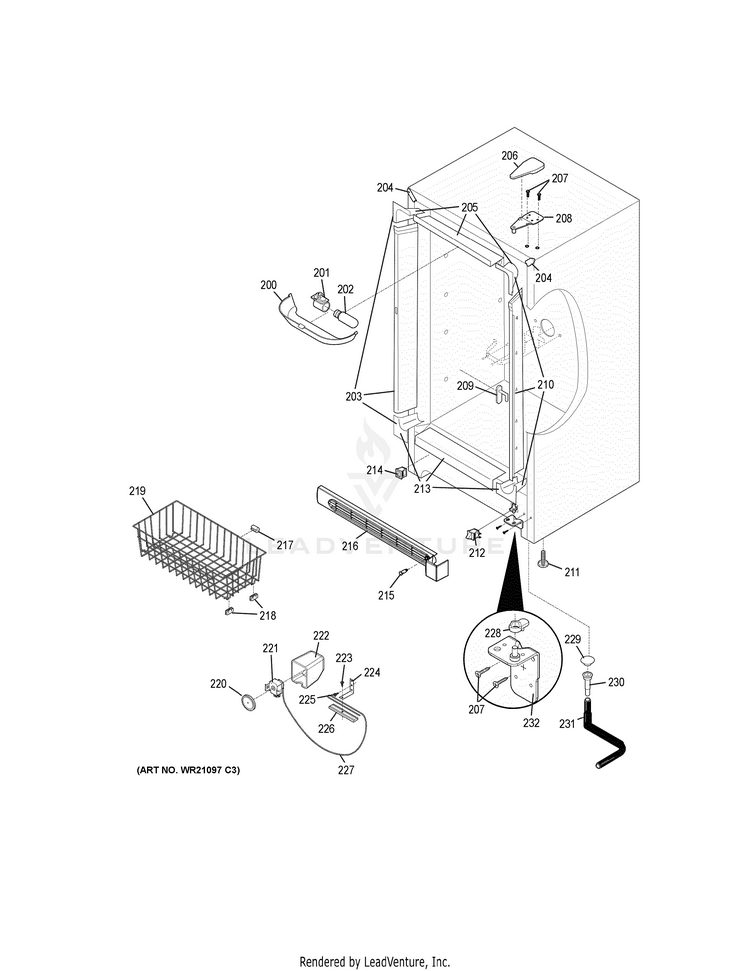

CABINET

...
...
200
SHIELD-LIGHT GEH-WR02X12994
...
201
LIGHT SOCKET GEH-WR23X10690
...
202
LIGHT BULB/LAMP GEH-WR01X23536
...
203
BREAKER GEH-WR40X23511
...
204
TRIM-CABINET CORNER, WHI GEH-WR02X13348
...
205
BREAKER,TOP GEH-WR40X23513
...
206
COVER-HINGE GEH-WR02X12689
...
207
SCREW BOTTOM HINGE GEH-WR01X10997
...
208
HINGE-UPPER GEH-WR12X10963
...
209
STOP-BASKET GEH-WR02X11446
...
210
BREAKER,U21 ,W/LOCK GEH-WR40X23514
...
211
FOOT ADJ. GEH-WR2X9485
...
212
SWITCH LIGHT GEH-WR23X10303
...
213
BREAKER,BOTTOM GEH-WR40X23512
...
214
VALVE, BREATHER GEH-WR86X10064
...
215
LIGHT SIGNAL,ROUND ,GREE GEH-WR23X23537
...
216
GRILLE,W/SIGNAL LIGHT GEH-WR74X23560
...
217
BUMPER GEH-WR2X6361
...
218
GLIDE-BASKET GEH-WR02X23530
...
219
BASKET GEH-WR21X23505
...
220
COLD CONTROL KNOB GEH-WR02X10860
...
221
CONTROL-TEMPERATURE GEH-WR55X23522
...
222
COVER-CONTROL HOUSING GEH-WR02X12316
...
223
SCREW,RWHD ,8-32A X 0.50 GEH-WR02X12764
...
224
BRACKET,CONTROL GEH-WR02X23508
...
225
SCREW,TYPE A ,10-24 X 3/ GEH-WR01X10796
...
226
CLAMP CAP TUBE GEH-WR02X11441
...
227
INSULATOR GEH-WR2X9500
...
228
RAMP,DOOR CLOSER GEH-WR02X23543
...
229
PLUG DRAIN GEH-WR02X10073
...
230
DRAIN GEH-WR17X23526
...
231
HOSE-DRAIN GEH-WR17X11418
...
232
HINGE,1/2" PIN ,BOTTOM R GEH-WR12X23534

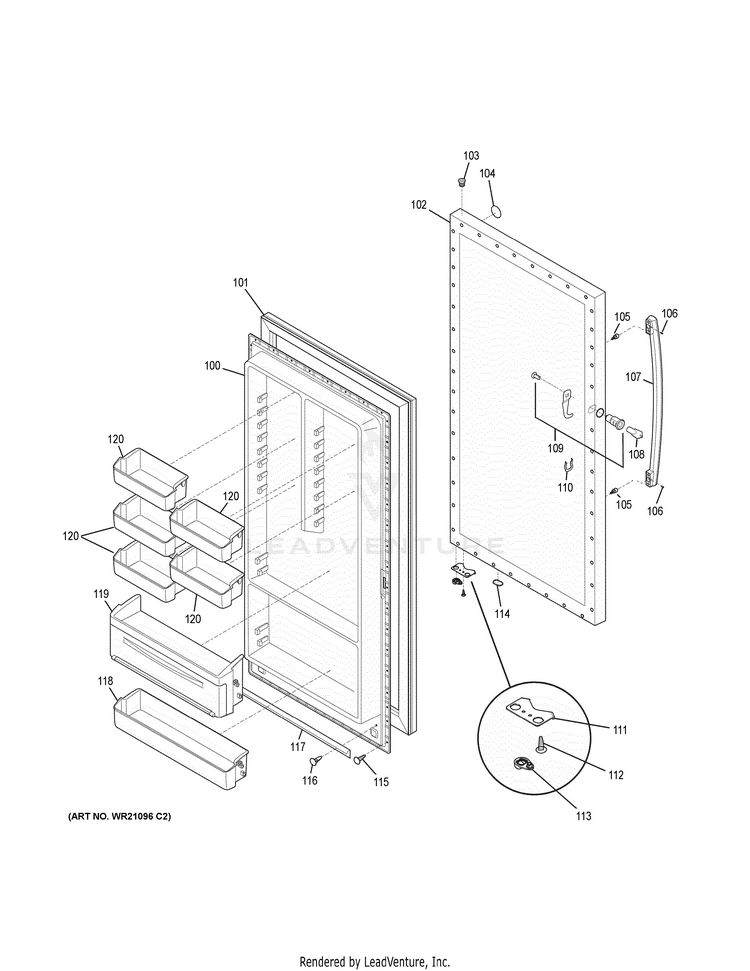

DOOR

...
...
100
PANEL,INNER GEH-WR77X23540
...
101
GASKET-DOOR,WHITE GEH-WR24X23529
...
102
PANEL-OUTER DOOR,WHITE GEH-WR78X23541
...
103
BEARING,HINGE ,BLACK ,TO GEH-WR02X23506
...
104
NAMEPLATE GEH-WR04X23538
...
105
SCREW-SHOULDER, #10 AB, GEH-WR01X10873
...
106
SCREW-SET GEH-WR01X10922
...
107
HANDLE,GE ,METAL GEH-WR12X23532
...
107
HANDLE,INSTALL KIT GEH-WR12X23533
...
108
KEY GEH-WR05X10005
...
109
LOCK ASSY GEH-WR05X10038
...
110
CLIP, SPRING GEH-WR01X10870
...
111
DOOR STOP GEH-WR02X23525
...
112
CLOSER,BEARING HINGE GEH-WR02X23518
...
113
SCREW, DOOR STOP MTG, FH GEH-WR02X12989
...
114
PLUG-BUTTON,DOOR BASE GEH-WR02X23542
...
115
SCREW,PH TRUSS HEAD ,8-1 GEH-WR01X10797
...
116
CLIP, PANEL MTG GEH-WR01X10916
...
117
GASKET,SECONDARY GEH-WR14X23528
...
118
BIN-DOOR,GALLON GEH-WR17X23507
...
119
BIN DOOR,W/LID GEH-WR71X11053
...
119
BIN-DOOR, W/LID GEH-WR71X10849
...
120
BIN DOOR, 2-LITER GEH-WR17X13122

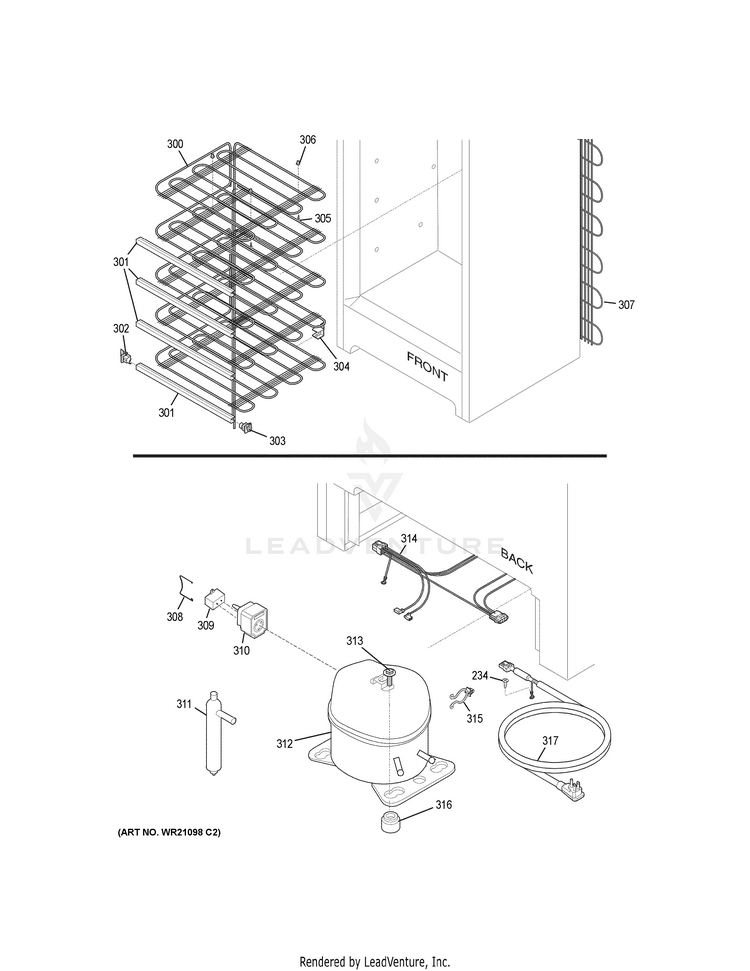

MACHINE COMPARTMENT

...
...
300
EVAPORATOR,TUBING ASM GEH-WR85X10132
...
301
TRIM-SHELF GEH-WR38X10299
...
302
SUPPORT GEH-WR2X7622
...
303
SUPPORT GEH-WR2X7621
...
304
SUPPORT-REAR SHELF GEH-WR02X10053
...
305
SCREW,HEX SEMS ,8-18AB X GEH-WR01X10784
...
306
GROMMET SPAC GEH-WR1X2182
...
307
CONDENSER EXT GEH-WR84X5007
...
308
CLIP,CONTROLLER GEH-WR02X12032
...
309
CAPACITOR-RUN GEH-WR62X23515
...
310
CONTROLLER,COMPRESSOR GEH-WR07X23521
...
311
DRIER-FILTER GEH-WR86X10067
...
312
COMPRESSOR,DGK57C GEH-WR87X23519
...
313
SCREW COMP. MTG GEH-WR01X10999
...
314
HARNESS-MAIN, W/LIGHT GEH-WR23X10634
...
315
CLIP, WIRE GEH-WR01X10931
...
316
SCREW, HWH, 10-24 X 0.50 GEH-WR01X10888
...
317
CORD,POWER GEH-WR23X23523
...
...
...
