product name

GE FUF17DHBRWW Freezer

Model: FUF17DHBRWW

Save
 Part Not Listed?Part Not Listed?
product name

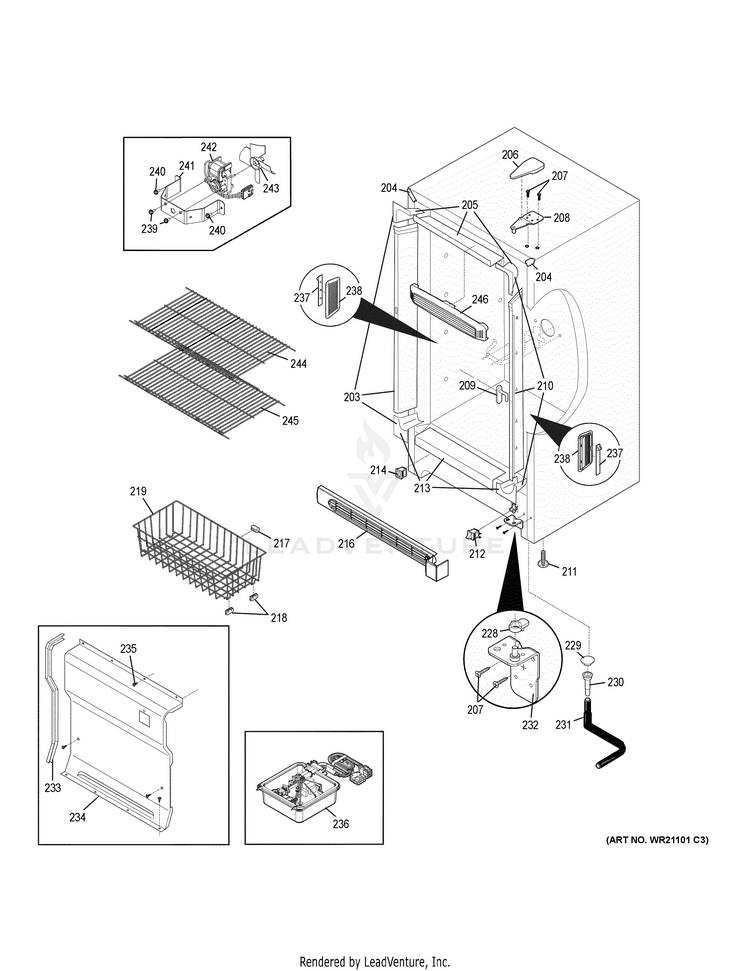

CABINET

...
...
203
BREAKER GEH-WR40X24041
...
204
TRIM-CABINET CORNER, WHI GEH-WR02X13348
...
205
BREAKER,TOP GEH-WR40X23513
...
206
COVER-HINGE GEH-WR02X12689
...
207
SCREW BOTTOM HINGE GEH-WR01X10997
...
208
HINGE-UPPER GEH-WR12X10963
...
208
HINGE-UPPER GEH-WR12X10891
...
209
STOP-BASKET GEH-WR02X11446
...
210
BREAKER,W/LOCK GEH-WR40X24040
...
211
LEG,LEVELING GEH-WR02X24034
...
212
SWITCH LIGHT GEH-WR23X10303
...
213
BREAKER,BOTTOM GEH-WR40X23512
...
214
VALVE, BREATHER GEH-WR86X10064
...
216
GRILLE/KICKPLATE GEH-WR74X24021
...
217
BUMPER GEH-WR2X6361
...
218
GLIDE-BASKET GEH-WR02X23530
...
219
BASKET,BOTTOM GEH-WR21X24035
...
228
RAMP,DOOR CLOSER GEH-WR02X23543
...
229
PLUG-DRAIN GEH-WR01X10031
...
230
DRAIN GEH-WR17X23526
...
231
HOSE-DRAIN 17 50" GEH-WR17X4120
...
232
HINGE,1/2" PIN ,BOTTOM R GEH-WR12X23534
...
233
GASKET-EVAP COVER GEH-WR14X10293
...
234
COVER-EVAPORATOR GEH-WR17X12665
...
235
SCREW, 8-18AB X.470 QX" GEH-WR01X10958
...
236
CONTROL BOARD,ASSEMBLY , GEH-WR09X24018
...
237
LIGHT BOARD,3 LED CLUSTE GEH-WR23X24025
...
238
LENS,3 LED CLUSTER GEH-WR23X24024
...
239
SCREW,HEX WASHER HEAD ,8 GEH-WR01X10798
...
240
SCREW, #8, 18X.63, SELF GEH-WR01X10915
...
241
BRACKET FAN GEH-WR2X9496
...
242
MOTOR,FAN ,115 V GEH-WR60X10293
...
243
FAN BLADE GEH-WR60X24020
...
244
SHELF,16.69 X 23.88 ,WIR GEH-WR71X24032
...
245
SHELF,14.50 X 23.88 ,WIR GEH-WR71X24038
...
246
BAFFLE, AIR GEH-WR17X12658

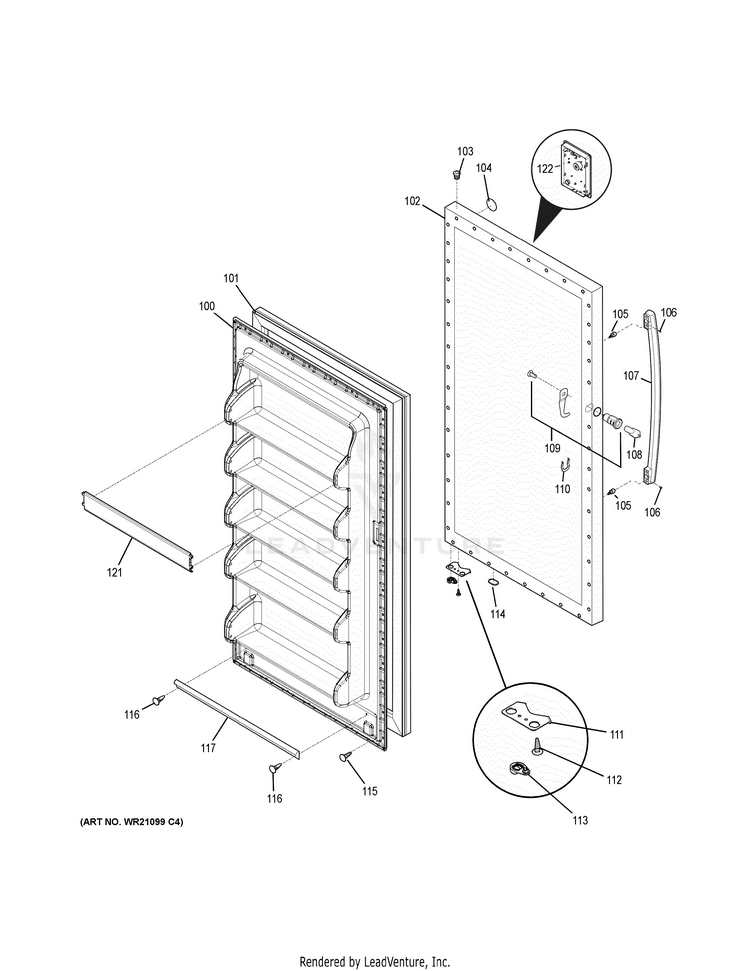

DOOR

...
...
100
PANEL-INNER DOOR,FRZR GEH-WR77X24037
...
101
GASKET-DOOR,WHITE GEH-WR24X24039
...
102
PANEL-,OUTER DOOR ,WHITE GEH-WR78X24036
...
103
BEARING,HINGE ,BLACK ,TO GEH-WR02X23506
...
104
NAMEPLATE GEH-WR04X23538
...
105
SCREW-SHOULDER, #10 AB, GEH-WR01X10873
...
106
SCREW-SET GEH-WR01X10922
...
107
HANDLE,GE ,METAL GEH-WR12X23532
...
107
HANDLE,INSTALL KIT GEH-WR12X23533
...
108
KEY GEH-WR05X10005
...
109
LOCK ASSY GEH-WR05X10038
...
110
CLIP, SPRING GEH-WR01X10870
...
111
DOOR STOP GEH-WR02X23525
...
112
SCREW, DOOR STOP MTG, FH GEH-WR02X12989
...
113
CLOSER,BEARING HINGE GEH-WR02X23518
...
114
PLUG-BUTTON,DOOR BASE GEH-WR02X23542
...
115
SCREW,PH TRUSS HEAD ,8-1 GEH-WR01X10797
...
116
CLIP, PANEL MTG GEH-WR01X10916
...
117
GASKET,SECONDARY GEH-WR14X23528
...
121
RACK,DOOR GEH-WR17X24031
...
122
CONTROL,ELECTRONIC GEH-WR09X24017

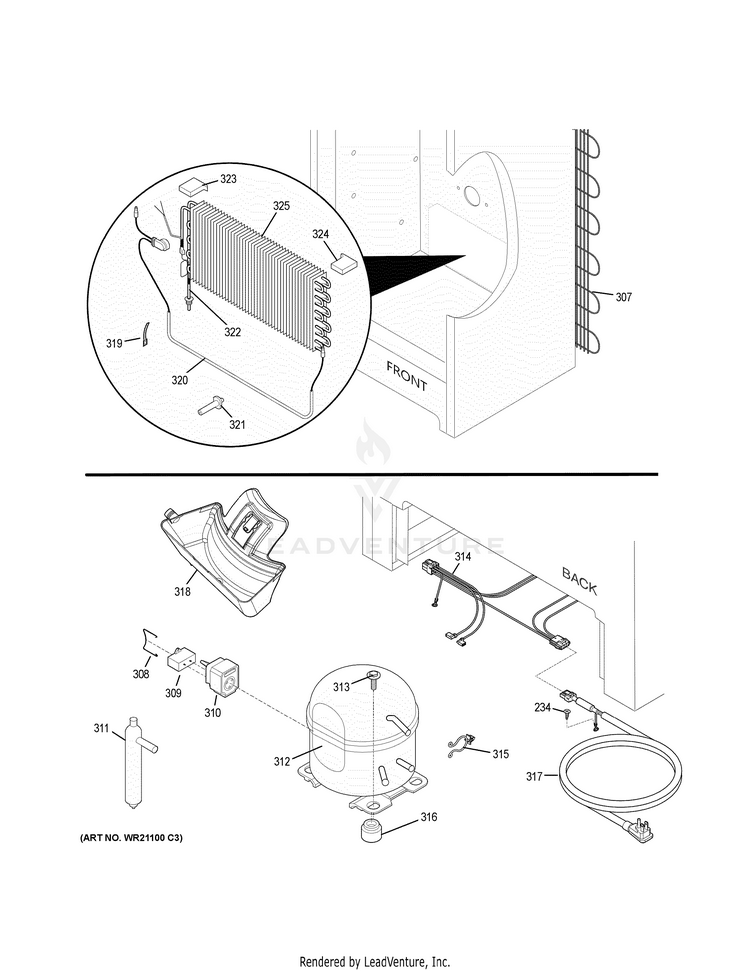

MACHINE COMPARTMENT

...
...
234
COVER-EVAPORATOR GEH-WR17X12665
...
307
CONDENSER EXT GEH-WR84X5007
...
308
CLIP,CONTROLLER GEH-WR02X12032
...
309
CAPACITOR-RUN GEH-WR62X23515
...
310
CONTROLLER,COMPRESSOR GEH-WR07X23521
...
311
DRIER-FILTER GEH-WR86X10067
...
312
COMPRESSOR,DGK57C GEH-WR87X23519
...
313
SCREW COMP. MTG GEH-WR01X10999
...
314
HARNESS,MAIN GEH-WR23X24023
...
315
CLIP, WIRE GEH-WR01X10931
...
316
SCREW, HWH, 10-24 X 0.50 GEH-WR01X10888
...
317
CORD,POWER GEH-WR23X23523
...
318
PAN-DRAIN GEH-WR02X24027
...
319
STRAP-EVAP/HEATER,ALUMIN GEH-WR02X11458
...
320
DEFROST HEATER GEH-WR51X24019
...
321
SUPPORT, EVAPORATOR MTG GEH-WR02X12991
...
322
HEAT EXCHANGER, SUCT/CAP GEH-WR86X10052
...
323
INSULATOR-EVAP, STYROFOA GEH-WR02X13243
...
324
INSULATOR-EVAP, STYROFOA GEH-WR02X13242
...
325
EVAPORATOR GEH-WR85X10157
...
...
...
