GE FUF14SVGRWW Freezer

Model: FUF14SVGRWW

Save Part Not Listed?
product name

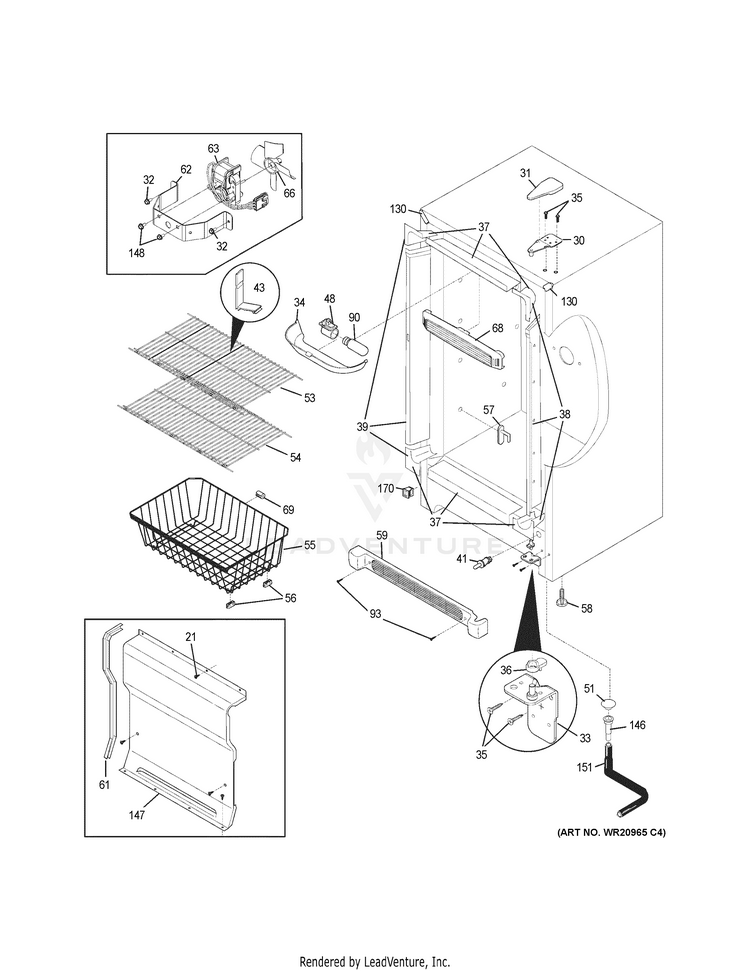

CABINET

...
...
21
SCREW, 8-18AB X.470 QX" GEH-WR01X10958
...
30
HINGE-UPPER GEH-WR12X10963
...
31
COVER-HINGE GEH-WR02X12689
...
32
SCREW, #8, 18X.63, SELF GEH-WR01X10915
...
33
HINGE-BOTTOM, STEPPED PI GEH-WR12X10964
...
34
SHIELD-LIGHT GEH-WR02X12994
...
35
SCREW, TAMPER PROOF, 1/4 GEH-WR01X10874
...
36
RAMP DOOR CLOSURE GEH-WR02X10393
...
37
BREAKER KIT W/CORNERS,28 GEH-WR40X10061
...
38
BREAKER KIT W/CORNERS,NO GEH-WR40X10062
...
39
BREAKER KIT W/CORNERS,IN GEH-WR40X10063
...
41
SWITCH LIGHT GEH-WR23X10303
...
43
DIVIDER, WHITE, WIRE SHE GEH-WR02X12993
...
48
LIGHT SOCKET GEH-WR23X10302
...
51
PLUG-DRAIN GEH-WR01X10031
...
53
SHELF, 16.69 X 23.88, WH GEH-WR71X10907
...
54
SHELF, LOWER, WH GEH-WR71X10921
...
55
BOTTOM BASKET GEH-WR21X10236
...
56
SLIDE BASKET GEH-WR02X6808
...
57
STOP-BASKET GEH-WR02X11446
...
58
LEVELING LEG ADJUSTABLE GEH-WR02X9485
...
59
GRILLE/KICKPLATE, 28", W GEH-WR74X10299
...
61
GASKET EVAP COVER GEH-WR14X0489
...
62
BRACKET,FAN MOTOR MOUNT GEH-WR02X12686
...
63
MOTOR,FAN ,115 V GEH-WR60X10293
...
66
WR60X139 GEH-WR60X5082
...
68
BAFFLE, AIR GEH-WR17X12658
...
69
BUMPER BASKET GEH-WR02X6361
...
90
LIGHT BULB/LAMP GEH-PURCH. LOCAL1
...
93
SCREW,PH TRUSS HEAD ,8-1 GEH-WR01X10797
...
130
TRIM-CABINET CORNER, WHI GEH-WR02X13348
...
146
DRAIN GEH-WR02X6353
...
147
COVER-EVAPORATOR GEH-WR17X12657
...
148
SCREW,HEX WASHER HEAD ,8 GEH-WR01X10798
...
151
HOSE-DRAIN GEH-WR17X12652
...
170
VALVE, BREATHER GEH-WR86X10064

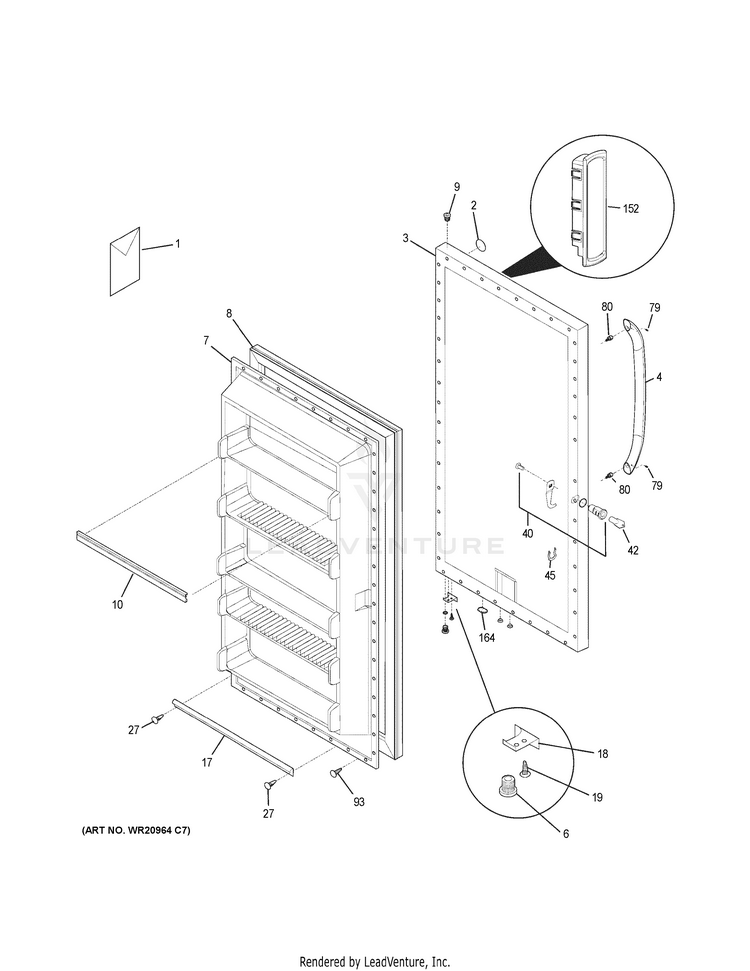

DOOR

...
...
1
USE & CARE MANUAL GEH-49-60567
...
2
NAMEPLATE GEH-WR04X10159
...
3
PANEL-OUTER DOOR, WHITE GEH-WR78X12591
...
4
HANDLE DOOR GEH-WR12X11025
...
6
BEARING-HINGE BOTTOM GEH-WR02X12310
...
7
PANEL-INNER DOOR,FRZR GEH-WR77X10059
...
8
GASKET, DOOR SEAL, WHIT GEH-WR24X10253
...
9
BEARING,HINGE ,TOP GEH-WR02X12067
...
10
RACK-DOOR,(5) GEH-WR17X11923
...
17
GASKET, SECONDARY GEH-WR14X10320
...
18
DOOR STOP, CHROME, RH/LH GEH-WR02X12995
...
19
SCREW, DOOR STOP MTG, FH GEH-WR02X12989
...
27
CLIP, PANEL MTG GEH-WR01X10916
...
40
LOCK ASSY GEH-WR05X10038
...
42
KEY GEH-WR05X10005
...
45
CLIP, SPRING GEH-WR01X10870
...
79
SCREW-SET GEH-WR01X10922
...
80
SCREW HOURGLASS GEH-WR01X11042
...
93
SCREW,PH TRUSS HEAD ,8-1 GEH-WR01X10797
...
152
CONTROL EZ SET GE 115V W GEH-WR55X11084
...
164
PLUG BUTTON BASE DOOR GEH-WR02X10087

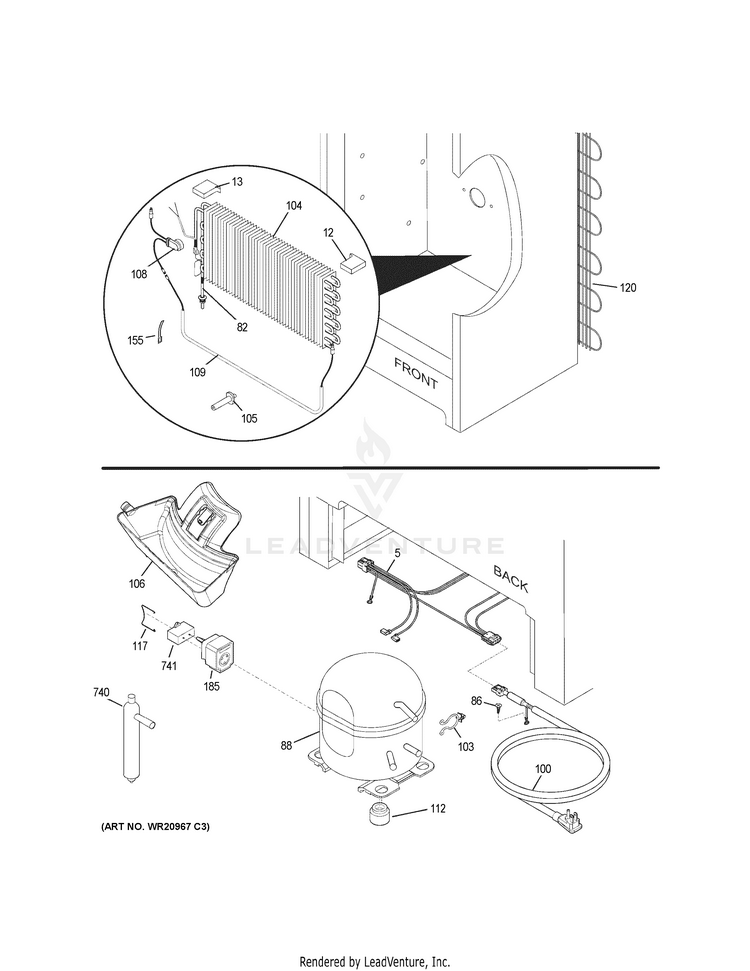

MACHINE COMPARTMENT

...
...
5
HARNESS, MAIN GEH-WR23X10756
...
12
INSULATOR-EVAP, STYROFOA GEH-WR02X13242
...
13
INSULATOR-EVAP, STYROFOA GEH-WR02X13243
...
82
HEAT EXCHANGER GEH-WR86X10007
...
86
SCREW,RWHD ,8-32A X 0.50 GEH-WR02X12764
...
88
COMPRESSOR, W/O ELECTRIC GEH-WR87X10194
...
100
CORD-POWER GEH-WR23X10724
...
103
CLIP, WIRE GEH-WR01X10931
...
104
EVAPORATOR GEH-WR85X10156
...
105
SUPPORT, EVAPORATOR MTG GEH-WR02X12991
...
106
PAN-DRAIN GEH-WR02X13712
...
108
THERMOSTAT GEH-WR50X10031
...
109
HEATER DEFROST GEH-WR51X10059
...
112
GROMMET GEH-WR01X5134
...
117
CLIP,CONTROLLER GEH-WR02X12032
...
120
CONDENSER EXT GEH-WR84X5007
...
155
STRAP-EVAP/HEATER,ALUMIN GEH-WR02X11458
...
185
CONTROLLER, COMPRESSOR GEH-WR07X10119
...
740
DRIER-FILTER GEH-WR86X10067
...
741
CAPACITOR-RUN, 15 MF GEH-WR62X10079
