GE DSKS433EB6WW Electric Dryer

Model: DSKS433EB6WW

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

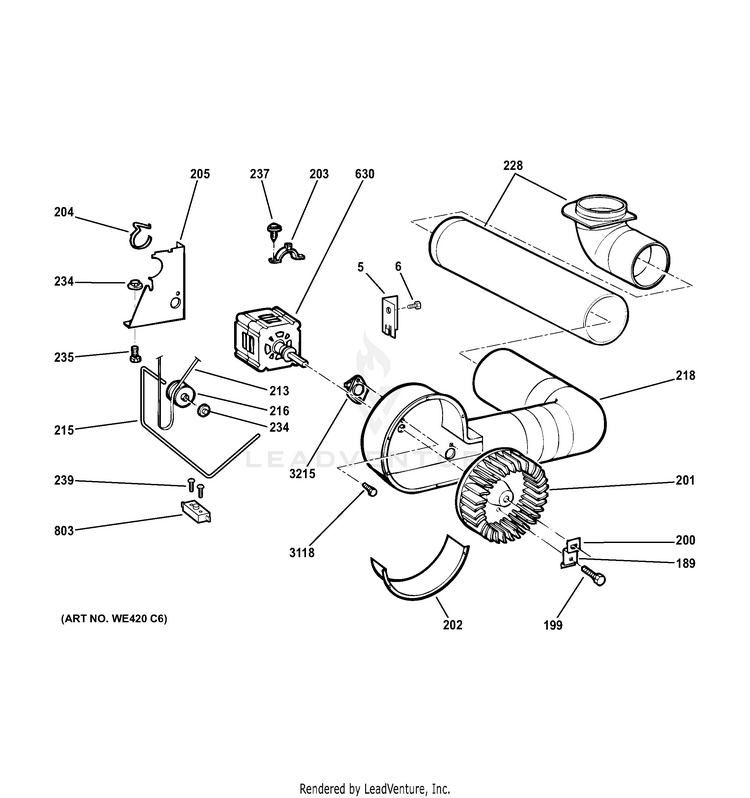

BLOWER & MOTOR

...
...
5
BRACKET BELT SWITCH GEH-WE1M493
...
6
SCREW GEH-WE2M154
...
189
CLAMP GEH-WE1M984
...
199
SCREW GEH-WE2M98
...
200
CLAMP GEH-WE1M983
...
201
WHEEL BLOWER GEH-WE16X0016
...
202
BAFFLE GEH-WE01X20516
...
202
BAFFLE BLOWER HOUSING GEH-WE1X689
...
203
STRAP MOTOR GEH-WE13X200
...
204
MOTOR BRACKET GEH-WE01X0921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12M24
...
215
IDLER ARM GEH-WE3M18
...
216
PULLEY GEH-WE12X20517
...
218
BLOWER HOUS & ELBOW ASM GEH-WE14X23275
...
228
ELBOW GEH-WE14M41
...
234
CAP NUT GEH-WE2M96
...
235
SCREW GEH-WE00X86
...
237
SCREW GEH-WE2M187
...
239
SCREWS GEH-WE2M167
...
630
MOTOR AND PULLEY GEH-WE17X23619
...
3118
SCREW # 10 GEH-WE2M174
