GE DSE26JSEDCSS Refrigerator

Model: DSE26JSEDCSS

Back To Assemblies

Save Part Not Listed?
product name

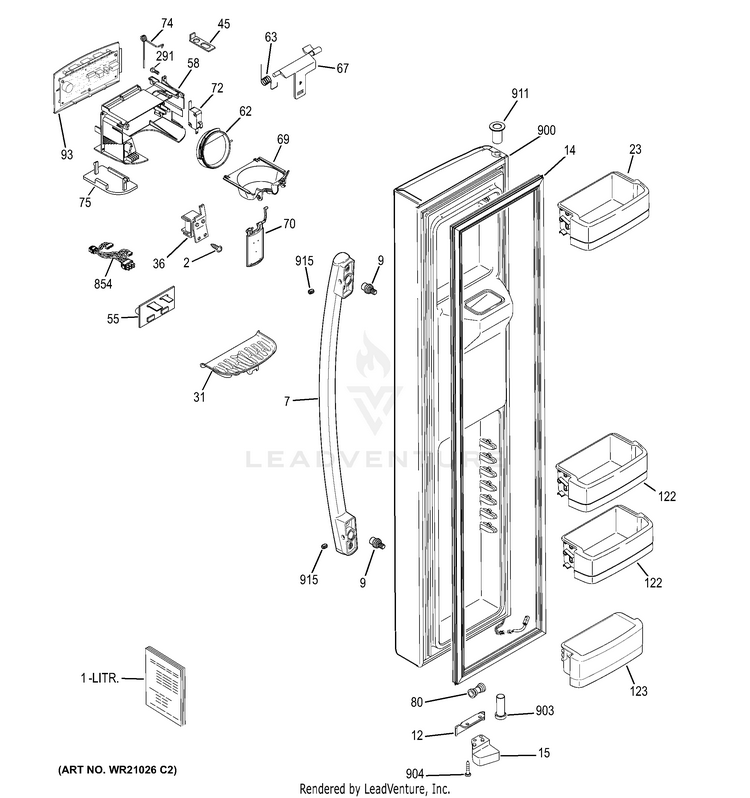

FREEZER DOOR

...
...
1
DOOR OUTER BOW FF SS GEH-200D1330G049
...
1
DOOR ASM FZ BOW SS GEH-200D1684G042
...
1
SPOUT WATER FILL GEH-200D2680P001
...
1
DOOR PREFOAM ASM FZ BOW GEH-200D1968G349
...
1
DOOR PREFOAM ASM FF BOW GEH-200D1967G199
...
1
DOOR ASM FF BOW SS GEH-200D1685G054
...
1
DOOR OUTER BOW FZ GEH-225D5513G019
...
1
HARNESS COMM SUB ASM GEH-200D7669G006
...
1
CHUTE ICE GEH-200D4627P001
...
1
SLEEVE VINYL GEH-523891P228
...
1
PM GUIDE OWNERS GEH-49-60646
...
1
COUPON DOOR SXS GEH-225D5623P005
...
1
PM MINI WIRING MANUAL GEH-31-51809
...
1
COUPON DOOR SXS GEH-225D5623P006
...
2
SCR 4-10 PL PNP 3/4 SS GEH-WR02X12257
...
2
HOUSING GEH-8911412P016
...
2
DOOR INNER FF GEH-200D1347P001
...
2
CAP DOOR BOW FZ BTM GEH-186D1957P009
...
2
CAP DOOR BOW FF BTM GEH-186D1954P009
...
2
GASKET ICE CHUTE GEH-238C4323P003
...
2
THIMBLE DOOR BTM FZ GEH-238C1160P003
...
2
TUBE PLASTIC FORMED GEH-200D1664P004
...
2
THIMBLE DOOR GEH-238C1017P024
...
2
DOOR INNER FZ GEH-200D7517P001
...
7
ARC HANDLE ASM GEH-WR12X20441
...
7
LEAD ASM (REF 8911402) GEH-WK8BX75GH1KO
...
7
DISPENSER RECESS GEH-200D6110P016
...
9
ANCHOR SCREW GEH-524977P01
...
9
FASTENER DOOR HANDLE GEH-WR01X11007
...
9
LEAD ASM (REF 8911402) GEH-WK4WX19GKOX3
...
12
GROMMET ELECT GEH-197D2513P001
...
12
STOP DOOR BLACK GEH-WR02X10782
...
12
TAPE FOAM GEH-203C2552P025
...
14
GASKET DOOR FZ BK** GEH-WR24X10158
...
15
CAM CLOSURE FF BLACK GEH-WR02X10780
...
15
HARNESS COMM FZ DOOR GEH-200D3558G041
...
23
MODULE SHELF FZ GEH-WR71X10953
...
31
GRILL RECESS GEH-WR17X12910
...
36
SOLENOID ASM GEH-WR62X10055
...
45
RETAINER RECESS DOOR GEH-WR02X8818
...
45
POLYPROPYLENE TAPE GEH-238C2226P016
...
55
BOARD ASM DISP LIGHTING GEH-WR55X10899
...
58
HOUSING SHIELD DISP GEH-WR17X12900
...
62
DOOR RECESS ASM GEH-WR17X11653
...
63
SPRING RECESS DOOR GEH-WR02X10585
...
67
CRANK DOOR RECESS GEH-WR17X10706
...
69
FUNNEL ICE DISP GEH-WR17X12120
...
70
PADDLE ASM GEH-WR17X20449
...
72
SWITCH GEH-WR23X10224
...
74
SPRING TORSION GEH-WR02X12256
...
75
COVER LED HOUSING SHIELD GEH-WR02X13405
...
80
UNION CONNECTOR GEH-WR02X11330
...
93
INTERFACE DISPENSER ASM GEH-WR55X20689
...
122
MODULE SHELF FZ GEH-WR71X10291
...
123
MODULE SHELF FZ FIXED GEH-WR71X10501
...
291
SCREW 8-10 PL PNP 1/2 S GEH-WR01X10221
...
854
HARNESS RECESS DISP GEH-WR23X10695
...
900
DOOR FOAM ASM FZ GEH-WR78X22105
...
903
THIMBLE DOOR BTM FZ BLAC GEH-WR01X10234
...
904
SCR 10-16 GEH-WR01X10582
...
911
THIMBLE DOOR GEH-WR01X10956
...
915
SET SCREW GEH-WR01X11014
