GE DPVH890EJ1MG Dryer Electric

Model: DPVH890EJ1MG

Back To Assemblies

Save Part Not Listed?
product name

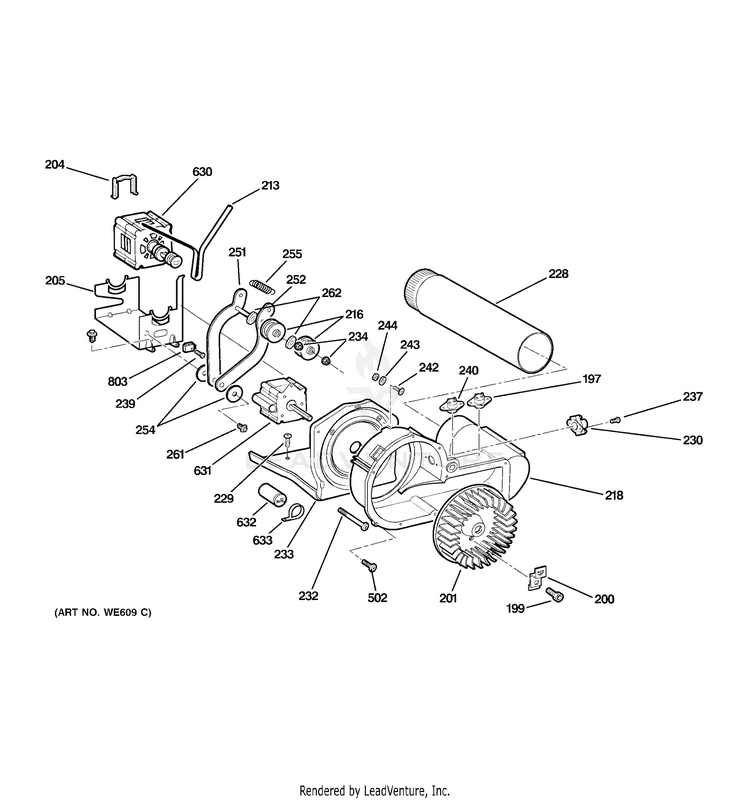

BLOWER & DRIVE ASSEMBLY

...
...
197
THERMOSTAT GEH-WE4M420
...
199
SCREW GEH-WE2M142
...
200
BLOWER CLAMP GEH-WE00M111
...
200
BLOWER CLAMP GEH-WE00M112
...
201
BLOWER WHEEL GEH-WE16M15
...
204
MOTOR BRACKET GEH-WE01X0921
...
205
MOTOR SUPPORT GEH-WE13M43
...
213
BELT DRIVE GEH-WE12M30
...
216
PULLEY BELT DRIVE GEH-WE12M32
...
218
BLOWER HOUSING GEH-WE14M125
...
228
EXHAUST DUCT GEH-WE14M107
...
229
SCREW GEH-WE2M200
...
230
T-STAT , OUTLET BKUP ORG GEH-WE4M300
...
232
SCREW GEH-WE2M202
...
233
ABSORBER-FOAM GEH-WD2M174
...
233
MOTOR PLATE GEH-WE13M47
...
234
CAP NUT GEH-WE2M96
...
237
SCREW GEH-WE1M280
...
239
SCREW GEH-WE2M236
...
240
OUTLET CNTRL THERMISTOR GEH-WE4M448
...
242
SCREW GEH-WE2M229
...
243
INSULATED WASHER GEH-WE2M176
...
244
RUBBER GROMMET GEH-WE2M206
...
251
ARM & PIN LEFT ASM GEH-WE1M733
...
252
ARM & PIN RIGHT ASM GEH-WE1M734
...
254
NYLON WASHER GEH-WE2M234
...
255
SPRING IDLER GEH-WE1M735
...
261
IDLER PIVOT SCREW GEH-WE2M237
...
502
SCREW # 10 GEH-WE2M174
...
630
MTR & PULLY ASM DRM RVSE GEH-WE17M44
...
631
FOAM BLOWER MOTOR GEH-WE1M823
...
631
BLOWER MOTOR (W/CONTROL) GEH-WE17M45
...
632
CAPACITOR GEH-WE4M428
...
633
CAPACITOR HOLDER GEH-WE1M750
...
803
IDLER MICROSWITCH GEH-WE4M425
