GE DPVH890EJ1MG Dryer Electric

Model: DPVH890EJ1MG

Back To Assemblies

Save Part Not Listed?
product name

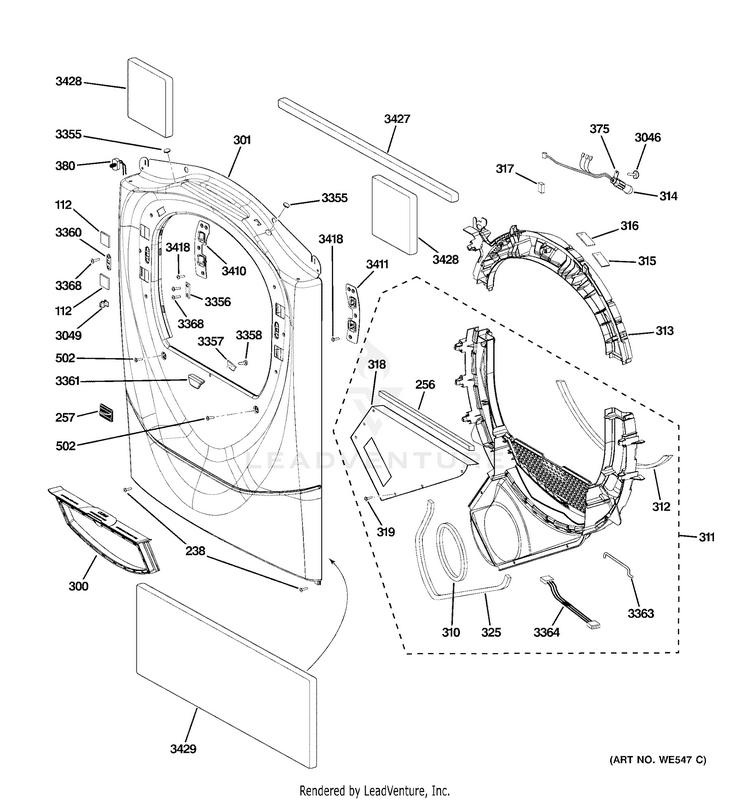

FRONT PANEL

...
...
112
FRNT OPNG PLUG DSRT SLVR GEH-WE1M730
...
238
SCREW GOLD GEH-WE2M243
...
256
FM GSKT TRP DUCT CVR-TOP GEH-WE1M738
...
257
FOAM BLOCK SPACER GEH-WE1M739
...
300
FILTER ASM GEH-WE18M34
...
301
FRONT INSULATION GEH-WE1M816
...
301
FRONT PANEL-GOLD GEH-WE20M370
...
310
GASKET (AIR-DUCT) GEH-WE9M41
...
311
TRAP DUCT COMPLETE ASM GEH-WE14M126
...
312
FELT GEH-WE9M38
...
313
TOP BEARING ASM W/FELTS GEH-WE14M127
...
314
LAMP GEH-WE4M305
...
315
SLIDE WHITE GEH-WE1M504
...
316
SLIDE DRUM - GREEN GEH-WE1M507
...
317
FELT CLEANING GEH-WE9M31
...
318
TRAP DUCT COVER GEH-WE1M740
...
319
SCREW GEH-WE2M173
...
325
FM GASKET AIR DUCT LONG GEH-WE1M737
...
375
SOCKET ASM W WIRE HARNES GEH-WE5M53
...
380
DOOR SWITCH GEH-WE4M335
...
502
SCREW # 10 GEH-WE2M174
...
3046
SCREW #8 GEH-WE2M196
...
3049
STRIKE DOOR GEH-WE01X1192
...
3355
PRONGUED PLUG BUTTON GEH-WE1M572
...
3356
STRIKE PLATE GEH-WE1M569
...
3357
NUT-STRIP DOOR GUIDE GEH-WE2M213
...
3358
SCREWS GEH-WE2M167
...
3360
STRIKE PLATE W/STRK HOLE GEH-WE1M570
...
3361
DOOR GUIDE GEH-WE1M755
...
3363
SENSOR RODS GEH-WE1M575
...
3364
HARNESS SENSORS GEH-WE5M54
...
3368
SCREW HINGE TO FRONT GEH-WE2M217
...
3410
HINGE BRACKET LEFT GEH-WE1M759
...
3411
HINGE BRACKET RIGHT GEH-WE1M760
...
3418
SCREW - HINGE BASE GEH-WE2M262
...
3427
INSULATION FRNT TOP BRNG GEH-WE1M861
...
3428
INSULATION PAD HINGES GEH-WE1M859
