GE DNCD450GGDWC Gas Dryer

Model: DNCD450GGDWC

Save Part Not Listed?
product name

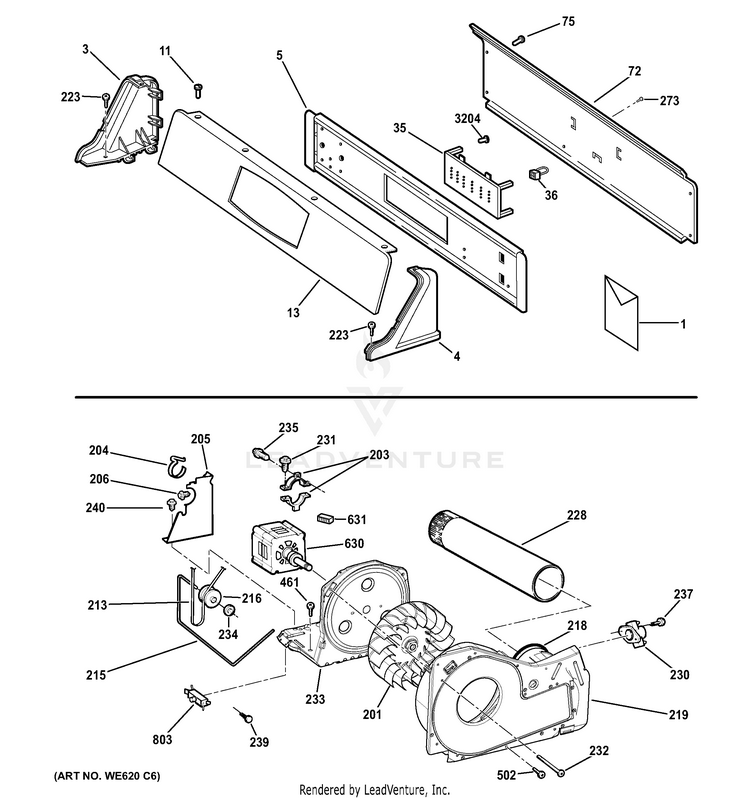

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

...
...
1
PM WIRING DIAGRAM GEH-31-16325
...
1
USE &CARE GEH-49-90507
...
1
INSTALLATION INSTRUCTIO GEH-31-16735
...
3
END CAP LH BK GEH-WE19M1451
...
4
END CAP RH BK GEH-WE19M1452
...
5
SUPPORT SWITCH GEH-WH46X10055
...
11
SCREW 8-18 AB FLT 9/16 S GEH-WH02X10089
...
13
SWITCH TRIM ASM. CHR & B GEH-WE19M1562
...
35
L3 ELECTRONIC MODULE GEH-WE4M296
...
36
HARNESS GEH-WD21X10069
...
72
PANEL BACK GEH-WE20M343
...
75
SCREW GEH-WE2M173
...
201
BLOWER WHEEL W/INSERT GEH-WE16M17
...
203
STRAP MOTOR GEH-WE13X200
...
204
STRAP MOTOR GEH-WE1X921
...
205
MOTOR SUPPORT GEH-WE13M39
...
206
SCREW GEH-WE2M200
...
213
BELT DRIVE GEH-WE12M33
...
215
IDLER ARM SPRING GEH-WE3M25
...
216
PULLEY IDLER GEH-WE12M8
...
218
GASKET SEAL GEH-WE1M473
...
219
BLOWER HOUSING ASM GEH-WE14X20247
...
223
SCREWS GEH-WE2M189
...
228
EXAUST PIPE GEH-WE14M90
...
230
THERMOSTAT OUTLET GEH-WE4M216
...
231
SCREW GEH-WE2M187
...
232
SCREW GEH-WE2M202
...
233
PLATE MOTOR GEH-WE13M65
...
234
CAP NUT GEH-WE2M96
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
237
SCREW GEH-WE2M154
...
239
SCREWS GEH-WE2M167
...
240
SCREW GEH-WE1M280
...
273
SCREW NO.8 ( GROUND ) GEH-WE2M228
...
461
SCREW GROUND GEH-WZ5X158
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR THRD SHAFT & PULLY GEH-WE17M37
...
631
CONNECTOR MOTOR GEH-WE1M650
...
803
SWITCH INTERLOCK GEH-WD21X557
...
3204
SCR GEH-WH2M270

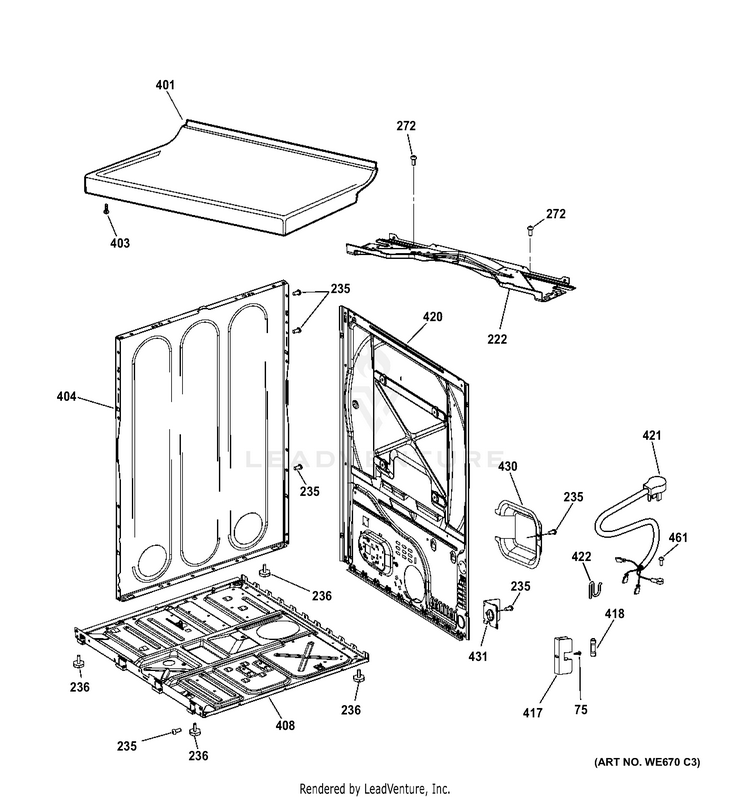

CABINET & TOP PANEL

...
...
75
SCREW GEH-WE2M173
...
222
BOTTOM COVER (E-COAT) GEH-WE20M494
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
236
LEVELLING FOOT GEH-WE1M1101
...
272
SCR 8-15 X 7/16 AB GEH-WE2M308
...
401
COVER WH GEH-WE20M286
...
403
SCREW #8 GEH-WE2M160
...
404
SIDE PANEL WHITE GEH-WE20X20092
...
408
CHASSIS BASE GEH-WE20M492
...
417
HOLDER FUSE GEH-WE1M1003
...
418
FUSE CCMR 30 AMP 120V GEH-WE1M1002
...
420
REAR PANEL GEH-WE20M539
...
421
CORD SET GEH-WE26M341
...
422
CLIP CORDSET GEH-WE1M155
...
430
TERM. BLOCK COVER GEH-WE1M1102
...
431
STRAIN RELIEF BRACKET GA GEH-WE01X20424
...
461
SCREW GROUND GEH-WZ5X158

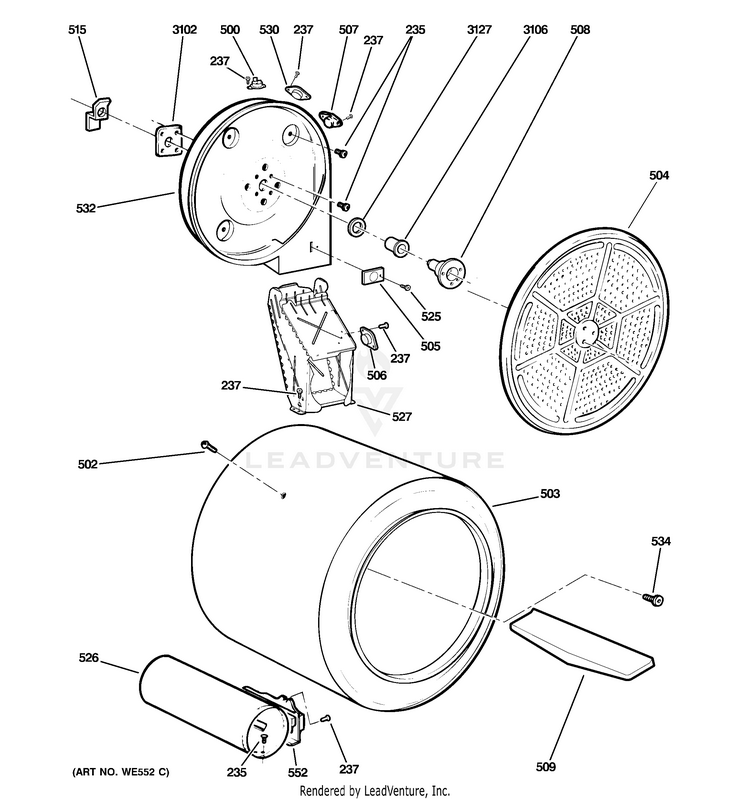

DRUM

...
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
237
SCREW GEH-WE2M154
...
500
THERMOSTAT HI-LIMIT GEH-WE4M137
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM 7 CU FT GEH-WE21M13
...
504
DEFLECTOR HEAT GEH-WE14M77
...
505
THERMOSTAT TRIMMER GEH-WE4M182
...
506
THERMOSTAT BIAS CTR INLT GEH-WE4M181
...
507
THERMOSTAT GEH-WE4M261
...
508
SHAFT & BRACKET ASS'Y GEH-WE3X39
...
509
BAFFLE GEH-WE14M75
...
515
GROUND STRAP ASM GEH-WE1M1015
...
525
SCREW GEH-WE2M180
...
526
COMBUSTION CHAMBER GEH-WE14M70
...
527
DUCT TRANSITION GEH-WE14M88
...
530
THERMOSTAT GEH-WE4M80
...
532
GAS DIFFUSER & PLATE ASM GEH-WE14M134
...
534
SCREW #10 GEH-WE2M163
...
552
DETECTOR GEH-WE4X448
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

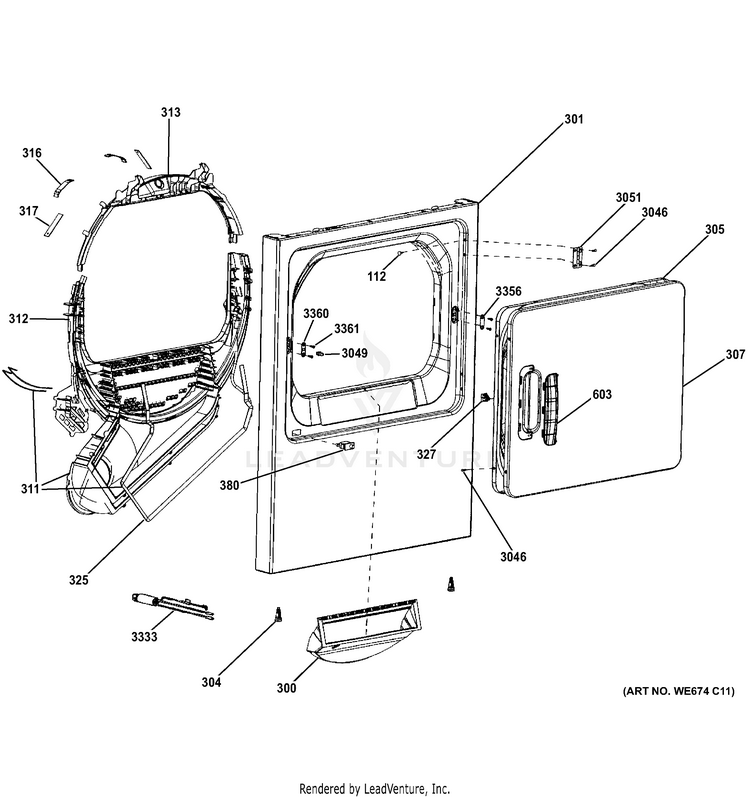

FRONT PANEL & DOOR

...
...
112
BEAUTY BUTTON-WHT GEH-WR02X8693
...
300
LINT FILTER METAL MESH GEH-WE18M30
...
301
FRONT PANEL WHITE GEH-WE20X20322
...
304
STABILIZING LEG ASM. GEH-WE2M188
...
305
INNER DOOR ASM GEH-WE10X20582
...
307
DOOR PANEL (WHITE) GEH-WE10M102
...
311
AIR DUCT ASSY GEH-WE14M92
...
312
FELT GEH-WE9M30
...
313
BEARING TOP GEH-WE3M56
...
316
SLIDE GREEN GEH-WE1M1067
...
317
SLIDE WHITE GEH-WE1M504
...
325
GASKET (SEAL) GEH-WE00M169
...
327
LATCH GEH-WE1M536
...
380
DOOR SWITCH GEH-WE4M415
...
603
HANDLE DOOR GEH-WE1M1026
...
3046
SCREW #8 GEH-WE2M196
...
3049
STRIKE GEH-WE1X1192
...
3051
HINGE GEH-WE1M505
...
3333
HARNESS SENSOR GEH-WE5M39
...
3356
STRIKE PLATE GEH-WE1M569
...
3360
STRIKE PLATE W/STRK HOLE GEH-WE1M570
...
3361
SCREW GROUND FRONT GEH-WD21M131

GAS VALVE & BURNER ASSEMBLY

...
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
272
SCR 8-15 X 7/16 AB GEH-WE2M308
...
709
ORIFICE GEH-WE01X1148
...
710
LEAK LIMITER GEH-WE01X1076
...
712
GAS VALVE & PIPE ASM. NG GEH-WE14M159
...
715
SCR GEH-WD2M101
...
716
BURNER ASM. GEH-WE14M104
...
717
IGNITER ASM GEH-WE4M449
...
718
SHUTTER GEH-WE1M486
...
723
BRACKET GAS VALVE GEH-WE13M52
...
729
COIL DUAL GEH-WE04X0692
...
730
SCREW (COIL MTG BRKT) GEH-WE02X0333
...
731
COIL MAIN GEH-WE04X0693
