GE DISR473CGBWW Electric Dryer

Model: DISR473CGBWW

Back To Assemblies

Save Part Not Listed?
product name

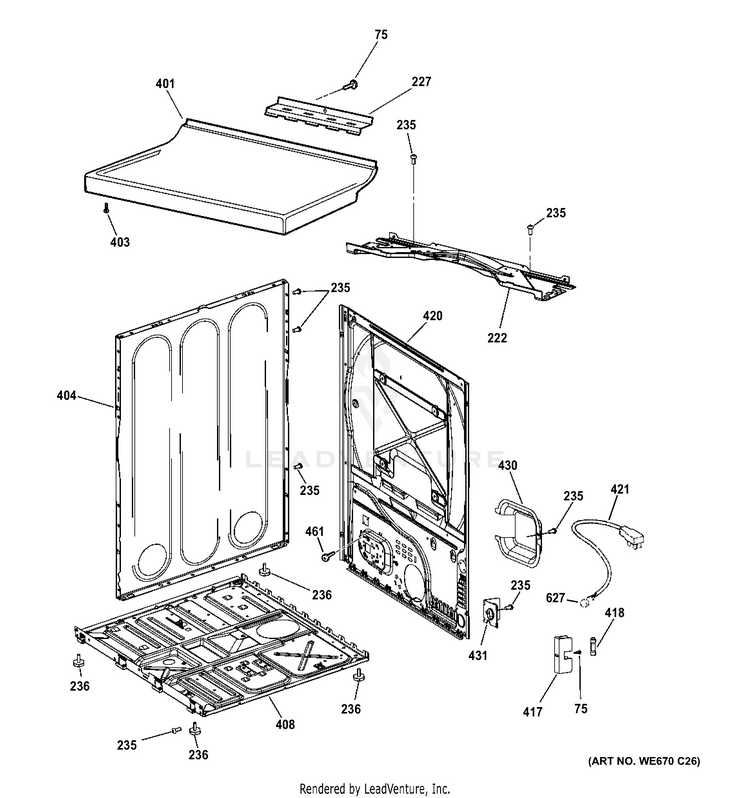

CABINET & TOP PANEL

...
...
75
SCREW GEH-WE2M173
...
222
BOTTOM COVER (E-COAT) GEH-WE20M494
...
227
REAR HEAT SHEILD GEH-WE1M723
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
236
LEVELLING FOOT GEH-WE1M1101
...
401
COVER WH GEH-WE20M286
...
403
SCREW #8 GEH-WE2M160
...
404
SIDE PANEL WHITE GEH-WE20X20092
...
408
CHASSIS BASE GEH-WE20M492
...
417
HOLDER FUSE GEH-WE1M1003
...
418
FUSE CCMR 30 AMP 120V GEH-WE1M1002
...
420
REAR PANEL GEH-WE20M539
...
421
CORD SET GEH-WE26M333
...
430
TERM. BLOCK COVER GEH-WE1M1102
...
431
STRAIN RELIEF BRACKET GEH-WE1M1103
...
461
SCREW GROUND GEH-WZ5X158
...
627
STRAIN RELIEF GEH-WE1M430
