GE DDT575SSF7SS Dishwasher

Model: DDT575SSF7SS

Save Part Not Listed?
product name

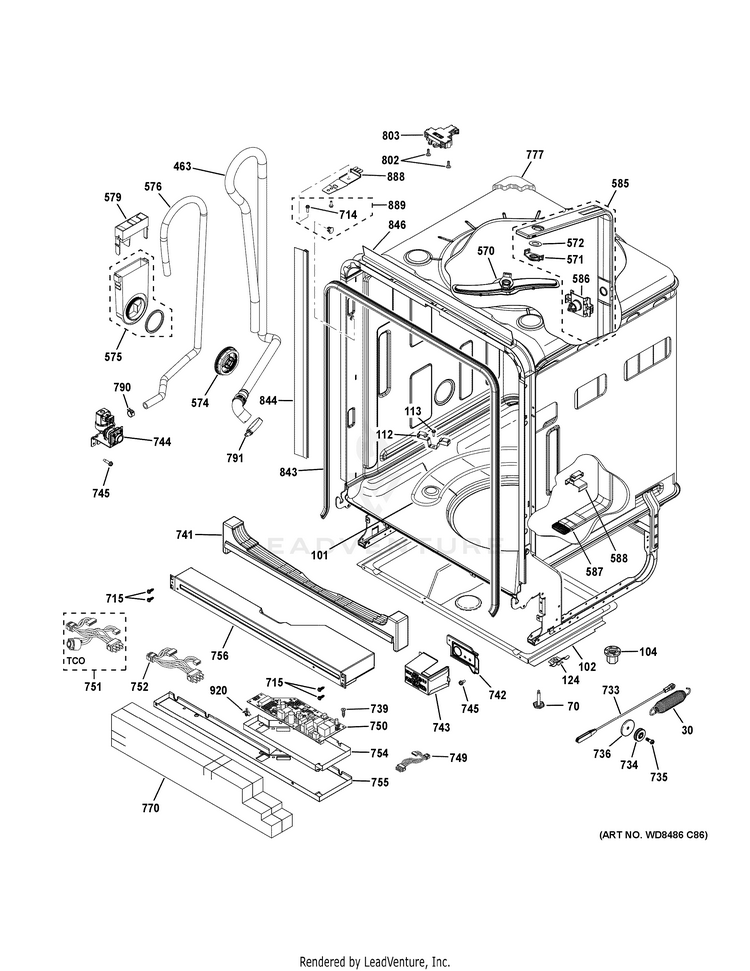

BODY PARTS

...
...
30
SPRING DOOR GEH-WD03X20316
...
70
SCREW LEVELING GEH-WD12X10417
...
101
ELEMENT HEATING ASM GEH-WD05X21294
...
102
PAN LEAK GEH-WD18X20461
...
104
NUT TOWER HEATER GEH-WD01X10070
...
112
SUPPORT HEATER SS GEH-WD01X20120
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
124
CLIP LEAK PAN GEH-WD18X20464
...
463
HOSE LOOP DRAIN HIGH GEH-WD24X10067
...
570
UPPER SPRAY ARM ASM GEH-WD22X22501
...
571
HUB UPPER SPRAY ARM GEH-WD12X22503
...
572
GASKET UPPER SPRAY ARM GEH-WD08X22502
...
574
NUT WATER INLET GEH-WD01X20738
...
575
FUNNEL AND GASKET ASM GEH-WD12X21322
...
576
HOSE FILL GEH-WD24X10064
...
579
CAP FILL FUNNEL GEH-WD12X20834
...
585
CONDUIT MAIN ASM GEH-WD12X22497
...
586
DOCKING PORT SS GEH-WD12X20118
...
587
SEAL CONDUIT GEH-WD08X10098
...
588
SHIELD CONDUIT GEH-WD12X21675
...
714
SCR 8-18 B HXW .480 S GEH-WD02X10160
...
715
SCR 10-32 GX HXW 3/8 GEH-WD02X10220
...
733
CABLE ASM PULLEY GEH-WD01X10569
...
734
PULLEY HINGE GEH-WD16X21836
...
735
SCR 10-32 TT CB 1/4 ZN GEH-WD01X21837
...
736
FRICTION WASHER GEH-WD01X20593
...
739
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
741
SPACER TUB FRONT GEH-WD01X21994
...
742
BRACKET JUNCTION BOX GEH-WD12X10411
...
743
COVER JUNCTION BOX GEH-WD12X10412
...
744
VALVE WATER ASM GEH-WD15X21340
...
745
SCR 10-32 GX IHXW 9/16 S GEH-WD01X22514
...
749
HARNESS ASM JUMPER GEH-WD21X20215
...
750
MACHINE CONTROL GOOD GEH-WD21X21916
...
751
HARNESS ASM AC GEH-WD21X22616
...
752
HARNESS ASM DC GEH-WD21X20124
...
754
SHIELD DIELECTRIC GEH-WD01X21974
...
755
CONTROL BOX BOTTOM GEH-WD30X21714
...
756
CONTROL BOX TOP GEH-WD27X10390
...
770
BARRIER TOEKICK GEH-WD01X21375
...
777
TUB INSULATION GEH-WD01X21314
...
790
CLAMP HOSE GEH-WD01X22786
...
791
CLAMP GEH-WD01X10611
...
802
SCR 8-18 AB TSQ 5/8 SS GEH-WR01X10380
...
803
LATCH TUB SIDE STANDARD GEH-WD21X10490
...
843
GASKET TUB SS GEH-WD08X22095
...
844
TRIM TUB BK/SS GEH-WD08X10095
...
846
TRIM TUB GEH-WD08X20719
...
888
BRACKET COUNTERTOP GEH-WD01X21740
...
889
CT SCREW ASM GEH-WD35X10383
...
920
CLIP CONTROL BOARD GEH-WD01X21975

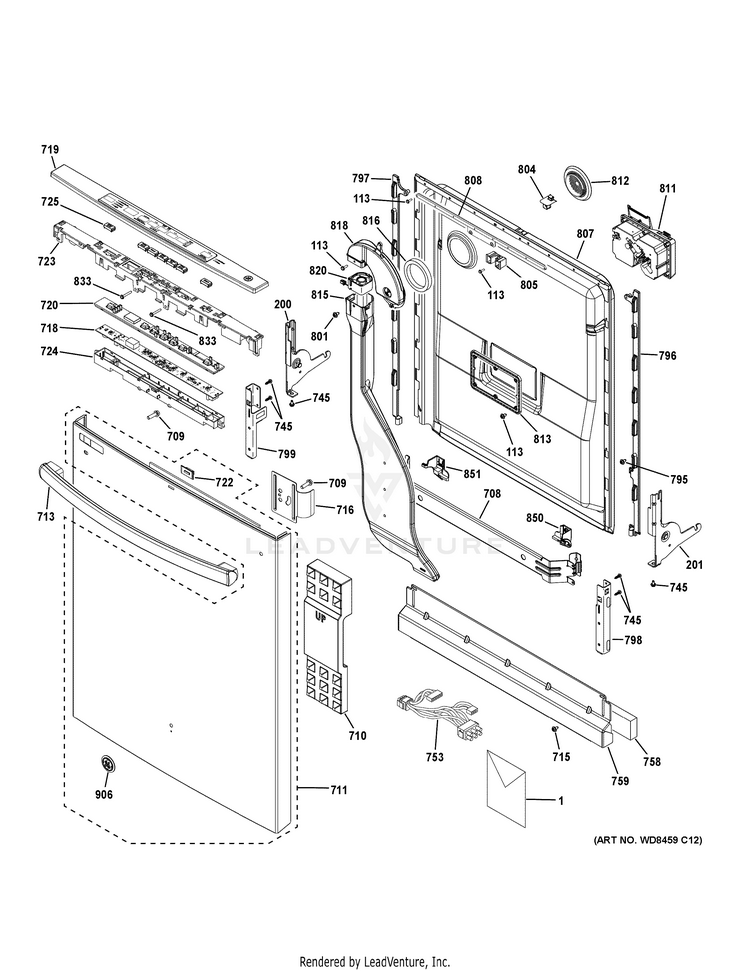

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM MINI-MANUAL CSM GEH-31-30747
...
1
PM INSTALL INSTRUCTIONS GEH-31-31546
...
1
PM OWNERS MANUAL GEH-49-55098
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
200
ARM HINGE ASM GEH-WD14X20128
...
201
ARM HINGE ASM GEH-WD14X20129
...
708
BRACE DOOR ASM GEH-WD30X10045
...
709
SCR 1/4-28 FL IHXW 15/16 GEH-WD01X20934
...
710
BLOCK FOAM DOOR GEH-WD01X10585
...
711
OUTER DOOR, SS GEH-WD34X22800
...
713
DOOR HANDLE ASM GEH-WD09X21321
...
715
SCR 10-32 GX HXW 3/8 GEH-WD02X10220
...
716
BRACKET HANDLE GEH-WD01X20135
...
718
UI BOARD GEH-WD21X22239
...
719
BEZEL & CVR CONSOLE ASM GEH-WD34X21669
...
720
SILICONE LIGHT PIPE GEH-WD12X20139
...
722
LENS AND ADHESIVE ASM GEH-WD09X20066
...
723
CONSOLE TOP CONTROL GEH-WD12X10469
...
724
HOUSING BOTTOM GEH-WD12X10470
...
725
BUTTON AND GRAPHICS ASM GEH-WD09X22799
...
745
SCR 10-32 GX IHXW 9/16 S GEH-WD01X22514
...
753
HARNESS ASM DOOR GEH-WD21X21664
...
758
INSULATION TOE KICK GEH-WD27X21334
...
759
TOE KICK PAINTED ASM GEH-WD27X10392
...
795
SCREW T15 8-16 PLASTITE GEH-WD02X22628
...
796
ATTACH STRIP GEH-WD01X10633
...
797
ATTACH STRIP GEH-WD01X10634
...
798
BRKT SUPPORT HINGE ASM GEH-WD01X20127
...
799
BRKT SUPPORT HINGE ASM GEH-WD01X20126
...
801
6-19 X 1/4 TORX PAN HEAD GEH-WD02X10129
...
804
STRIKER LATCH GEH-WD13X10071
...
805
STRIKER ADAPTER GEH-WD13X10068
...
807
DOOR INNER SS GEH-WD31X20237
...
808
ATTACHMENT STRIP TOP GEH-WD01X10639
...
811
DETERGENT DISP NO SENSOR GEH-WD12X22576
...
812
COVER VENT GEH-WD24X20586
...
813
PLATE DETERGENT GEH-WD12X10462
...
815
VENT CONDUIT ASM GEH-WD12X20218
...
816
DOOR VENT SEAL GEH-WD08X10092
...
818
TRANSITION PIECE ASM GEH-WD12X21356
...
820
VENT FAN ASM GEH-WD24X20256
...
833
SCR 10-16 PL PNT 2.25 S GEH-WD02X20140
...
850
TRIM DOOR RH GEH-WD12X22540
...
851
TRIM DOOR LH GEH-WD12X22541
...
906
BADGE GE ASM GEH-WR04X10181

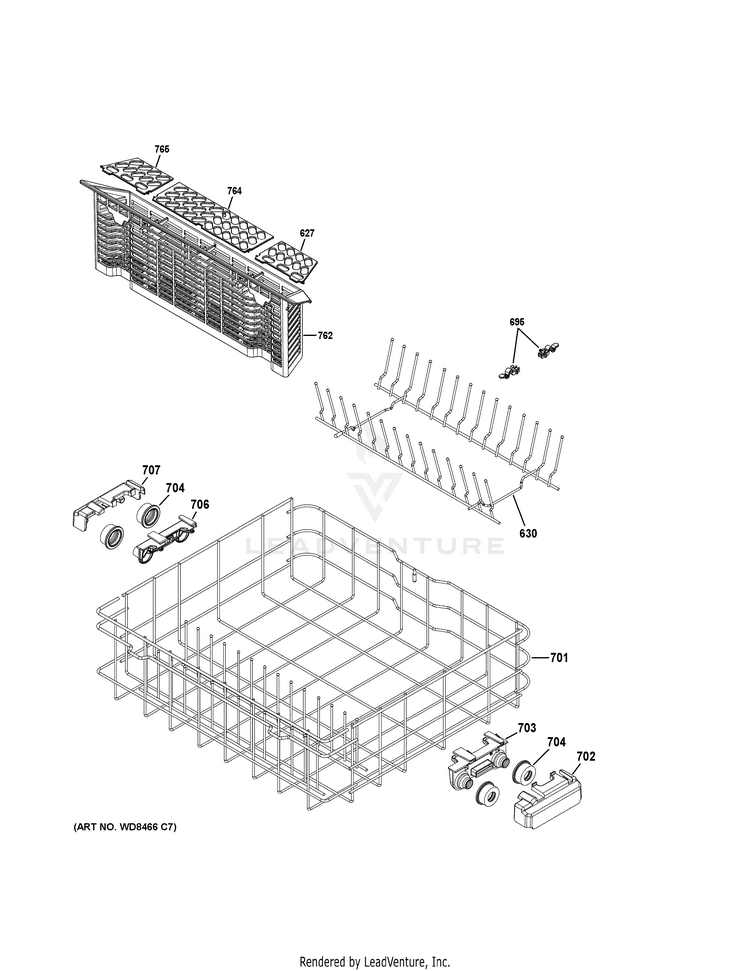

LOWER RACK ASSEMBLY

...
...
627
LID BASKET SIDE GEH-WD28X21758
...
630
TINE BLOCK GEH-WD28X10364
...
695
CLIP RACK GEH-WD12X10463
...
701
RACK LOWER ASM COATED GEH-WD28X22619
...
702
COVER ROLLER LH GEH-WD12X10439
...
703
CARRIER ROLLER LH GEH-WD12X10447
...
704
ROLLER LOWER RACK GEH-WD12X10435
...
706
CARRIER ROLLER RH GEH-WD12X10446
...
707
COVER ROLLER RH GEH-WD12X10438
...
762
BASKET SILVERWARE GEH-WD28X10356
...
764
LID BASKET MIDDLE GEH-WD28X22785
...
765
LID BASKET SIDE GEH-WD28X21759

SUMP & FILTER ASSEMBLY

...
...
42
SCR10 - 16 AB HXW 3/4 SS GEH-WD02X22736
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
308
SWITCH FLOOD ASM GEH-WD21X10519
...
451
FILTER MANUAL ASM GEH-WD12X21676
...
453
VENT FILTER GEH-WD24X10057
...
454
ADAPTOR FILTER GEH-WD12X10419
...
455
ADAPTER CONDUIT ASM GEH-WD18X10051
...
462
DRAIN TUBE ASM GEH-WD24X10062
...
501
ARM SPRAY LOWER ASM GEH-WD22X10091
...
502
FILTER COARSE SS GEH-WD22X10093
...
506
GASKET SUMP MANIFOLD GEH-WD08X21320
...
509
PLATE FLOOR MANUAL GEH-WD12X21677
...
792
CLAMP GEH-WD01X10104

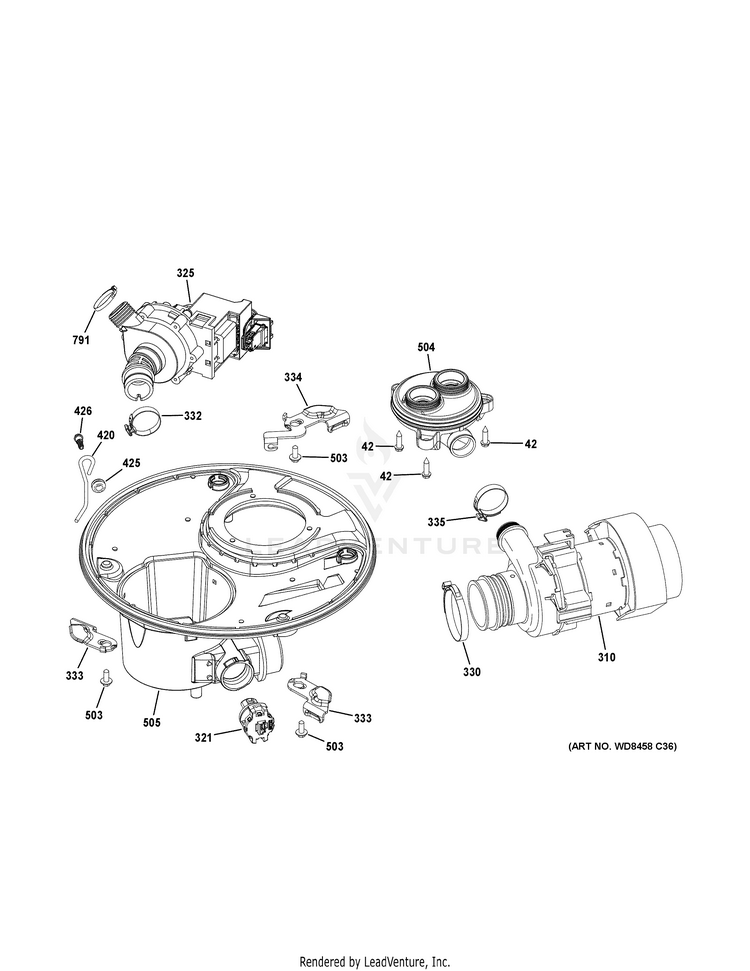

SUMP & MOTOR MECHANISM

...
...
42
SCR10 - 16 AB HXW 3/4 SS GEH-WD02X22736
...
310
PUMP WASH MAIN ASM GEH-WD26X22285
...
321
SENSOR TURBIDITY ASM GEH-WD21X22598
...
325
PUMP DRAIN ASM GEH-WD26X21697
...
330
CLAMP GEH-WD01X20302
...
332
CLAMP GEH-WD01X10573
...
333
LATCH CAM GEH-WD01X10632
...
334
LATCH CAM GEH-WD01X10575
...
335
CLAMP GEH-WD01X10572
...
420
HANGER DRAIN PUMP GEH-WD01X10579
...
425
GROMMET GEH-WD01X10101
...
426
SCR 10-18 X 5/8 GEH-WD02X22781
...
503
SCR 10-16 AB HXW .532 GEH-WB01T10103
...
504
DIVERTER PASSIVE ASM GEH-WD18X21754
...
505
SUMP MANIFOLD GEH-WD18X10055
...
791
CLAMP GEH-WD01X10611

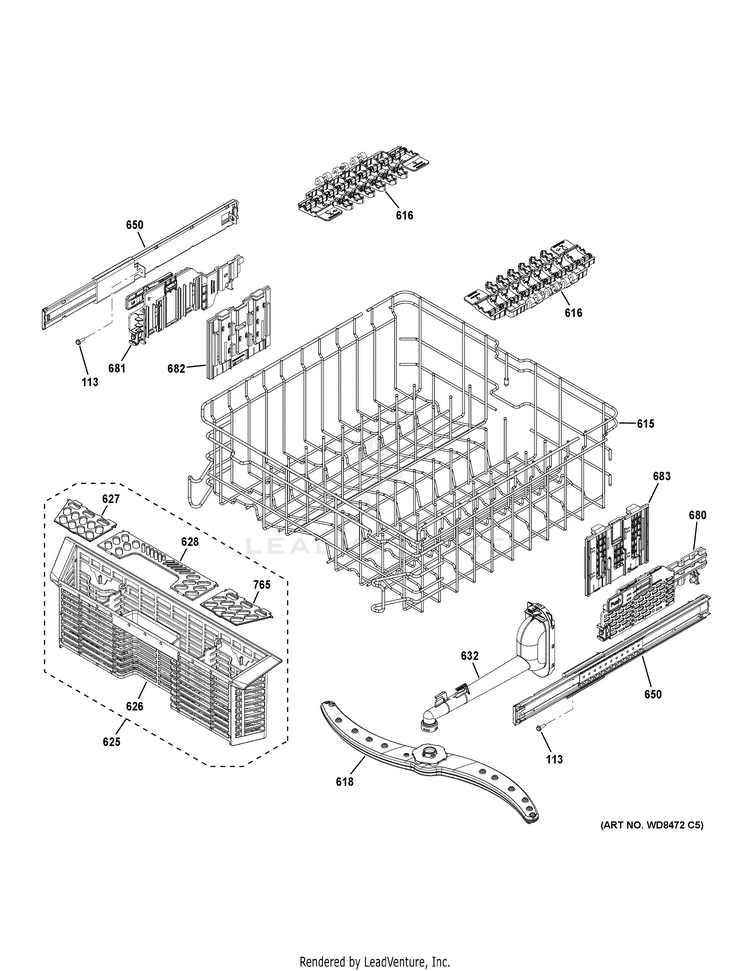

UPPER RACK ASSEMBLY

...
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
615
RACK UPPER ASM GEH-WD28X22784
...
616
SHELF CUP GEH-WD28X20106
...
618
ARM SPRAY MID ASM GEH-WD22X10089
...
625
TRAY UTILITY ASM GEH-WD28X21756
...
626
TRAY UTILITY GEH-WD28X21760
...
627
LID BASKET SIDE GEH-WD28X21758
...
628
LID BASKET MIDDLE GEH-WD28X21757
...
632
CONDUIT MID ASM GEH-WD22X10094
...
650
INNER RAIL UPR RACK ASM GEH-WD30X20110
...
680
BRACKET ASM UPPER RACK GEH-WD12X20108
...
681
BRACKET ASM UPPER RACK GEH-WD12X20109
...
682
BRACKET FIXED GEH-WD12X20112
...
683
BRACKET FIXED GEH-WD12X20113
...
765
LID BASKET SIDE GEH-WD28X21759
