GE DCVH485EK0MS Electric Dryer

Model: DCVH485EK0MS

Save Part Not Listed?
product name

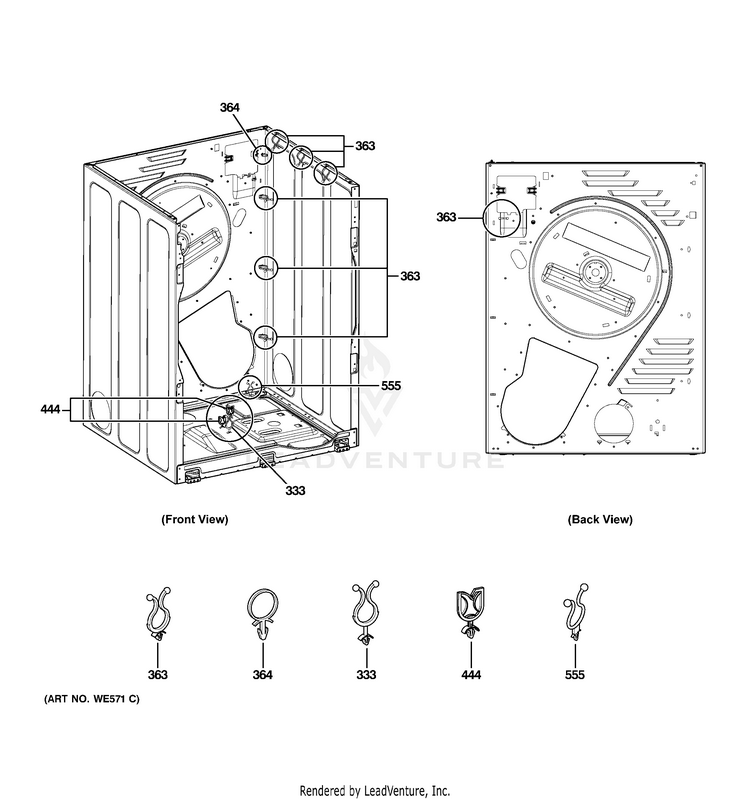

ATTACHING PARTS

...
...
333
WIRE TIE GEH-WE01X10275
...
363
WIRE TIE GEH-WH01X10499
...
364
WIRE TIE GEH-WH01X10500
...
444
WIRE TIE GEH-WE01X10276
...
555
PUSH MNT-OPEN CLAMP STYL GEH-WE01X10277

BLOWER & MOTOR

...
...
301
ACCESS RING BLWR WHEEL GEH-WE01X10270
...
302
DUCT COVER ASM GEH-WE14X10088
...
303
NUT BLOWER WHEEL GEH-WE02X10084
...
304
BLOWER WHEEL ASM GEH-WE16X10003
...
305
THERMOSTAT GEH-WE04X10152
...
306
THERMISTOR ASM GEH-WE04X10153
...
307
MOTOR PLATE GEH-WE13X10040
...
308
IDLER BRACKET ASM GEH-WE01X10271
...
309
BELT SWITCH GEH-WE04X10154
...
310
SWITCH COVER GEH-WE01X10273
...
311
SPRING (IDLER) GEH-WE02X10085
...
312
MOTOR ASM GEH-WE17X10012
...
313
STRAP MOTOR GEH-WE13X10042
...
314
SCREW (M4 X L12) GEH-WE02X10086
...
315
SCREW (M5 X L11) GEH-WE02X10087
...
316
SCREW (M3 X L16) GEH-WE02X10088
...
317
BELT DRIVE GEH-WE12X10015
...
384
CLIP PULLEY GEH-WE01X10272

CABINET

...
...
49
SCR COVER-BACK (M4*L8) GEH-WH02X10287
...
119
SCREW HNGE HDR(M5 X L12) GEH-WE02X10078
...
231
SCREW-TAPPING (M4XL12) GEH-WH02X10323
...
501
ASM GASKET FELT GEH-WE09X10018
...
502
BRACKET GASKET FELT GEH-WE13X10035
...
503
BEARING ASM GEH-WE03X10010
...
504
BRACKET FRONT GEH-WE13X10036
...
506
TOP COVER ASM MS GEH-WE20X10105
...
507
BRACKET TOP COVER GEH-WE13X10037
...
508
COVER BEARING GEH-WE01X10252
...
509
HOUSING HEATER GEH-WE14X10085
...
510
BRACKET TERMINAL BLOCK GEH-WE13X10038
...
511
HEATER ASM GEH-WE11X10019
...
512
EXHAUST PROTECTOR ASM GEH-WE01X10253
...
513
COVER TERMINAL BLOCK GEH-WE01X10254
...
514
EXHAUST DUCT ASM GEH-WE14X10086
...
515
LEVELING LEG GEH-WE01X10255
...
516
PAD GEH-WE01X10256
...
517
MAIN HARNESS GEH-WE15X10002

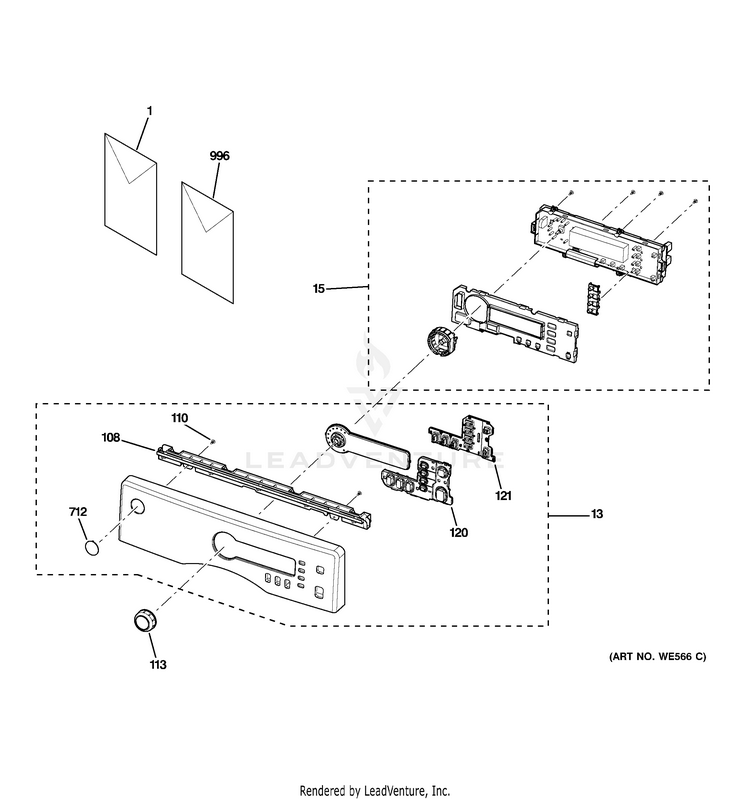

CONTROLS

...
...
1
MINI MANUAL (DRYER) GEH-31-16590
...
1
OWNER'S MNL W/INSTL INS GEH-49-90370
...
13
CONTROL PANEL ASM MS GEH-WE19X10084
...
15
CONTROL ASM GEH-WE04X10155
...
108
SUPPORT CONTROL PANEL GEH-WH16X10125
...
110
SCREW-TAPPING GEH-WR01X10463
...
113
KNOB ASM GEH-WH11X10057
...
120
PUSH BUTTON - PLASTIC GEH-WH12X10450
...
121
PUSH BUTTON - RUBBER GEH-WH12X10451
...
712
BADGE - GE GEH-WH01X10468
...
996
KIT STACKING 24" WSH/DRY GEH-WH49X10072

DRUM

...
...
363
WIRE TIE GEH-WH01X10499
...
401
DRUM ASSEMBLY GEH-WE21X10016
...
411
BAFFLE DRUM GEH-WE01X10266
...
413
SCREW (M4 X L8) GEH-WE02X10080
...
414
SCREW (M4 X L20) GEH-WE02X10081
...
416
NUT GEH-WE02X10082
...
417
WASHER GEH-WE02X10083
...
418
BEARING PLASTIC GEH-WE01X10267
...
419
SCREW (M4 X L16) GEH-WE02X10079
...
420
ROLLER ASM GEH-WE01X10269
...
421
DRUM SUPPORT ASM GEH-WE01X10268
...
422
DUCT OUTLET ASM GEH-WE14X10087
...
423
SCREW HANDLE TAPPING GEH-WB01X10290
...
424
FILTER GUIDE MID GEH-WE18X10016
...
425
COVER FILTER LOWER GEH-WE18X10014
...
426
SPRING FILTER COVER GEH-WE02X10090
...
427
LINT FILTER GEH-WE18X10015
...
428
HARNESS GEH-WE15X10003
...
430
LAMP ASM INCL SEALED BUL GEH-WE01X10278
...
431
FILTER COVER GEH-WE18X10018
...
432
SENSOR & FILTER ASM GEH-WE18X10017

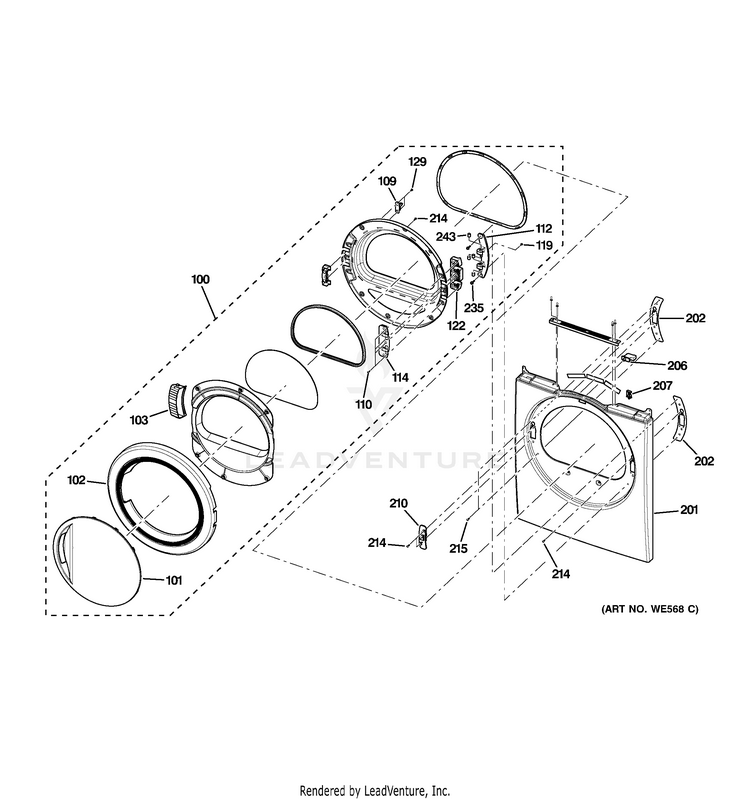

FRONT PANEL & DOOR

...
...
100
DOOR ASM COMPLETE GEH-WE10X10025
...
101
DOOR OUTER WINDOW GEH-WE01X10257
...
102
DOOR OUTER GEH-WE01X10258
...
103
HANDLE DOOR GEH-WE01X10259
...
109
DOOR STRIKE GEH-WE01X10260
...
110
SCREW-TAPPING GEH-WR01X10463
...
112
HINGE DOOR GEH-WE01X10261
...
114
HINGE SUPPORT GEH-WE01X10263
...
119
SCREW HNGE HDR(M5 X L12) GEH-WE02X10078
...
122
HINGE BEARING GEH-WE01X10262
...
129
SCREW-TAPPING GEH-WH02X10081
...
201
PANEL FRONT ASM MS GEH-WE20X10107
...
202
BRACKET HINGE GEH-WE13X10039
...
206
DOOR SWITCH GEH-WE04X10150
...
207
WIRE TIE GEH-WE01X10264
...
210
CATCH ASSEMBLY GEH-WE01X10265
...
214
SCR (M4*L12) GEH-WH02X10294
...
215
SCREW-MACHINE (M5 X L12) GEH-WE02X10089
...
235
SCREW-HEX (M5XL16) GEH-WH02X10326
...
243
HINGE GUIDE GEH-WH01X10480
