GE DCVH480EK1WW Dryer Electric

Model: DCVH480EK1WW

Back To Assemblies

Save Part Not Listed?
product name

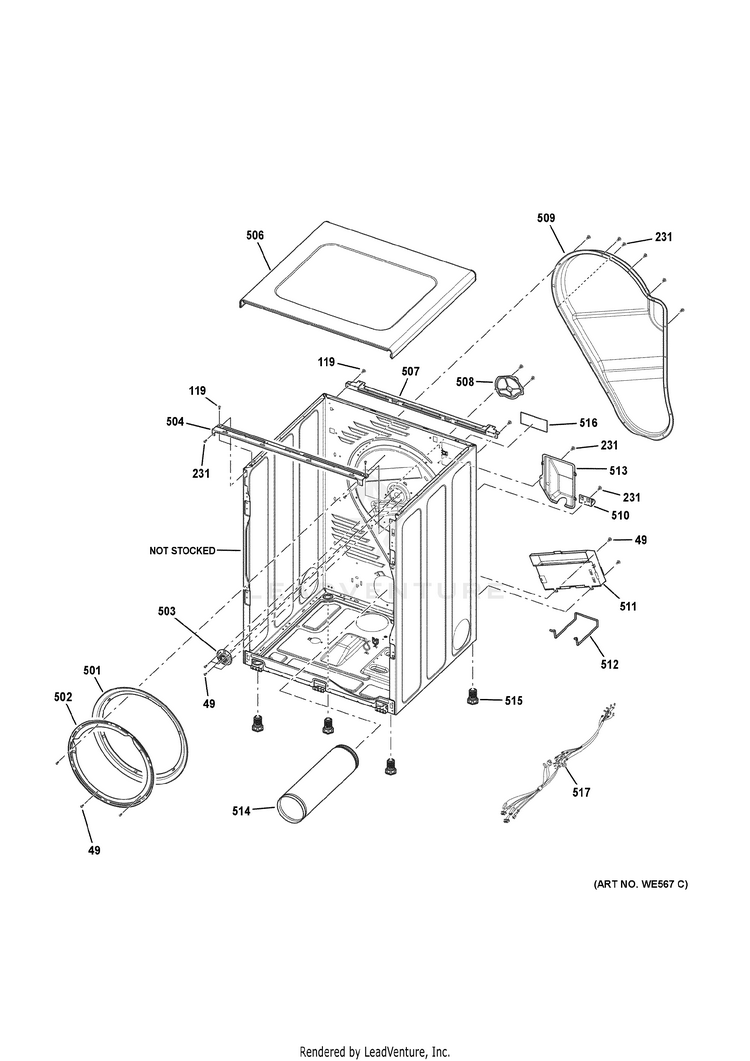

CABINET & TOP PANEL

...
...
49
SCR COVER-BACK (M4*L8) GEH-WH02X10287
...
119
SCREW HNGE HDR(M5 X L12) GEH-WE02X10078
...
231
SCREW-TAPPING (M4XL12) GEH-WH02X10323
...
501
ASM GASKET FELT GEH-WE09X10018
...
502
BRACKET GASKET FELT GEH-WE13X10035
...
503
BEARING ASM GEH-WE03X10010
...
504
BRACKET FRONT GEH-WE13X10036
...
506
TOP COVER ASM WW GEH-WE20X10104
...
507
BRACKET TOP COVER GEH-WE13X10037
...
508
COVER BEARING GEH-WE01X10252
...
509
HOUSING HEATER GEH-WE14X10085
...
510
BRACKET TERMINAL BLOCK GEH-WE13X10038
...
511
HEATER ASM GEH-WE11X10019
...
512
EXHAUST PROTECTOR ASM GEH-WE01X10253
...
513
COVER TERMINAL BLOCK GEH-WE01X10254
...
514
EXHAUST DUCT ASM GEH-WE14X10086
...
515
LEVELING LEG GEH-WE01X10255
...
516
PAD GEH-WE01X10256
...
517
MAIN HARNESS GEH-WE15X10002
