GE DCVH480EK1WW Dryer Electric

Model: DCVH480EK1WW

Back To Assemblies

Save Part Not Listed?
product name

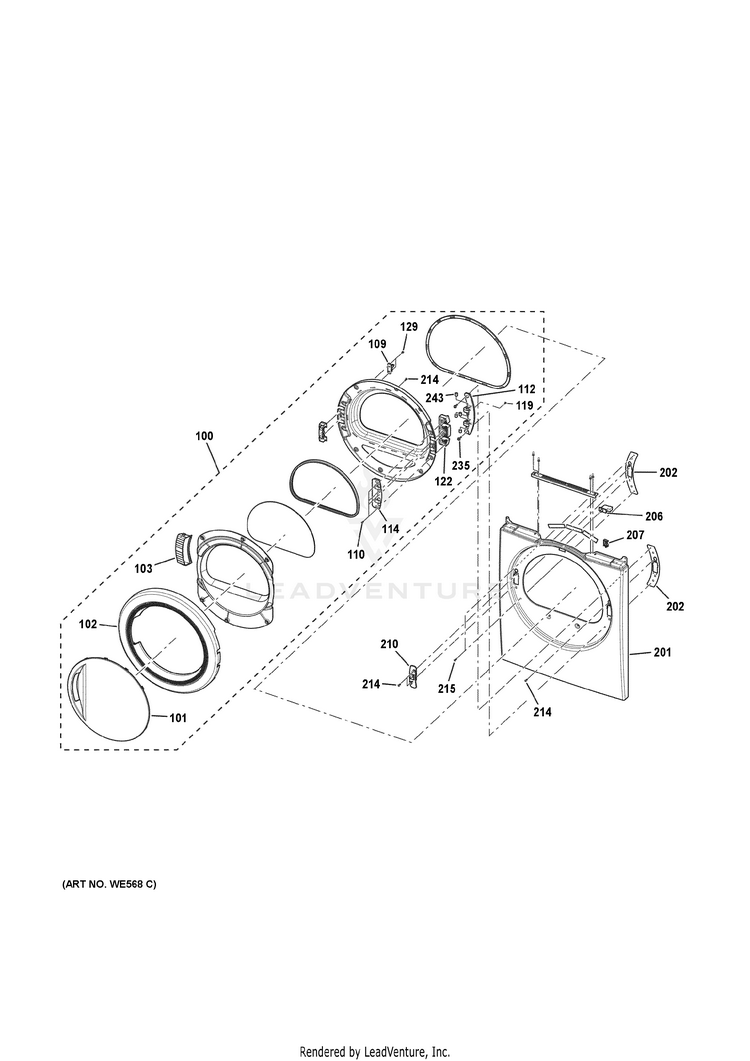

FRONT PANEL & DOOR

...
...
100
DOOR ASM COMPLETE GEH-WE10X10025
...
101
DOOR OUTER WINDOW GEH-WE01X10257
...
102
DOOR OUTER GEH-WE01X10258
...
103
HANDLE DOOR GEH-WE01X10259
...
109
DOOR STRIKE GEH-WE01X10260
...
110
SCREW-TAPPING GEH-WR01X10463
...
112
HINGE DOOR GEH-WE01X10261
...
114
HINGE SUPPORT GEH-WE01X10263
...
119
SCREW HNGE HDR(M5 X L12) GEH-WE02X10078
...
122
HINGE BEARING GEH-WE01X10262
...
129
SCREW-TAPPING GEH-WH02X10081
...
201
PANEL FRONT ASM WH GEH-WE20X10106
...
202
BRACKET HINGE GEH-WE13X10039
...
206
DOOR SWITCH GEH-WE04X10150
...
207
WIRE TIE GEH-WE01X10264
...
210
CATCH ASSEMBLY GEH-WE01X10265
...
214
SCR (M4*L12) GEH-WH02X10294
...
215
SCREW-MACHINE (M5 X L12) GEH-WE02X10089
...
235
SCREW-HEX (M5XL16) GEH-WH02X10326
...
243
HINGE GUIDE GEH-WH01X10480
