GE DCCB330EJ4WC Electric Dryer

Model: DCCB330EJ4WC

Save Part Not Listed?
product name

BLOWER & MOTOR ASSEMBLY

...
...
201
BLOWER WHEEL W/INSERT GEH-WE16M17
...
202
DEFLECTOR GEH-WE1M532
...
203
STRAP MOTOR GEH-WE13X200
...
204
STRAP MOTOR GEH-WE1X921
...
205
MOTOR SUPPORT GEH-WE13M39
...
206
SCREW GEH-WE2M200
...
213
BELT DRIVE GEH-WE12M29
...
215
IDLER ARM SPRING GEH-WE3M25
...
216
PULLEY IDLER GEH-WE12M8
...
218
GASKET SEAL GEH-WE1M473
...
219
BLOWER HOUSING GEH-WE14X20245
...
228
EXAUST PIPE GEH-WE14M90
...
230
THERMOSTAT OUTLET BIASED GEH-WE4M311
...
231
SCREW GEH-WE2M187
...
232
SCREW GEH-WE2M202
...
233
PLATE MOTOR GEH-WE13M51
...
234
CAP NUT GEH-WE2M96
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
237
SCREW GEH-WE2M154
...
239
SCREWS GEH-WE2M167
...
240
SCREW GEH-WE1M280
...
461
SCREW GROUND GEH-WZ5X158
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR THRD SHAFT & PULLY GEH-WE17M37
...
631
CONNECTOR MOTOR GEH-WE1M650
...
803
SWITCH INTERLOCK GEH-WD21X557

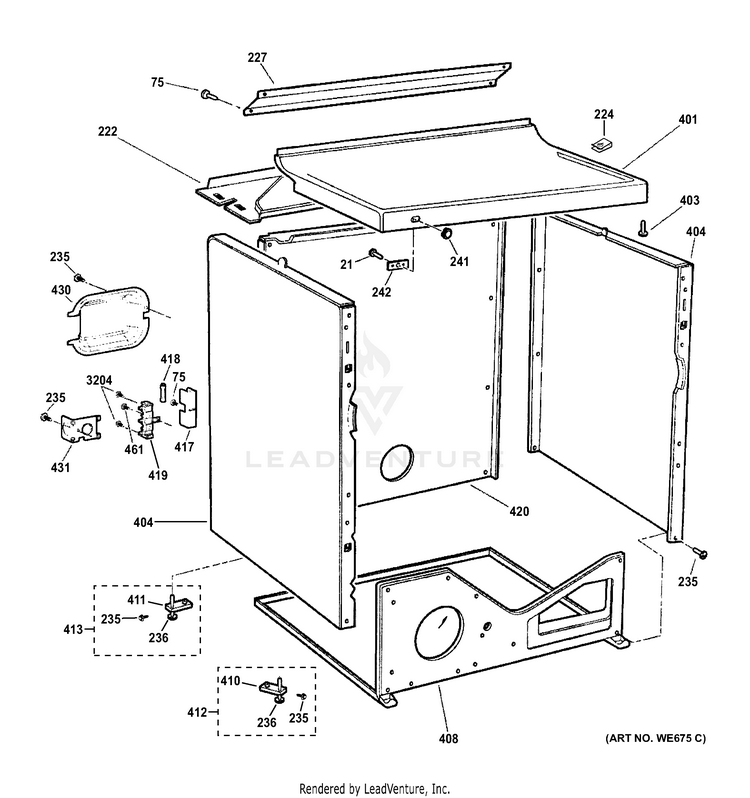

CABINET & TOP PANEL

...
...
21
SCREW GEH-WE02X21135
...
75
SCREW GEH-WE2M173
...
222
BOTTOM COVER (E-COAT) GEH-WE20M494
...
224
ANCHOR NUT 1/4 GEH-WE2M245
...
227
REAR HEAT SHEILD GEH-WE1M723
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
236
LEVELLING FOOT GEH-WE1M1101
...
241
PLUG BUTTON GEH-WH1X2266
...
242
RETAINER GEH-WH1X2268
...
401
COVER COIN WH GEH-WE20M290
...
403
SCREW 8-18 X 2 TORX T-15 GEH-WE2M227
...
404
SIDE PANEL WHITE GEH-WE20X20092
...
408
BASE CABINET COIN GEH-WE20M320
...
410
FRONT BRACKET LEVEL LEG GEH-WE1M781
...
411
BRACKET LEVELLING LEG GEH-WE1M772
...
412
LEVEL LEG & BRACKET FRNT GEH-WE1M782
...
413
BRACKET & LEVEL LEG ASM GEH-WE1M773
...
417
HOLDER FUSE GEH-WE1M1003
...
418
FUSE CCMR 30 AMP 120V GEH-WE1M1002
...
419
TERM BLK & GRND STRAP GEH-WE4M525
...
420
REAR PANEL GEH-WE20M539
...
430
TERM. BLOCK COVER GEH-WE1M1102
...
431
STRAIN RELIEF BRACKET GEH-WE1M457
...
461
SCREW GROUND GEH-WZ5X158
...
3204
SCR GEH-WH2M270

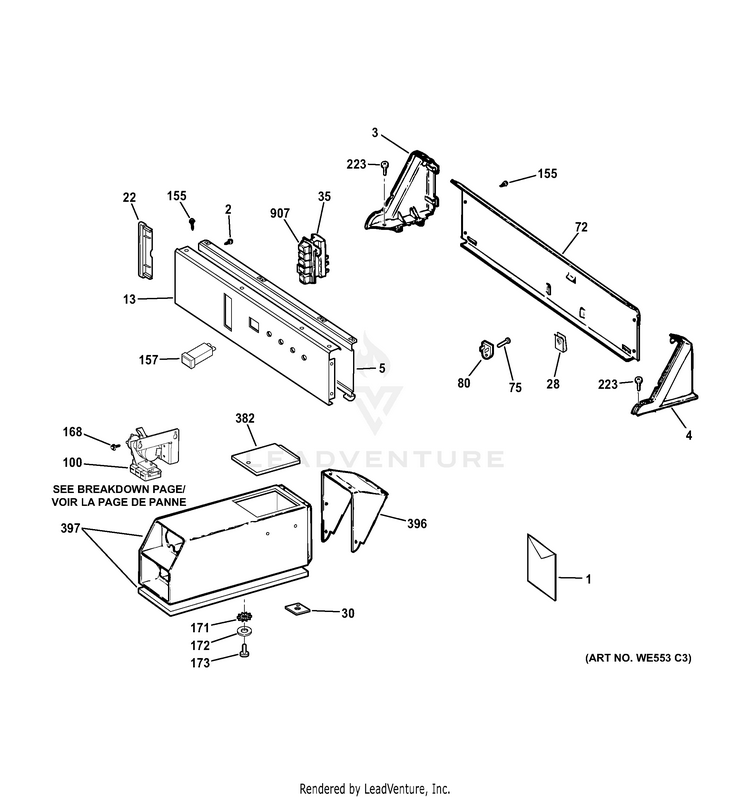

CONTROL PANEL & COIN BOX ASSEMBLY

...
...
1
PM WIRING DIAGRAM GEH-31-16338
...
1
INSTALLATION INSTRUCTION GEH-31-16741
...
2
SCREW 8-18X7 16 GEH-WE02X20422
...
3
END CAP LH BK GEH-WE19M1451
...
4
END CAP RH BK GEH-WE19M1452
...
5
SUPPORT SWITCH GEH-WE19M1360
...
13
SWITCH TRIM ASM. GEH-WE19M1555
...
22
END CAP SUPT GEH-WE19M987
...
28
SPEEDNUT GEH-WE2M171
...
30
PLATE SECUR COIN BOX GEH-WE1M533
...
35
P.B. SWITCH GEH-WE4M210
...
72
PANEL BACK GEH-WE20M343
...
75
SCREW GEH-WE2M173
...
80
RESISTOR (3500OHM) BEIGE GEH-WE4M307
...
100
TIMER & BRACKET ASM. GEH-WE4M468
...
155
SCR 8-18 AB TRT 5/8 S GEH-WH02X1233
...
157
LAMP ASSY - AMBER GEH-WE1X950
...
168
SCR 10-32 M HS 1/8 S GEH-WZ02X0468
...
171
WASHER LOCK GEH-WE2M182
...
172
WASHER GEH-WE02X21134
...
173
SCREW GEH-WE02X21136
...
223
SCREWS GEH-WE2M189
...
382
DOOR AND LATCH ASM GEH-WH42X10804
...
396
ADAPTER METER CASE GEH-WH42X10806
...
397
METER CASE ASM. GEH-WE20M403
...
907
PUSHBUTTON GEH-WD9X206

DRUM

...
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
237
SCREW GEH-WE2M154
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM 7 CU FT GEH-WE21M13
...
504
DEFLECTOR HEAT GEH-WE14M77
...
505
THERMOSTAT SAFETY LEFT GEH-WE4M160
...
506
THERMOSTAT INLET BLUE GEH-WE4M309
...
507
THERMOSTAT HI-LIMIT GEH-WE4M137
...
508
SHAFT & BRACKET ASS'Y GEH-WE3X39
...
509
BAFFLE GEH-WE14M75
...
510
CERAMIC INSULATOR GEH-WE1M452
...
512
HEATER ASM. COIN GEH-WE11M27
...
515
GROUND STRAP ASM GEH-WE1M1015
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

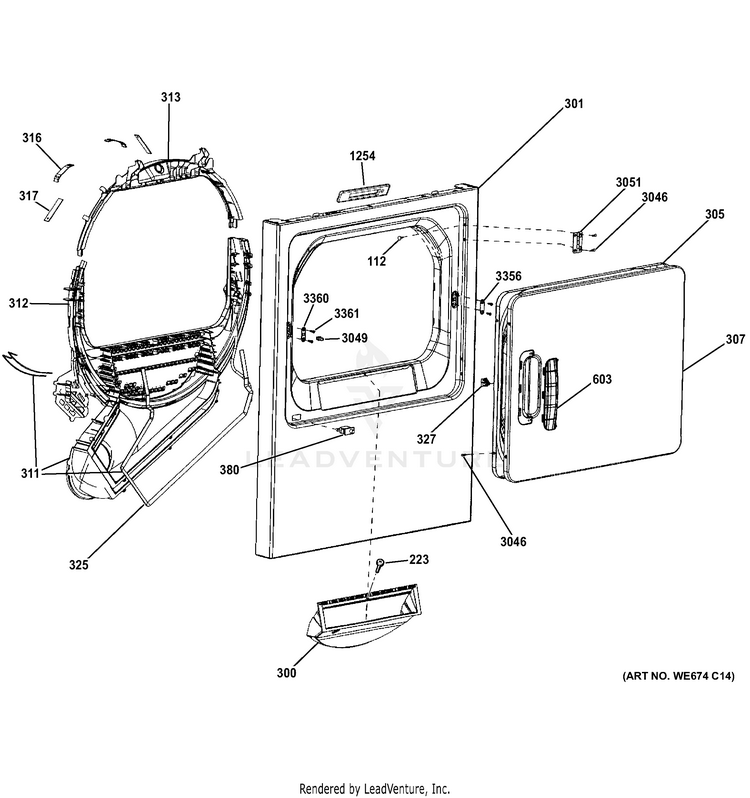

FRONT PANEL & DOOR

...
...
112
BEAUTY BUTTON-WHT GEH-WR02X8693
...
223
SCREWS GEH-WE2M189
...
300
FILTER FRAME W/HOLE GEH-WE18M29
...
301
FRONT PANEL WHITE GEH-WE20X20322
...
305
INNER DOOR ASM GEH-WE10X20582
...
307
DOOR PANEL (WHITE) GEH-WE10M102
...
311
AIR DUCT ASSY GEH-WE14M92
...
312
FELT GEH-WE9M30
...
313
TOP BEARING GEH-WE3M26
...
316
BEARING-SLIDE GREEN GEH-WE1M415
...
317
SLIDE WHITE GEH-WE1M504
...
325
GASKET (SEAL) GEH-WE00M169
...
327
LATCH GEH-WE1M536
...
380
DOOR SWITCH GEH-WE4M415
...
603
HANDLE DOOR GEH-WE1M1026
...
1254
PLATE SECURITY FRONT CAB GEH-WE2M199
...
3046
SCREW #8 GEH-WE2M196
...
3049
STRIKE GEH-WE1X1192
...
3051
HINGE GEH-WE1M505
...
3356
STRIKE PLATE GEH-WE1M569
...
3360
STRIKE PLATE W/STRK HOLE GEH-WE1M570
...
3361
SCREW GROUND FRONT GEH-WD21M131
