GE DBXR463EG6WW Electric Dryer

Model: DBXR463EG6WW

Back To Assemblies

Save Part Not Listed?
product name

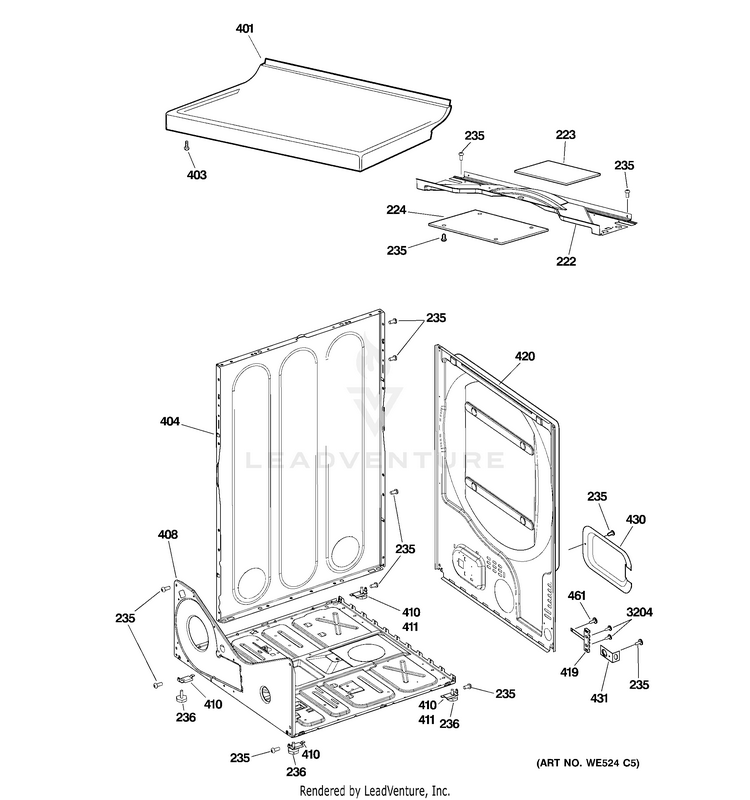

CABINET

...
...
222
BOTTOM COVER (E-COAT) GEH-WE20M253
...
223
HEAT PAD ADHESIVE GEH-WE1M776
...
224
HEAT SHEILD MICA GEH-WE1M775
...
235
SCR GEH-WE2X263
...
236
LEVELLING LEG-1PC PLASTI GEH-WE1M771
...
401
COVER WH GEH-WE20M286
...
403
SCREW #8 GEH-WE2M160
...
404
PANEL SIDE WH GEH-WE20M393
...
408
CABINET BASE GEH-WE20M390
...
410
FRONT BRACKET LEVEL LEG GEH-WE1M781
...
410
BRACKET LEVELLING LEG GEH-WE1M772
...
410
LEVEL LEG & BRACKET FRNT GEH-WE1M782
...
411
BRACKET & LEVEL LEG ASM GEH-WE1M773
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
PANEL REAR (6'CU) GEH-WE20M301
...
430
T-BLOCK COVER GEH-WE1M458
...
431
STRAIN RELIEF BRACKET GEH-WE1M457
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
3204
SCR GEH-WH2M270
