GE Caf CTS90FP4M2W2 Electric Range

Model: CTS90FP4M2W2

Save Part Not Listed?
product name

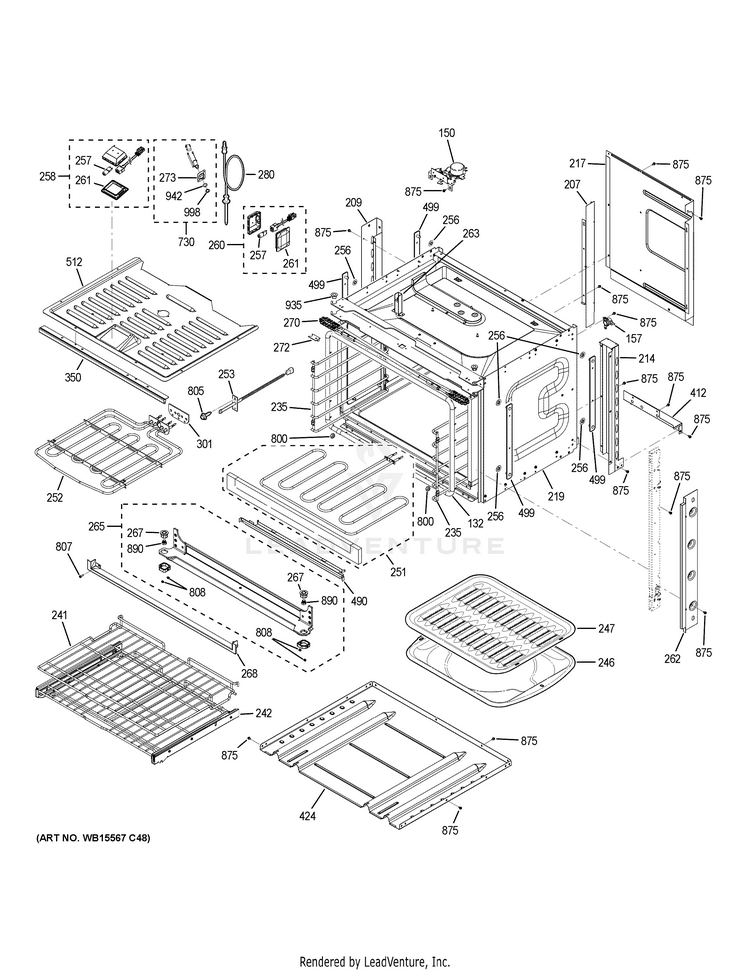

BODY PARTS

...
...
132
GASKET OVEN DOOR GEH-WB35X26196
...
150
LATCH ASM GEH-WB10X28391
...
157
SWITCH HIGH LIMIT GEH-WB24T10164
...
207
DIVIDER AIR CENTER GEH-WB34T10134
...
209
CHANNEL REAR LT GEH-WB34X21910
...
214
CHANNEL REAR GEH-WB55X10971
...
217
COVER - UPPER REAR DUCT GEH-WB34T10136
...
219
RETAINER INSLN SDE GEH-WB34X21913
...
235
GUIDE OVN RACK RT GEH-WB48X21765
...
235
GUIDE OVN RACK LT GEH-WB48X21766
...
241
RACK FLAT GEH-WB48X23857
...
242
RACK OVN SLIDE ASM GEH-WB48X21764
...
246
BROILER PAN GEH-WB48X31885
...
247
BROILER PAN GRID GEH-WB48X31884
...
251
HIDDEN BAKE ELEMENT KIT GEH-WB44X21667
...
252
ELEMENT BROIL ASM GEH-WB44X23640
...
253
SENSOR ASM GEH-WB21X10165
...
256
RETAINER BOLT GEH-WB01T10107
...
257
LAMP HALOGEN BULB G9 GEH-WB25T10102
...
258
HALOGEN LAMP ASM GEH-WB25X31221
...
260
HALOGEN LAMP ASM GEH-WB25X31223
...
261
OVEN LIGHT LENS GEH-WB34X31317
...
262
WHITE SLATE SIDE TRIM GEH-WB07X33177
...
263
SPRING ROLLER ASM GEH-WB10X23764
...
265
SUPPORT AND RECEIVER ASM GEH-WB07X30087
...
267
RECEIVER PIVOT ASM GEH-WB01X28392
...
268
TRIM BTM ASM GEH-WB07X23779
...
270
CHAIN ASM GEH-WB10X23777
...
272
RETAINER BEARING GEH-WB34X28805
...
273
PR0BE COVER GEH-WB34K5140
...
280
PROBE THERMISTOR GEH-WB20T10025
...
301
GASKET BROIL ELEMENT GEH-WB35X21972
...
350
TRIM BROIL ELEMENT (BK) GEH-WB07T10787
...
412
COVER LOWER RT AIR DUCT GEH-WB34T10151
...
424
COVER BOTTOM AIR DUCT GEH-WB34T10158
...
490
COVER HIDDEN BAKE GEH-WB55T10197
...
499
CAVITY BRACE ASM GEH-WB34X30789
...
512
PLATE - TOP OVEN GEH-WB37T10024
...
730
MEAT PROBE AND HARNESS GEH-WB18X23585
...
800
RACK GUIDE NUT GEH-WB01X21270
...
805
SCREW ST8-18X.500TRBRNI GEH-WB01K5062
...
807
SCREW-NICKLE GEH-WB01X1174
...
808
SCREW 1/4 X 32 RECESS A1 GEH-WB01X23771
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
890
SCR 3/8-24 MCH SK 1/4 GEH-WB01X28394
...
935
BEARING BRONZE GEH-WB01X23762
...
942
WASHER GEH-WB01X5573
...
998
NUT MEAT PROBE GEH-WB01X5572

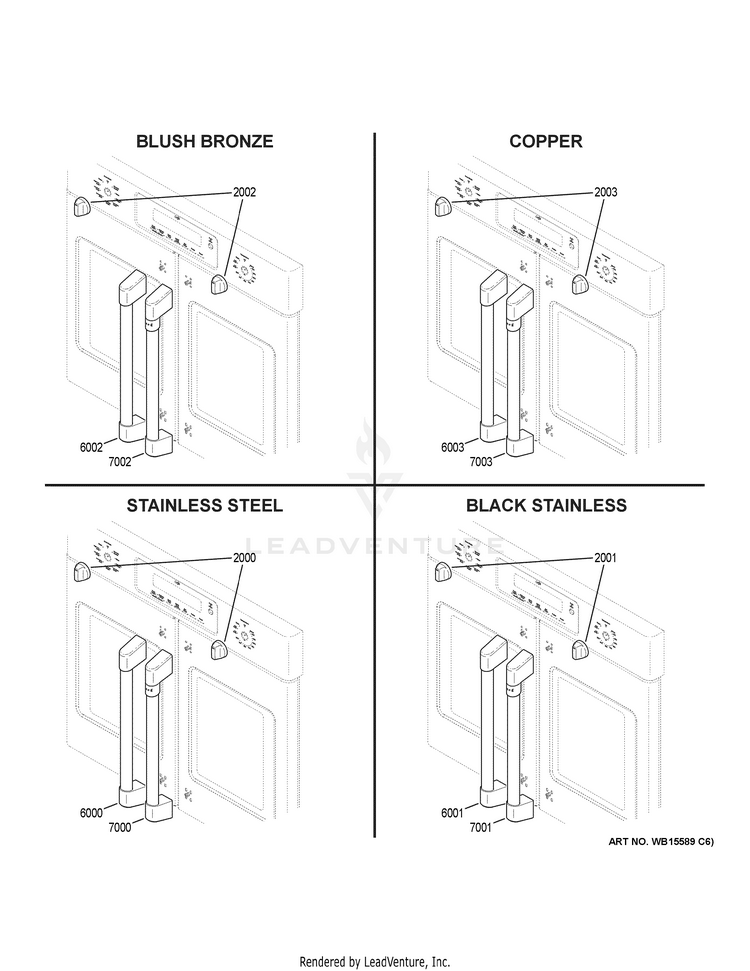

CAFE CUSTOMIZATION

...
...
2000
KNOB ASM (SS) GEH-WB03X23785
...
2001
BLACK STAINLESS WALL OVEN CONTROL KNOB GEH-WB03X31811
...
2002
BLUSH BRONZE WALL OVEN CONTROL KNOB GEH-WB03X31809
...
2003
COPPER WALL OVEN CONTROL KNOB GEH-WB03X31810
...
6000
STAINLESS STEEL FD WALL OVEN HANDLE GEH-WB15X31826
...
6001
BLACK STAINLESS FD WALL OVEN HANDLE GEH-WB15X31824
...
6002
BLUSH BRONZE FD WALL OVEN HANDLE GEH-WB15X31835
...
6003
COPPER FD WALL OVEN HANDLE GEH-WB15X31833
...
7000
STAINLESS STEEL FD WALL OVEN HANDLE W/ C GEH-WB15X31829
...
7001
BLACK STAINLESS FD WALL OVEN HANDLE W/ C GEH-WB15X31825
...
7002
BLUSH BRONZE FD WALL OVEN HANDLE W/ CAF GEH-WB15X31830
...
7003
COPPER FD WALL OVEN HANDLE W/ CAF BAND GEH-WB15X31831

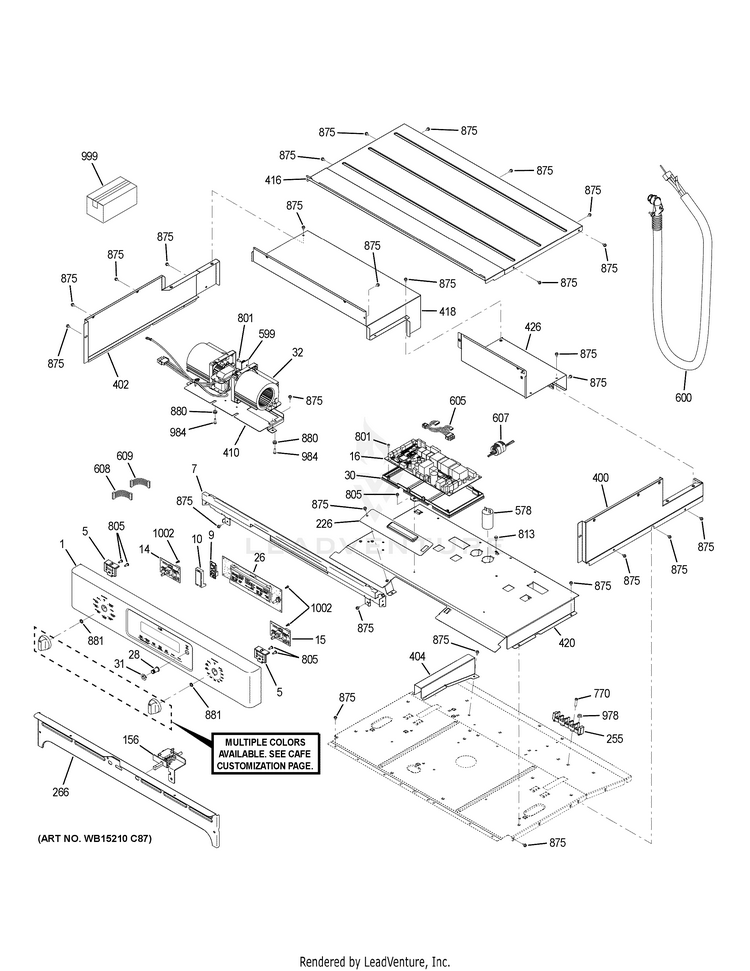

CONTROL PANEL

...
...
1
WHITE SLATE USER INTERFACE PANEL GEH-WB27X31859
...
1
LABEL WIRE DIAGRAM GEH-229C6152P003
...
5
CONTROL PANEL SUPPORT BRACKET GEH-WB34X29268
...
7
BRACKET CNTL PNL MTG GEH-WB34X28389
...
9
BOARD WIFI CAT MODULE GEH-WB27X29798
...
10
HOUSING TRANSCEIVER GEH-WB02X20265
...
14
BOARD UI KNOB GEH-WB27X24643
...
15
BOARD UI KNOB GEH-WB27X24642
...
16
BOARD MACHINE CONTROL GEH-WB27X24645
...
26
BOARD UI DISPLAY GEH-WB27X28530
...
28
KNOB TIMER ASM CAFE GEH-WB03X23783
...
30
FRAME BOARD - PLASTIC GEH-WB02X20274
...
31
BUSHING CNTL PNL GEH-WB01X23782
...
32
FAN BLOWER GEH-WB26X31060
...
156
SWITCH PLATE ASM GEH-WB24X23760
...
226
COVER LATCH ACCESS GEH-WB34T10161
...
255
BLOCK TERMINAL GEH-WB17T10024
...
266
TRIM VENT UPR GEH-WB07X23772
...
400
COVER TOP RIGHT EDGE GEH-WB34T10164
...
402
COVER TOP LEFT EDGE GEH-WB44T10126
...
404
CHANNEL UPPER AIR VENT GEH-WB34T10150
...
410
BRACKET UPPER FAN MOUNT GEH-WB37T10026
...
416
COVER HOUSING FRT GEH-WB34X28390
...
418
COVER TOP REAR GEH-WB34T10157
...
420
AIR DIVIDER GEH-WB34X30448
...
426
COVER WIRE REAR GEH-WB35T10273
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
599
BOARD FAN SENSOR GEH-WB27T11463
...
600
OPTIONAL 6 FT CONDUIT GEH-WB18T10578
...
600
CONDUIT WIRE ASM GEH-WB18X30600
...
605
HARNESS WIRE MAIN GEH-WB18X23721
...
607
HARNESS WIRE COM GEH-WB18X23778
...
608
HARNESS WIRE LATCH COM GEH-WB18X23787
...
609
HARNESS WIRE GLASS TOUCH GEH-WB18X23784
...
770
SCREW GEH-WB01K5072
...
801
6-19 X 1/4 TORX PAN HEAD GEH-WD02X10129
...
805
SCREW ST8-18X.500TRBRNI GEH-WB01K5062
...
813
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
880
GROMMET GEH-WB01T10128
...
881
NUT ENCODER GEH-WB01T10099
...
978
HEX NUT GEH-WB01X1259
...
984
SCREW 7-19 1/4HEX 1/2IN GEH-WB01T10130
...
999
LUBRICANT CLEANER GEH-WB02T10303
...
999
PM MANUAL MINI & WD ASM GEH-31-17327
...
999
MANUAL U&C TIP SHEET GEH-49-80597
...
999
PM INSTRUCTIONS INSTALL GEH-31-11164
...
999
PM OWNERS MANUAL GEH-49-80827
...
999
PM INSTRUCTIONS INSTALL GEH-31-10872
...
999
PM WI FI INSTRUCTIONS GEH-31-11013
...
1002
SCR 8-18 B PNP 3/8 S ZN GEH-WR01X10791

CONVECTION FAN

...
...
43
BLADE FAN CONVECTION GEH-WB02T10598
...
223
INSULATION CONVECT FAN GEH-WB35T10259
...
298
ELEMENT CONVX GEH-WB44X21671
...
511
MOTOR CONVX GEH-WB26X23476
...
514
COVER CONVECTION FAN GEH-WB37T10023
...
515
GASKET CONV FAN GEH-WB04T10071
...
516
DUCT CONVECTION FAN GEH-WB37T10022
...
951
SCREW 8-18 T20 3/8 IN GEH-WB01T10134
...
977
NUT HEX GEH-WB02T10608

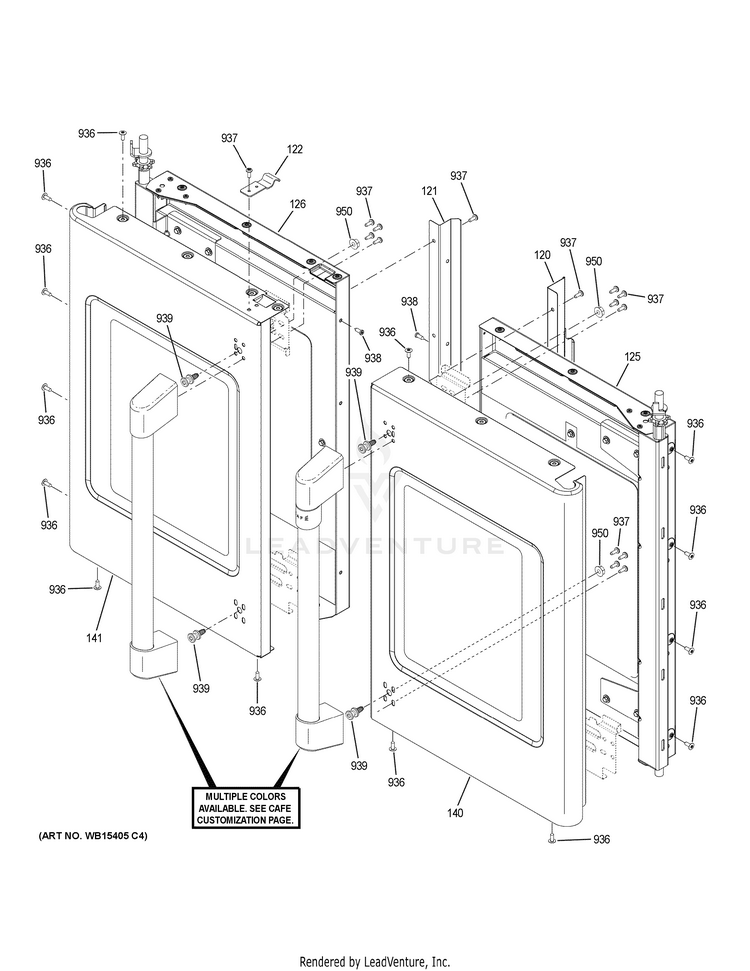

DOORS

...
...
120
SEAL CENTER RT GEH-WB35X23767
...
121
SEAL CENTER LT GEH-WB35X23775
...
122
PLATE STRIKE GEH-WB10X23776
...
125
DOOR INR ASM RT GEH-WB56X23765
...
126
DOOR INR ASM LT GEH-WB56X23773
...
140
WHITE SLATE OUTER DOOR ASM RT GEH-WB56X31860
...
141
WHITE SLATE OUTER DOOR ASM LT GEH-WB56X31861
...
936
SCR 8-18X GEH-WB01X24096
...
937
SCREW 8-32 MCH PNT-15 7/16 GEH-WB01X29985
...
938
SCREW 8-18 AB PNT15 1/2 GEH-WB01X23768
...
939
MOUNTING STUD GEH-WB01X31574
...
950
HEX NUT 1/4-20 GEH-WB01X31575
