GE Caf CTS90FP3N1D1 Electric Range

Model: CTS90FP3N1D1

Save Part Not Listed?
product name

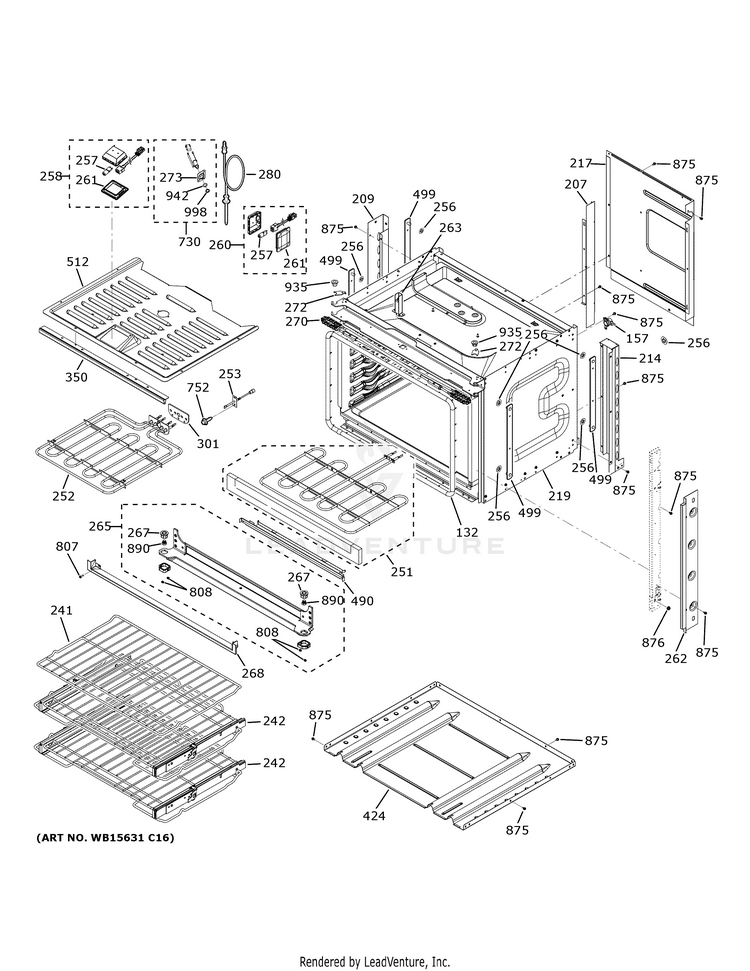

BODY PARTS

...
...
132
OVEN DOOR GASKET GEH-WB35X32825
...
157
SWITCH HIGH LIMIT GEH-WB24T10164
...
207
DIVIDER AIR CENTER GEH-WB34T10134
...
209
CHANNEL REAR GEH-WB34X35265
...
214
CHANNEL REAR GEH-WB55X10971
...
217
COVER - UPPER REAR DUCT GEH-WB34T10136
...
219
RETAINER INSLN SDE GEH-WB34X21913
...
241
OVEN RACK GEH-WB48X31582
...
242
SLIDING OVEN RACK ASM GEH-WB48X32924
...
251
HIDDEN BAKE ELEMENT KIT GEH-WB44X21667
...
252
ELEMENT BROIL GEH-WB44X40787
...
253
SENSOR ASM GEH-WB21X10165
...
256
RETAINER BOLT GEH-WB01T10107
...
257
LAMP HALOGEN BULB G9 GEH-WB25T10102
...
258
HALOGEN LAMP ASM GEH-WB25X31221
...
260
HALOGEN LAMP ASM GEH-WB25X31222
...
261
OVEN LIGHT LENS GEH-WB34X31317
...
262
TRIM VERT SIDE (BK) GEH-WB07T10732
...
263
SPRING ROLLER ASM GEH-WB10X23764
...
265
SUPPORT AND RECEIVER ASM GEH-WB07X30087
...
267
RECEIVER PIVOT ASM GEH-WB01X28392
...
268
TRIM BTM ASM GEH-WB07X23779
...
270
CHAIN ASM KIT GEH-WB10X24542
...
272
RETAINER BEARING GEH-WB34X28805
...
273
PROBE COVER GEH-WB02X8309
...
280
MEAT PROBE GEH-WB20T10024
...
301
GASKET BROIL ELEMENT GEH-WB35X21972
...
350
TRIM BROIL ELEMENT (BK) GEH-WB07T10787
...
424
COVER BOTTOM AIR DUCT GEH-WB34T10158
...
490
COVER HIDDEN BAKE GEH-WB55T10197
...
499
CAVITY BRACE ASM GEH-WB34X33153
...
512
PLATE - TOP OVEN GEH-WB37T10024
...
730
MEAT PROBE AND HARNESS GEH-WB18X23585
...
752
SCREW GEH-WB01K5200
...
807
SCREW-NICKLE GEH-WB01X1174
...
808
SCREW 1/4 X 32 RECESS A1 GEH-WB01X23771
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
876
LOCK NUT GEH-WB01T10127
...
890
SCR 3/8-24 MCH SK 1/4 GEH-WB01X28394
...
935
BEARING BRONZE GEH-WB01X23762
...
942
WASHER GEH-WB01X5573
...
998
NUT MEAT PROBE GEH-WB01X5572

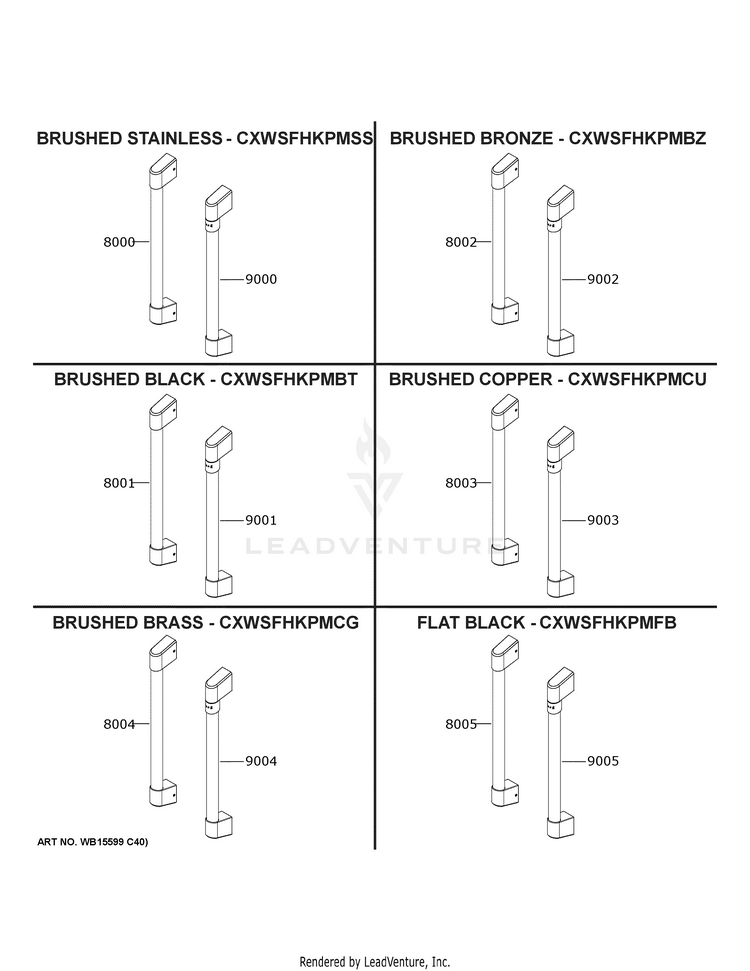

CAFE CUSTOMIZATION

...
...
8000
STAINLESS STEEL FD WALL OVEN HANDLE W/ C GEH-WB15X31829
...
8001
BRUSHED BLACK HANDLE W/ CAF BAND GEH-WB15X33788
...
8002
BRONZE FD WALL OVEN HANDLE W/ CAF Badge GEH-WB15X33430
...
8003
BRUSHED COPPER HANDLE W/ CAF BAND GEH-WB15X33774
...
8004
BRUSHED BRASS HANDLE & CAP ASM FD GEH-WB03X46020
...
8005
FLAT BLACK HANDLE W/ CAF BAND GEH-WB15X45975
...
9000
STAINLESS STEEL FD WALL OVEN HANDLE GEH-WB15X31826
...
9001
BRUSHED BLACK HANDLE GEH-WB15X33783
...
9002
BRONZE FD WALL OVEN HANDLE GEH-WB15X33429
...
9003
BRUSHED COPPER HANDLE FD GEH-WB15X33784
...
9004
BRUSHED BRASS HANDLE & CAP ASM FD GEH-WB03X46019
...
9005
FLAT BLACK HANDLE FD GEH-WB15X45974

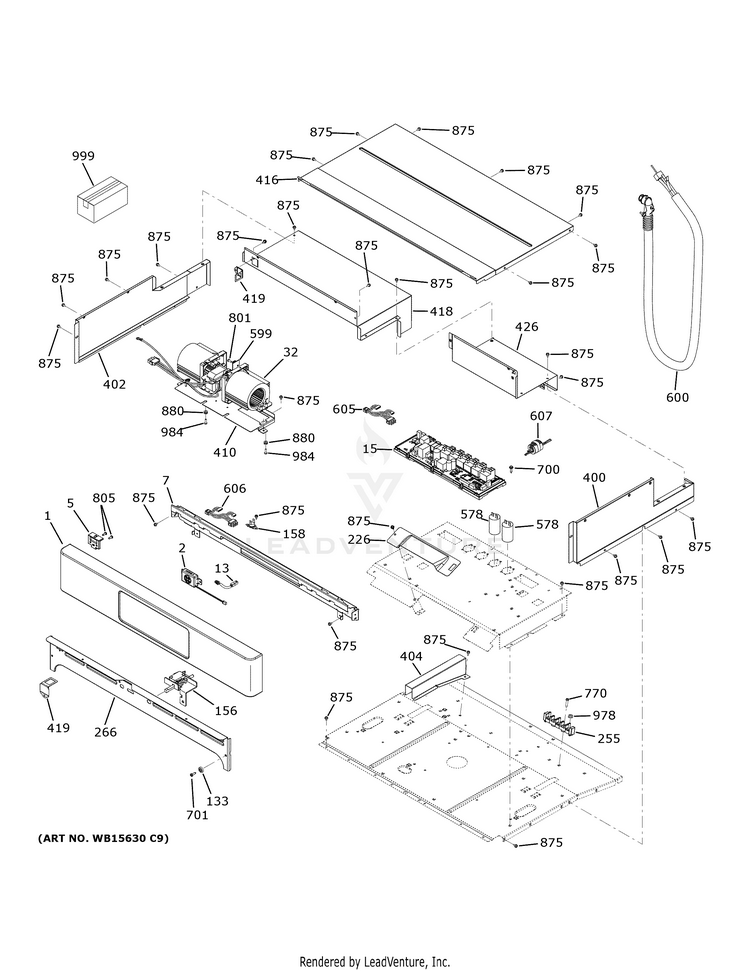

CONTROL PANEL

...
...
1
STAINLESS UI LCD CONTROL W/ WI-FI BOARD GEH-WB36X34998
...
2
SPEAKER 70C 3W GEH-WB27X33354
...
5
CONTROL PANEL SUPPORT BRACKET GEH-WB34X29268
...
7
BRACKET CNTL PNL MTG GEH-WB34X28389
...
13
JUMPER GEH-WB18X30704
...
15
BOARD MACHINE CONTROL RC17 GEH-WB27X33833
...
32
FAN BLOWER GEH-WB26X31060
...
133
BUMPER DOOR GEH-WB03T10341
...
156
SWITCH PLATE ASM GEH-WB24X23760
...
158
SWITCH LIMIT GEH-WB24X35587
...
226
COVER LATCH ACCESS GEH-WB34X33875
...
255
BLOCK TERMINAL GEH-WB17T10024
...
266
TRIM VENT UPPER GEH-WB07X34840
...
400
COVER TOP RIGHT EDGE GEH-WB34T10164
...
402
COVER TOP LEFT EDGE GEH-WB44T10126
...
404
CHANNEL UPPER AIR VENT GEH-WB34T10150
...
410
BRACKET UPPER FAN MOUNT GEH-WB37T10026
...
416
COVER HOUSING FRT GEH-WB34X28390
...
418
COVER TOP REAR GEH-WB24X32772
...
419
RJ45 BRACKET GEH-WB24X33028
...
426
COVER WIRE REAR GEH-WB35T10273
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
599
BOARD FAN SENSOR GEH-WB27T11463
...
600
CONDUIT WIRE SWO GEH-WB18X35246
...
600
OPTIONAL 6 FT CONDUIT GEH-WB18T10578
...
605
MAIN HARNESS WIRE GEH-WB18X32920
...
606
LATCH COM HARNESS GEH-WB18X34718
...
607
UI COM AND RJ45 HARNESS GEH-WB18X32919
...
700
WZ04X0408 GEH-WZ4X416
...
701
SCR 8-18 AB TRT20NBS 5/8 GEH-WB01X21650
...
770
SCREW GEH-WB01K5072
...
801
6-19 X 1/4 TORX PAN HEAD GEH-WD02X10129
...
805
SCREW ST8-18X.500TRBRNI GEH-WB01K5062
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
880
GROMMET GEH-WB01T10128
...
978
HEX NUT GEH-WB01X1259
...
984
SCREW 7-19 1/4HEX 1/2IN GEH-WB01T10130
...
999
PM INSTALL INSTRUCTIONS GEH-31-2000181
...
999
PM INSTRUCTIONS INSTALL GEH-31-11162
...
999
PM INSTALL INSTRUCTIONS GEH-31-11159
...
999
MANUAL U&C TIP SHEET GEH-49-80597
...
999
PM INSTRUCTIONS INSTALL GEH-31-10872
...
999
LUBRICANT CLEANER GEH-WB02T10303
...
999
PM MINI MANUAL AND WIRING GEH-31-2000265
...
999
PM OWNERS MANUAL GEH-49-2000381
...
999
PM QUICK OWNERS MANUAL GEH-49-2000258

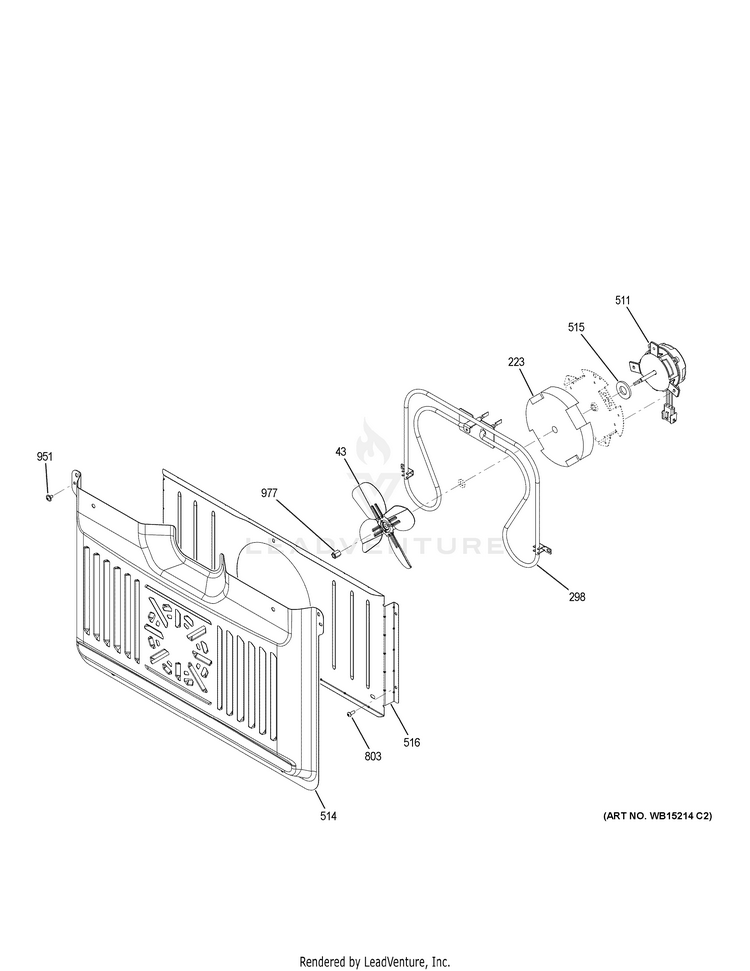

CONVECTION FAN

...
...
43
BLADE FAN CONVECTION GEH-WB02T10598
...
223
INSULATION CONVECT FAN GEH-WB35T10259
...
298
ELEMENT CONVX GEH-WB44X21671
...
511
MOTOR CONVX GEH-WB26X23476
...
514
COVER CONVECTION FAN GEH-WB37T10023
...
515
GASKET CONV FAN GEH-WB04T10071
...
516
DUCT CONVECTION FAN GEH-WB37T10022
...
803
SCREW GEH-WB01X21742
...
951
SCREW 8-18 T20 3/8 IN GEH-WB01T10134
...
977
NUT HEX GEH-WB02T10608

DOOR LOCK

...
...
150
LATCH ASM GEH-WB10X28391
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930

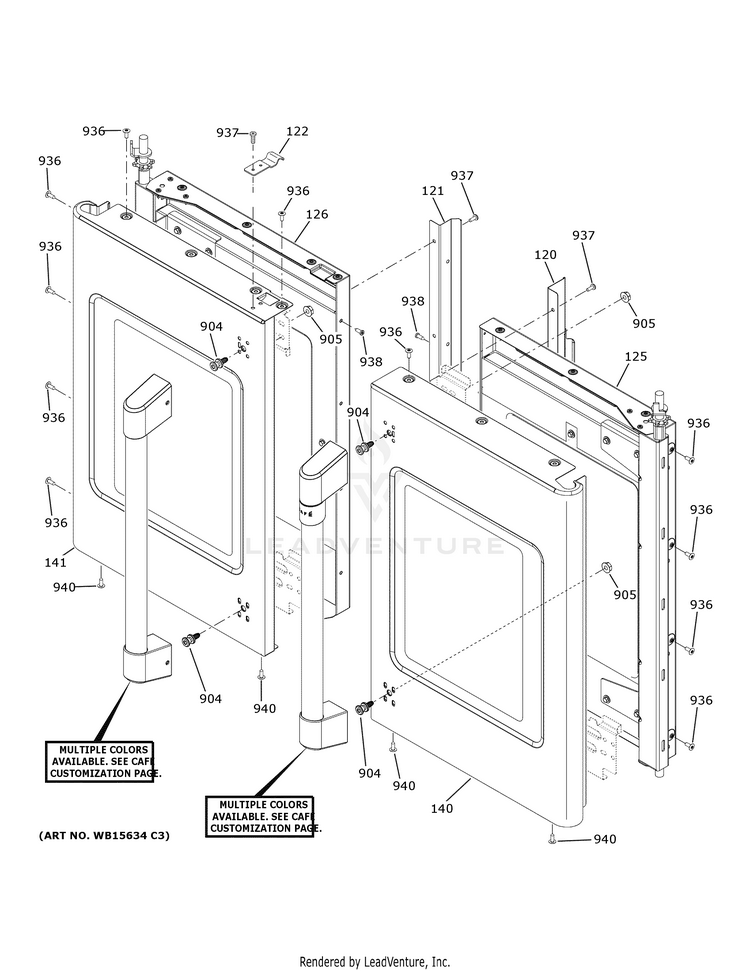

DOORS

...
...
120
SEAL CENTER RT GEH-WB35X23767
...
121
SEAL CENTER LT GEH-WB35X23775
...
122
PLATE STRIKE GEH-WB10X23776
...
125
DOOR INR ASM RT GEH-WB56X23765
...
126
DOOR INR ASM LT GEH-WB56X23773
...
140
DARK SLATE OUTER DOOR ASM RT GEH-WB56X31858
...
141
DARK SLATE OUTER DOOR ASM LT GEH-WB56X31857
...
904
MOUNTING STUD GEH-WB01X31574
...
905
HEX NUT 1/4-20 GEH-WB01X31575
...
936
SCR 8-18X GEH-WB01X24096
...
937
SCREW 8-32 MCH PNT-15 7/16 GEH-WB01X29985
...
938
SCREW 8-18 AB PNT15 1/2 GEH-WB01X23768
...
940
SCREW 8-18 X 3/8" GEH-WB01K5167
