GE Caf CTD90FP4N1W2 Electric Range

Model: CTD90FP4N1W2

Back To Assemblies

Save Part Not Listed?
product name

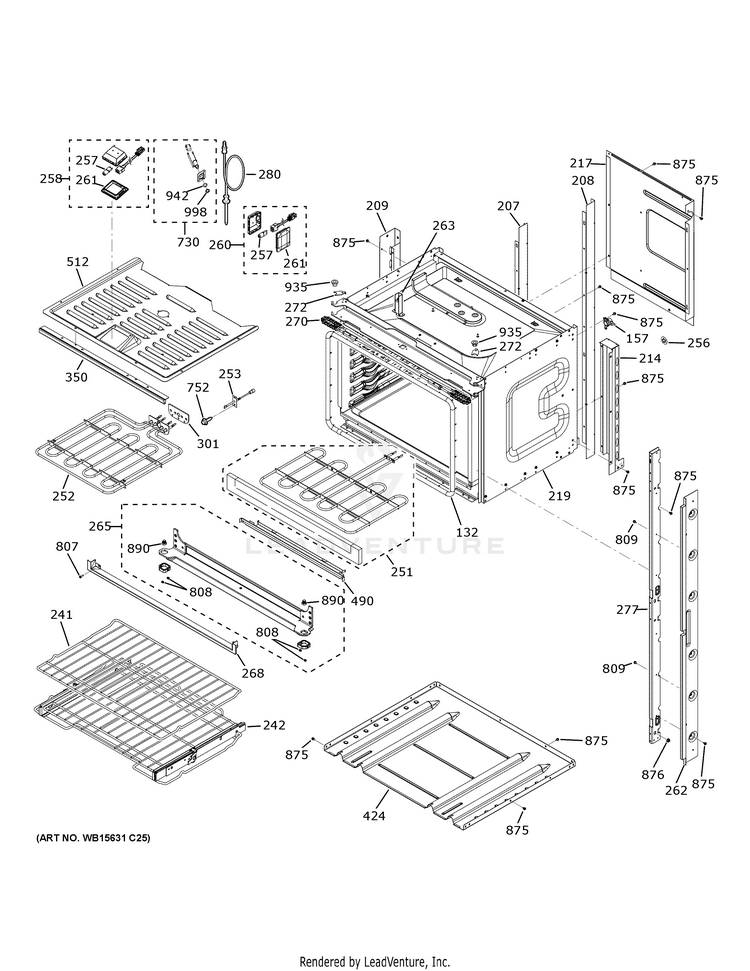

UPPER OVEN

...
...
132
OVEN DOOR GASKET GEH-WB35X32825
...
157
SWITCH HIGH LIMIT GEH-WB24T10164
...
207
DIVIDER AIR CENTER GEH-WB34T10134
...
208
DIVIDER AIR DOUBLE OVEN GEH-WB34T10140
...
209
CHANNEL REAR GEH-WB34X35265
...
214
CHANNEL REAR GEH-WB55X10971
...
217
COVER - UPPER REAR DUCT GEH-WB34T10136
...
219
RETAINER INSLN SDE GEH-WB34X21913
...
241
OVEN RACK GEH-WB48X31582
...
242
SLIDING OVEN RACK ASM GEH-WB48X32924
...
251
HIDDEN BAKE ELEMENT KIT GEH-WB44X21667
...
252
ELEMENT BROIL GEH-WB44X40787
...
253
SENSOR ASM GEH-WB21X10165
...
256
RETAINER BOLT GEH-WB01T10107
...
257
LAMP HALOGEN BULB G9 GEH-WB25T10102
...
258
HALOGEN LAMP ASM GEH-WB25X31221
...
260
HALOGEN LAMP ASM GEH-WB25X31222
...
261
OVEN LIGHT LENS GEH-WB34X31317
...
262
WHITE SLATE VERTICAL SIDE TRIM GEH-WB07X31853
...
263
SPRING ROLLER ASM GEH-WB10X23764
...
265
SUPPORT AND RECEIVER ASM GEH-WB07X29084
...
268
WHITE SLATE BOTTOM TRIM GEH-WB07X31723
...
270
CHAIN ASM KIT GEH-WB10X24542
...
272
RETAINER BEARING GEH-WB34X28805
...
277
VERTICAL BRACE ASM LT GEH-WB07X28521
...
277
VERTICAL BRACE ASM RT GEH-WB07X28522
...
280
MEAT PROBE GEH-WB20T10024
...
301
GASKET BROIL ELEMENT GEH-WB35X21972
...
350
TRIM BROIL ELEMENT (BK) GEH-WB07T10787
...
424
COVER BOTTOM AIR DUCT GEH-WB34T10158
...
490
COVER HIDDEN BAKE GEH-WB55T10197
...
512
PLATE - TOP OVEN GEH-WB37T10024
...
730
MEAT PROBE AND HARNESS GEH-WB18X23585
...
752
SCREW GEH-WB01K5200
...
807
SCREW-WHITE GEH-WR01X10788
...
807
SCREW-NICKLE GEH-WB01X1174
...
808
SCREW 1/4 X 32 RECESS A1 GEH-WB01X23771
...
808
TRIM SCREW-BLK GEH-WB01K5173
...
809
TRIM SCREW-WHITE GEH-WB01K5172
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
876
LOCK NUT GEH-WB01T10127
...
890
SCR 3/8-24 MCH SK 1/4 GEH-WB01X28394
...
935
BEARING BRONZE GEH-WB01X23762
...
942
WASHER GEH-WB01X5573
...
998
NUT MEAT PROBE GEH-WB01X5572
