GE Caf CTD70DP2N1S1 Electric Range

Model: CTD70DP2N1S1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

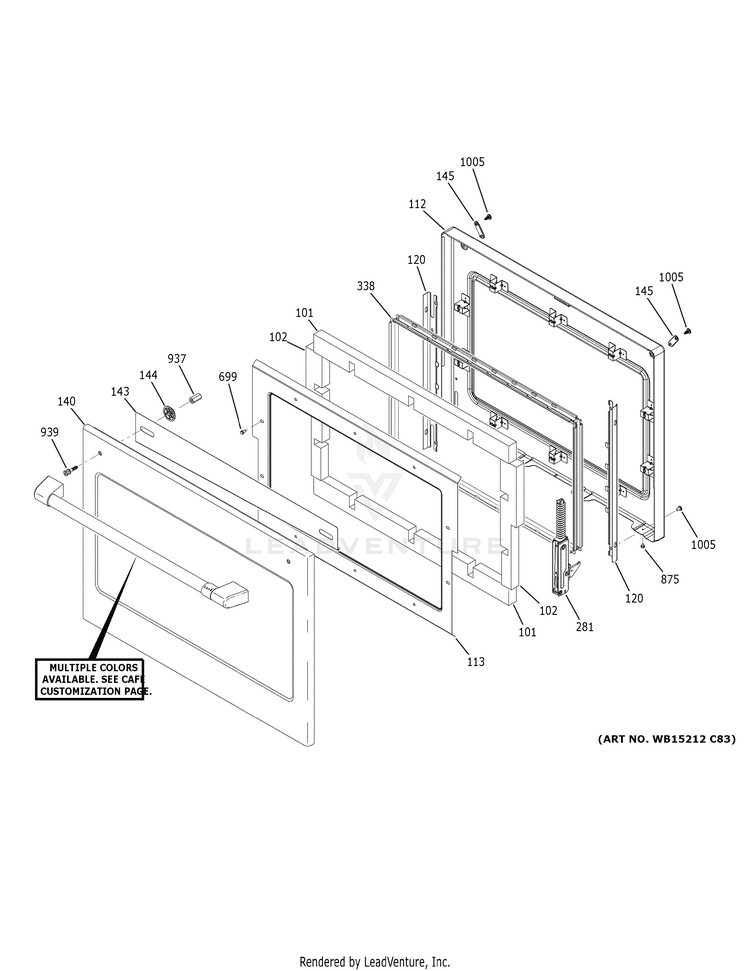

UPPER DOOR

...
...
101
INSULATION DR TOP GEH-WB35X21737
...
102
DOOR SIDE INSULATION GEH-WB35X31513
...
112
OVEN DOOR LINER ASM GEH-WB63X32569
...
113
DOOR INSULATION RETAINER GEH-WB34X31516
...
120
LINER SUPPORT GEH-WB34X28482
...
140
STAINLESS OUTER DOOR GEH-WB56X35470
...
143
DEFLECTOR OVEN DOOR GEH-WB34T10142
...
144
SPACER DOOR HDL GEH-WB02T10524
...
145
DOOR LINER PLUG GEH-WB02X32816
...
281
DOOR HINGE LT GEH-WB10X30584
...
281
DOOR HINGE RT GEH-WB10X30583
...
338
WINDOW PACK ASM GEH-WB56X27480
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
937
REINFORCEMENT SPACER GEH-WB01X31717
...
939
MOUNTING STUD GEH-WB01X31573
...
1005
SCREW 10-32 TR T GEH-WB01T10008
