GE Caf CHS950P2M1S1 Gas Range Or Dual Fuel

Model: CHS950P2M1S1

Back To Assemblies

Save Part Not Listed?
product name

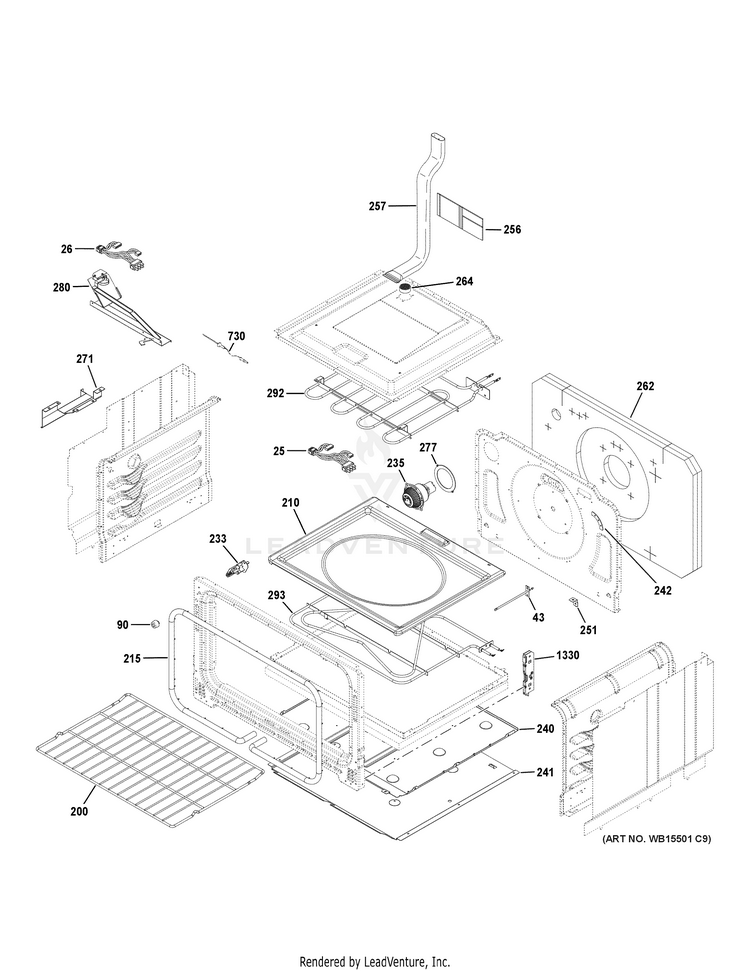

LOWER OVEN

...
...
25
HARNESS BAKE GEH-WB18X31611
...
26
HARNESS LATCH GEH-WB18X31621
...
43
SENSOR-OVEN GEH-WB23X5340
...
90
FRAME FRONT BUMPER GEH-WB02X28738
...
200
OVEN RACK GEH-WB48X21508
...
210
BOTTOM OVEN GEH-WB63X28661
...
215
GASKET OVEN LOWER CAVITY GEH-WB32X29538
...
233
PLUNGER SWITCH GEH-WB24X27550
...
235
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
240
BOTTOM RANGE GEH-WB63X28975
...
241
BOTTOM RANGE DEFLECTOR GEH-WB63X28663
...
242
BRACKET OVEN CORNER GEH-WB02K0041
...
251
ANGLE SUPPORT GEH-WB02K0003
...
256
VENT INSULATION GEH-WB35X28921
...
257
VENT GEH-WB34X28916
...
262
INSULATION OVEN BACK GEH-WB35X28789
...
264
SUPPORT CATALYST GEH-WB35K10028
...
271
COVER LATCH GEH-WB34X21619
...
277
GASKET OVEN LIGHT GEH-WB32K10044
...
280
LATCH AUTOMATIC GEH-WB10X28795
...
292
BROIL ELEMENT GEH-WB44X28668
...
293
HIDDEN BAKE ELEMENT GEH-WB30X28763
...
730
PROBE GEH-WB20X5050
...
1330
RECEIVER HINGE GEH-WB10X28563
