GE Caf CDT875P3N0D1 Dishwasher

Model: CDT875P3N0D1

Back To Assemblies

Save Part Not Listed?
product name

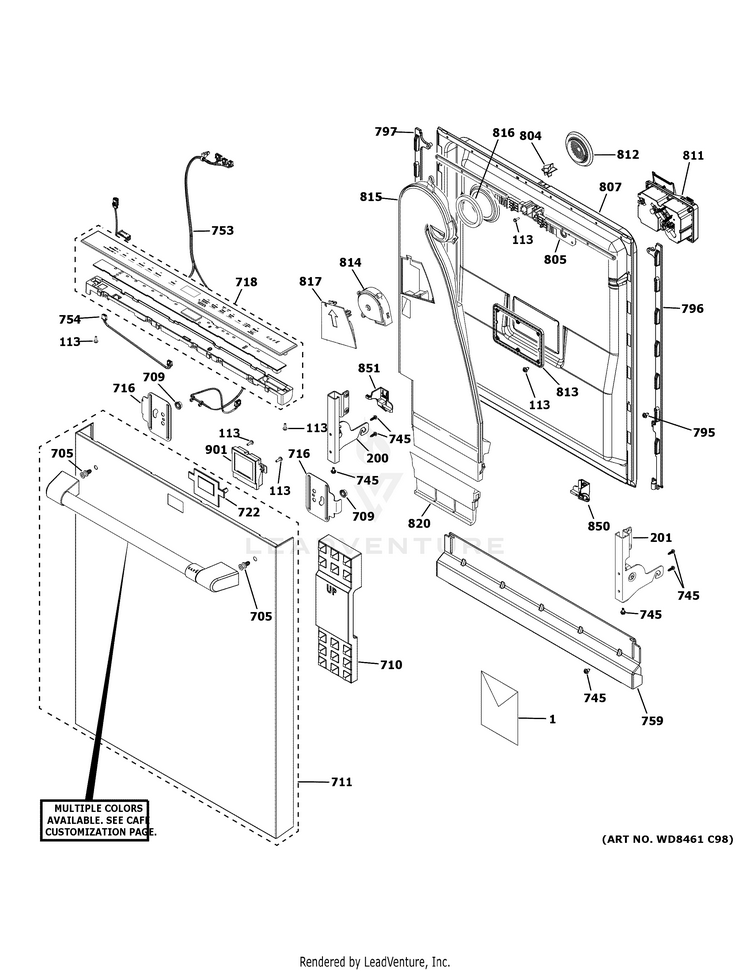

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM INSTALL INSTRUCTIONS GEH-31-4000216
...
1
PM QUICK OWNERS MANUAL GEH-49-4000041
...
1
PM OWNERS MANUAL GEH-49-4000042
...
1
PM MINI MANUAL AND WIRING GEH-31-4000209
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
200
ARM HINGE ASM LH GEH-WD14X23739
...
201
ARM HINGE ASM RH GEH-WD14X23738
...
705
FASTENER DOOR HANDLE GEH-WR01X11007
...
709
LOCK NUT 5/16-18 HX 1/2 S GEH-WD02X25303
...
710
BLOCK FOAM DOOR GEH-WD01X10585
...
711
MATTE BLACK CAF OUTER DOOR ASM GEH-WD34X25676
...
716
HANDLE BRACKET GEH-WD01X25862
...
718
CONFIGURED UI CONTROL GEH-WD21X26004
...
722
TINTED LENS ASM GEH-WD01X25671
...
745
SCR 10-32 GX IHXW 9/16 S GEH-WD01X22514
...
753
DOOR HARNESS ASM GEH-WD21X25672
...
754
LED BOARD HARNESS GEH-WD21X25669
...
759
TOE KICK PAINTED ASM GEH-WD27X26218
...
795
SCREW T15 8-16 PLASTITE GEH-WD02X22628
...
796
ATTACH STRIP RH GEH-WD01X22836
...
797
ATTACH STRIP GEH-WD01X10634
...
804
STRIKER LATCH GEH-WD13X10071
...
805
ATTACHMENT STRIP TOP GEH-WD13X22837
...
807
STAINLESS INNER DOOR ASM GEH-WD27X26001
...
811
DETERGENT DISP SENSOR GEH-WD12X24060
...
812
VENT COVER GEH-WD01X25673
...
813
PLATE DETERGENT GEH-WD12X10462
...
814
BLOWER GASKET ASM GEH-WD08X25635
...
815
DOOR CONDUIT VENT ASM GEH-WD12X25634
...
816
DOOR VENT SEAL GEH-WD08X10092
...
817
CONDUIT FAN COVER GEH-WD01X25633
...
820
DOOR VENT GEH-WD24X26142
...
850
TRIM DOOR RH GEH-WD12X22835
...
851
TRIM DOOR LH GEH-WD12X22834
...
901
LCD BOARD AND HOUSING ASM GEH-WD21X25558
