GE Caf CDT800P2N0S1 Dishwasher

Model: CDT800P2N0S1

Back To Assemblies

Save Part Not Listed?
product name

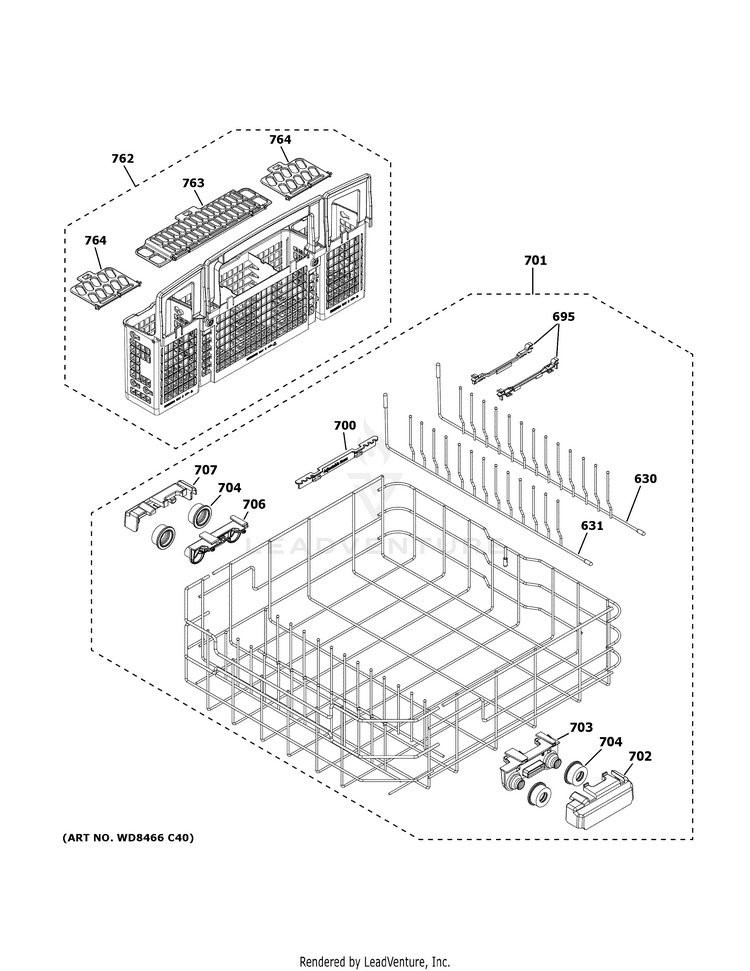

LOWER RACK ASSEMBLY

...
...
630
FDT COATED LOWER RACK GEH-WD28X20164
...
631
FDT COATED LOWER RACK GEH-WD28X20165
...
695
CLIP LOWER RACK GEH-WD12X20171
...
700
INDEXER GEH-WD28X20166
...
701
RACK LOWER ASM COATED GEH-WD28X22827
...
702
COVER ROLLER GEH-WD12X20161
...
703
CARRIER ROLLER GEH-WD12X20158
...
704
ROLLER LOWER RACK GEH-WD12X10435
...
706
CARRIER ROLLER GEH-WD12X20159
...
707
COVER ROLLER GEH-WD12X20160
...
762
SILVERWARE BASKET ASM GEH-WD28X22624
...
763
LID BASKET MIDDLE GEH-WD28X20153
...
764
LID BASKET SIDE GEH-WD28X20156
