GE Caf CDT706P2M5S1 Dishwasher

Model: CDT706P2M5S1

Back To Assemblies

Save Part Not Listed?
product name

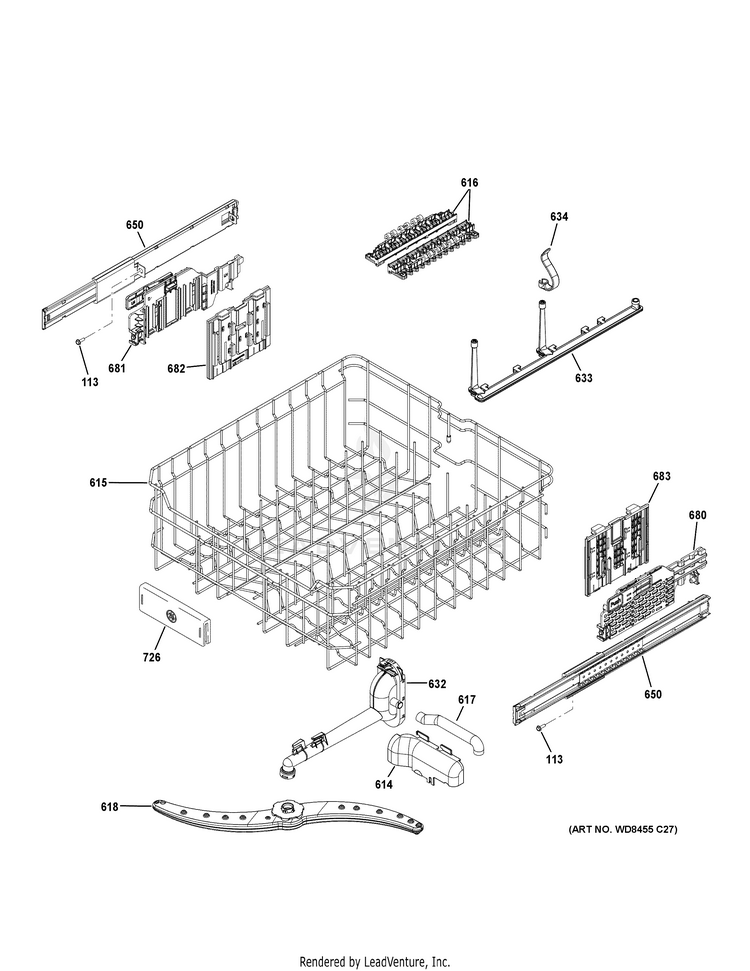

UPPER RACK ASSEMBLY

...
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
614
COVER BOTTLE BLASTER GEH-WD24X20263
...
615
RACK UPPER ASM COATED GEH-WD28X22843
...
616
SHELF ASM STEM SAFE GEH-WD28X20312
...
617
HOSE BOTTLE BLASTER GEH-WD24X20262
...
618
ARM SPRAY MID ASM GEH-WD22X10089
...
632
CONDUIT MID BLASTER ASM GEH-WD21X20309
...
633
BOTTLE BLASTER ASM GEH-WD22X25086
...
634
BOTTLE WASHER CLIP GEH-WD12X22618
...
650
INNER RAIL UPR RACK ASM GEH-WD30X20110
...
680
BRACKET ASM UPPER RACK GEH-WD12X20108
...
681
BRACKET ASM UPPER RACK GEH-WD12X20109
...
682
BRACKET FIXED GEH-WD12X20112
...
683
BRACKET FIXED GEH-WD12X20113
...
726
HANDLE COVER RACK GEH-WD09X24947
