GE CTS90DP3M1D1 Electric Range

Model: CTS90DP3M1D1

Save Part Not Listed?
product name

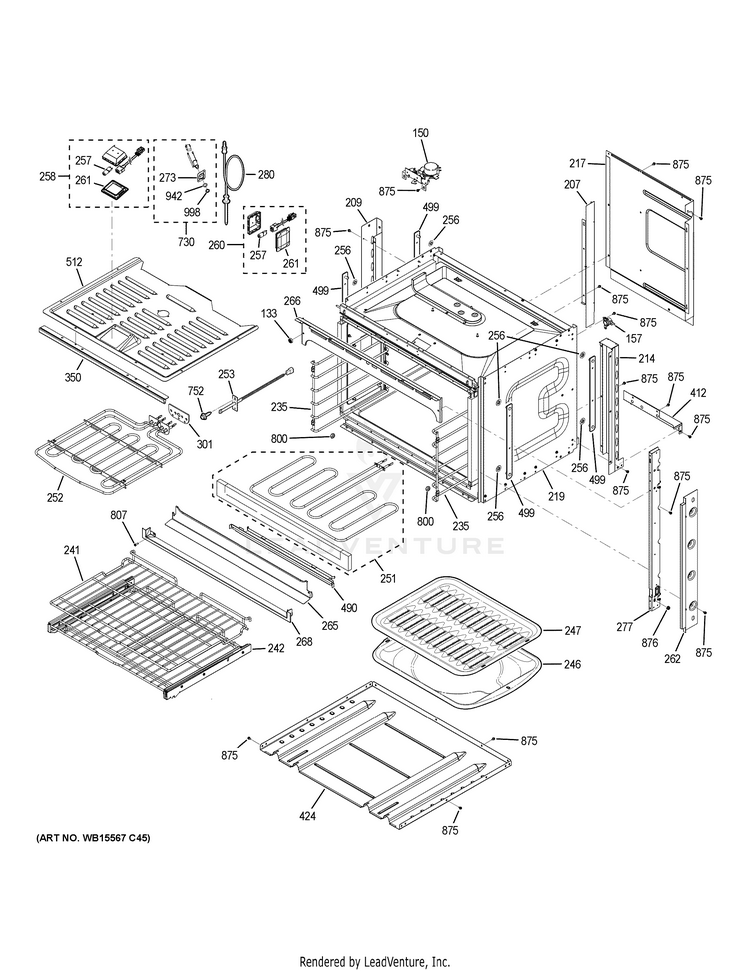

BODY PARTS

...
...
133
BUMPER DOOR GEH-WB03T10341
...
150
LATCH ASM GEH-WB10X28391
...
157
SWITCH HIGH LIMIT GEH-WB24T10164
...
207
DIVIDER AIR CENTER GEH-WB34T10134
...
209
CHANNEL REAR LT GEH-WB34X21910
...
214
CHANNEL REAR GEH-WB55X10971
...
217
COVER - UPPER REAR DUCT GEH-WB34T10136
...
219
RETAINER INSLN SDE GEH-WB34X21913
...
235
GUIDE OVN RACK RT GEH-WB48X21765
...
235
GUIDE OVN RACK LT GEH-WB48X21766
...
241
RACK FLAT GEH-WB48X23857
...
242
RACK OVN SLIDE ASM GEH-WB48X21764
...
246
BROILER PAN GEH-WB48X31885
...
247
BROILER PAN GRID GEH-WB48X31884
...
251
HIDDEN BAKE ELEMENT KIT GEH-WB44X21667
...
252
ELEMENT BROIL ASM GEH-WB44X23640
...
253
SENSOR ASM GEH-WB21X10165
...
256
RETAINER BOLT GEH-WB01T10107
...
257
LAMP HALOGEN BULB G9 GEH-WB25T10102
...
258
HALOGEN LAMP ASM GEH-WB25X31221
...
260
HALOGEN LAMP ASM GEH-WB25X31223
...
261
OVEN LIGHT LENS GEH-WB34X31317
...
262
TRIM VERT SIDE (BK) GEH-WB07T10732
...
265
TRIM VENT LWR GEH-WB07X21187
...
266
TRIM VENT UPPER BLACK GEH-WB07T10800
...
268
TRIM BOTTOM CABINET GEH-WB07T10761
...
273
PR0BE COVER GEH-WB34K5140
...
277
BRACE VERTICAL RIGHT BLK GEH-WB07T10754
...
277
BRACE VERTICAL LEFT BLK GEH-WB07T10755
...
280
PROBE THERMISTOR GEH-WB20T10025
...
301
GASKET BROIL ELEMENT GEH-WB35X21972
...
350
TRIM BROIL ELEMENT (BK) GEH-WB07T10787
...
412
COVER LOWER RT AIR DUCT GEH-WB34T10151
...
424
COVER BOTTOM AIR DUCT GEH-WB34T10158
...
490
COVER HIDDEN BAKE GEH-WB55T10197
...
499
CAVITY BRACE ASM GEH-WB34X30789
...
512
PLATE - TOP OVEN GEH-WB37T10024
...
730
MEAT PROBE AND HARNESS GEH-WB18X23585
...
752
SCREW GEH-WB01K5200
...
800
RACK GUIDE NUT GEH-WB01X21270
...
807
SCREW-NICKLE GEH-WB01X1174
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
876
LOCK NUT GEH-WB01T10127
...
942
WASHER GEH-WB01X5573
...
998
NUT MEAT PROBE GEH-WB01X5572

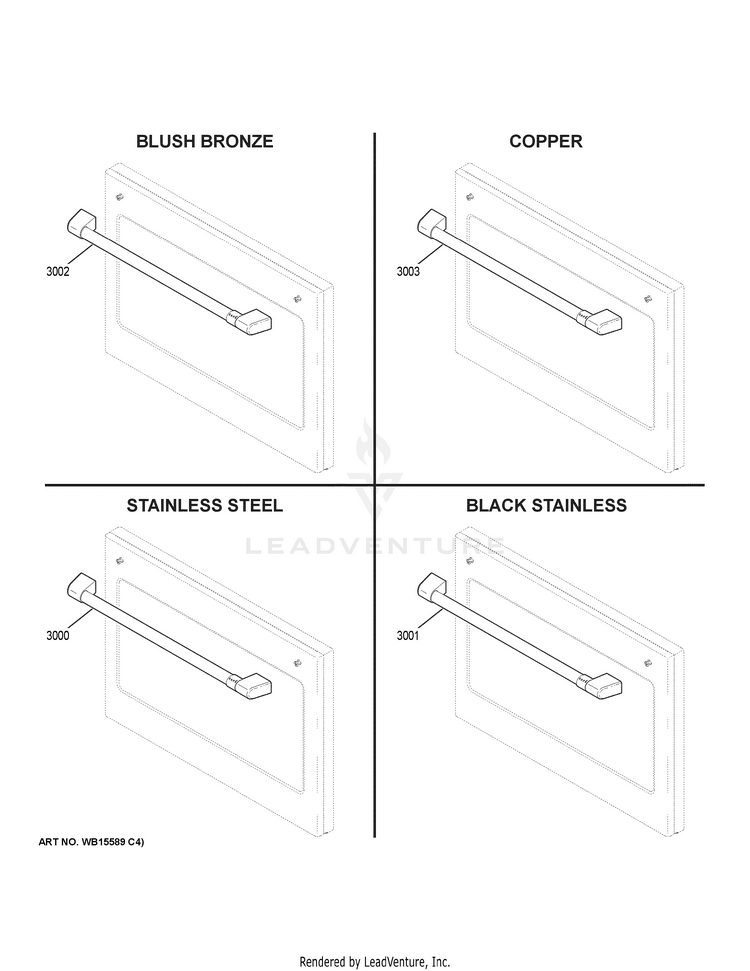

CAFE CUSTOMIZATION

...
...
3000
STAINLESS STEEL WALL OVEN HANDLE W/ CAF GEH-WB15X31719
...
3001
BLACK STAINLESS WALL OVEN HANDLE W/ CAF GEH-WB15X31725
...
3002
BLUSH BRONZE WALL OVEN HANDLE W/ CAF BAN GEH-WB15X31722
...
3003
COPPER RANGE HANDLE W/ CAF BAND GEH-WB15X31726

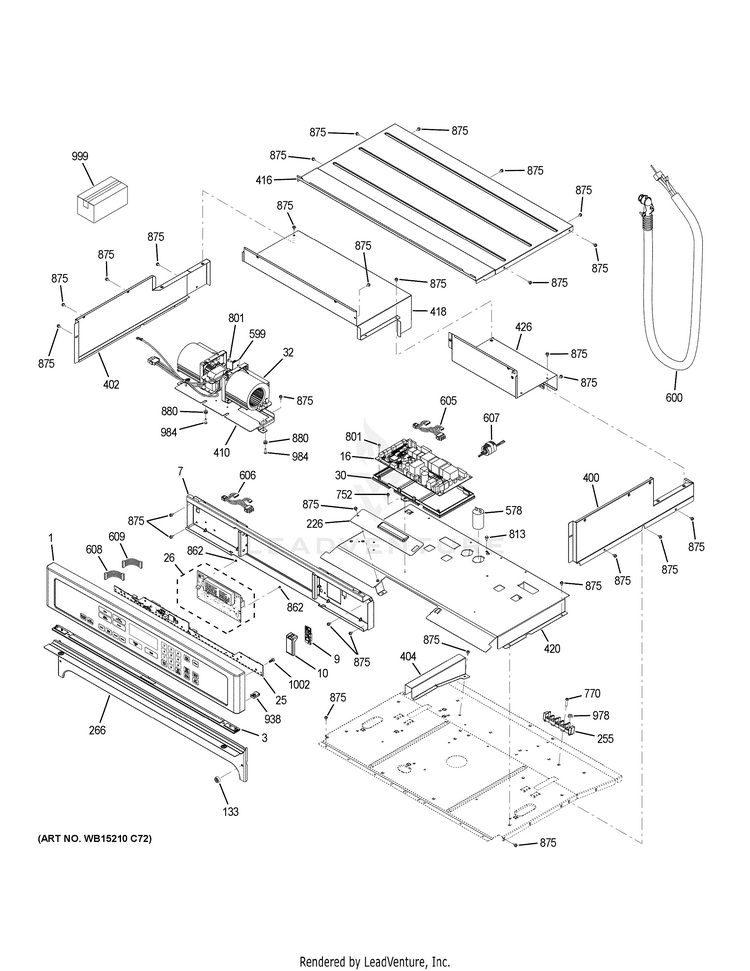

CONTROL PANEL

...
...
1
LABEL WIRE DIAGRAM GEH-229C6152P006
...
1
DARK SLATE USER INTERFACE PANEL GEH-WB56X31715
...
3
DIFFUSER AND TAPE ASM GEH-WB34X25767
...
7
CONTROL PANEL MOUNTING BRACKET GEH-WB34X29940
...
9
BOARD WIFI CAT MODULE GEH-WB27X29798
...
10
HOUSING TRANSCEIVER GEH-WB02X20265
...
16
BOARD MACHINE CONTROL GEH-WB27X25554
...
25
BOARD LED LIGHTS GEH-WB27X23548
...
26
CONTROL BOARD AND OVERLAY ASM WHITE LED GEH-WB27X29602
...
30
FRAME BOARD - PLASTIC GEH-WB02X20274
...
32
FAN BLOWER GEH-WB26X31060
...
133
BUMPER DOOR GEH-WB03T10341
...
226
COVER LATCH ACCESS GEH-WB34T10161
...
255
BLOCK TERMINAL GEH-WB17T10024
...
266
TRIM VENT UPPER BLACK GEH-WB07T10800
...
400
COVER TOP RIGHT EDGE GEH-WB34T10164
...
402
COVER TOP LEFT EDGE GEH-WB44T10126
...
404
CHANNEL UPPER AIR VENT GEH-WB34T10150
...
410
BRACKET UPPER FAN MOUNT GEH-WB37T10026
...
416
COVER HOUSING FRT GEH-WB34X28390
...
418
COVER TOP REAR GEH-WB34T10157
...
420
AIR DIVIDER GEH-WB34X30448
...
426
COVER WIRE REAR GEH-WB35T10273
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
599
BOARD FAN SENSOR GEH-WB27T11463
...
600
CONDUIT WIRE ASM GEH-WB18X30600
...
600
OPTIONAL 6 FT CONDUIT GEH-WB18T10578
...
605
HARNESS WIRE MAIN GEH-WB18X23721
...
606
HARNESS WIRE LATCH COM GEH-WB18X23726
...
607
HARNESS WIRE COM GEH-WB18X23722
...
608
HARNESS WIRE DISPLA-WIFI GEH-WB18T10557
...
609
HARNESS WIRE LED JUMPER GEH-WB18T10558
...
752
SCREW GEH-WB01K5200
...
770
SCREW GEH-WB01K5072
...
801
6-19 X 1/4 TORX PAN HEAD GEH-WD02X10129
...
813
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
862
SCREW GEH-WB01X1178
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
880
GROMMET GEH-WB01T10128
...
938
CLIP GEH-WB01K5209
...
978
HEX NUT GEH-WB01X1259
...
984
SCREW 7-19 1/4HEX 1/2IN GEH-WB01T10130
...
999
PM INSTALL INSTRUCTIONS GEH-31-11161
...
999
PM INSTALL INSTRUCTIONS GEH-31-11159
...
999
PM OWNERS MANUAL GEH-49-80829
...
999
PM MANUAL MINI & WD ASM GEH-31-17328
...
999
INSTRUCTION INSTALL GEH-31-10882
...
999
MANUAL U&C TIP SHEET GEH-49-80597
...
999
PM INSTALL INSTRUCTIONS GEH-31-11129
...
999
PM INSTALL INSTRUCTIONS GEH-31-10957
...
1002
SCR 8-18 B PNP 3/8 S ZN GEH-WR01X10791

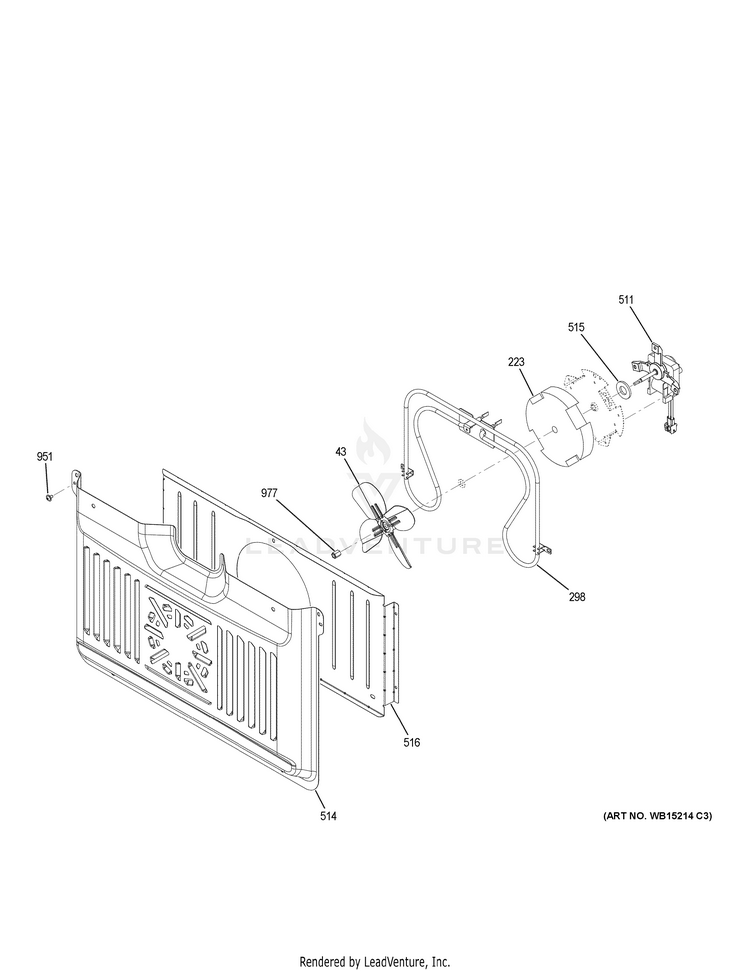

CONVECTION FAN

...
...
43
BLADE FAN CONVECTION GEH-WB02T10598
...
223
INSULATION CONVECT FAN GEH-WB35T10259
...
298
ELEMENT CONVX GEH-WB44X21671
...
511
CONVECTION MOTOR GEH-WB26X29518
...
514
COVER CONVECTION FAN GEH-WB37T10023
...
515
GASKET CONV FAN GEH-WB04T10071
...
516
DUCT CONVECTION FAN GEH-WB37T10022
...
951
SCREW 8-18 T20 3/8 IN GEH-WB01T10134
...
977
NUT HEX GEH-WB02T10608

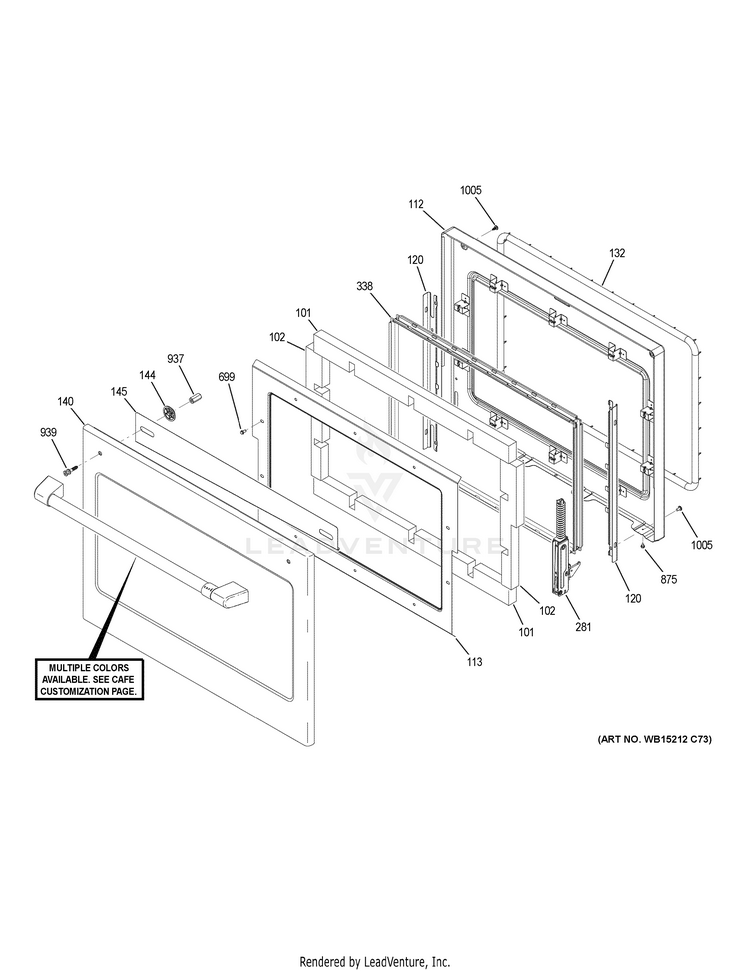

DOOR

...
...
101
INSULATION DR TOP GEH-WB35X21737
...
102
INSULATION DR SIDE GEH-WB35X21672
...
112
LINER OVEN DOOR ASM GEH-WB55T10199
...
113
RETAINER INSLN OVN DR GEH-WB34T10131
...
120
LINER SUPPORT GEH-WB34X28482
...
132
GASKET OVEN DOOR GEH-WB35X26196
...
140
DARK SLATE OUTER DOOR ASM GEH-WB56X31716
...
144
SPACER DOOR HDL GEH-WB02T10524
...
145
DEFLECTOR OVEN DOOR GEH-WB34T10142
...
281
DOOR HINGE LT GEH-WB10X30584
...
281
DOOR HINGE RT GEH-WB10X30583
...
338
WINDOW PACK ASM GEH-WB56X27480
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
937
REINFORCEMENT SPACER GEH-WB01X31717
...
939
MOUNTING STUD GEH-WB01X31573
...
1005
SCREW 10-32 TR T GEH-WB01T10008
