GE CGY366SEL1SS Gas Range Or Dual Fuel

Model: CGY366SEL1SS

Back To Assemblies

Save Part Not Listed?
product name

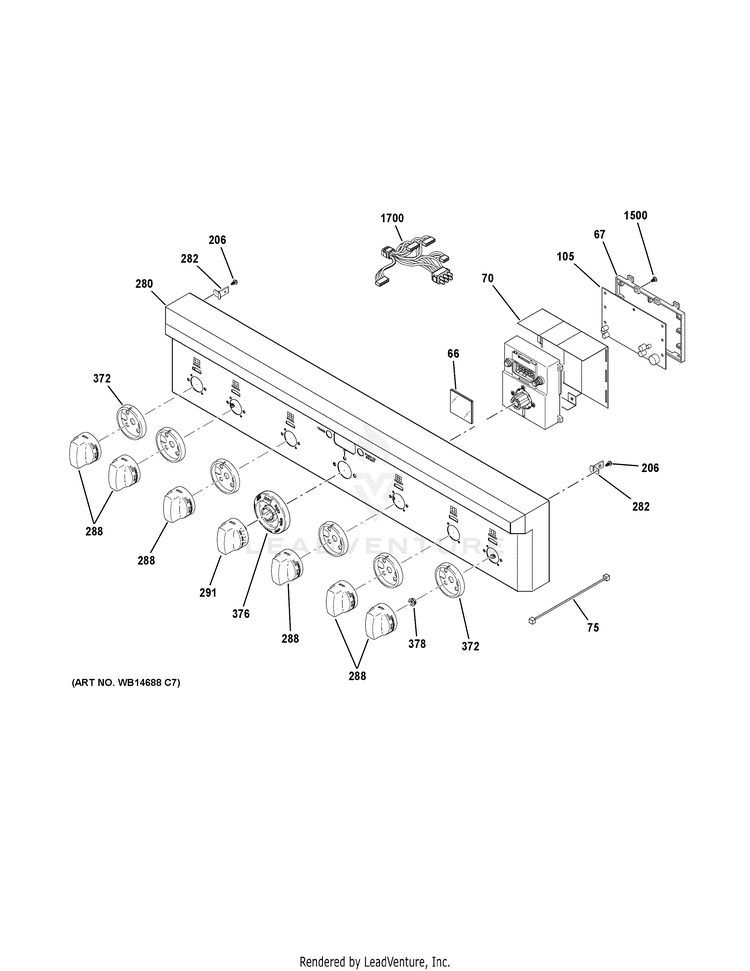

CONTROL PANEL

...
...
66
GLASS DISPLAY GEH-WB57K10134
...
67
BRACKET CONTROL GEH-WB02K10213
...
70
ENCODER ASM GEH-WB24K10081
...
75
HARNESS GEH-WB18K10085
...
105
CONTROL DISPLAY MODULE GEH-WB27K10305
...
206
SCREW GEH-WB01K10091
...
280
CONTROL PANEL & RAIL ASM GEH-WB36X30227
...
282
BRACKET CONTROL PANEL GEH-WB02K10211
...
288
KNOB ASM GEH-WB03X30219
...
291
KNOB ASM GEH-WB03X30218
...
372
BEZEL KNOB GEH-WB03X30031
...
376
BEZEL OVEN ASM GEH-WB03X30230
...
378
BUSHING BEZEL GEH-WB02K10217
...
1500
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
1700
HARNESS SERIAL DUAL GEH-WB24K10063
