GE CGU486P2M1S1 Gas Range Or Dual Fuel

Model: CGU486P2M1S1

Save Part Not Listed?
product name

Popular Parts

Popular Parts

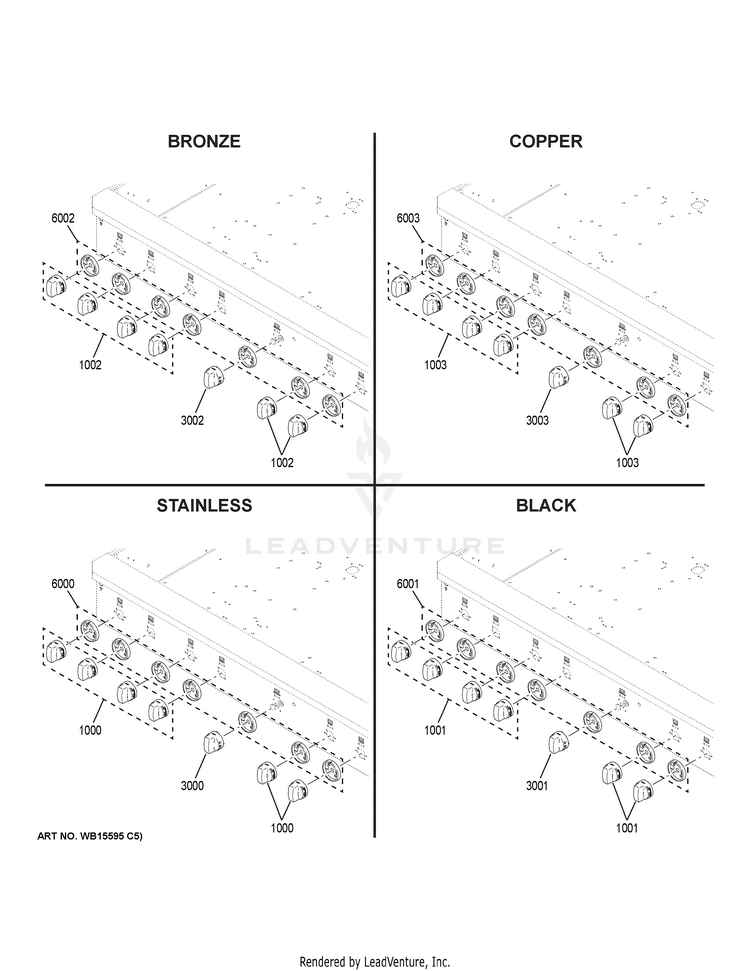

CAFE CUSTOMIZATION

...
...
1000
BRUSHED STAINLESS RANGE CONTROL KNOB GEH-WB03X31774
...
1001
BRUSHED BLACK RANGE CONTROL KNOB GEH-WB03X31975
...
1002
BRUSHED BRONZE RANGE CONTROL KNOB GEH-WB03X31778
...
1003
BRUSHED COPPER RANGE CONTROL KNOB GEH-WB03X31973
...
3000
BRUSHED STAINLESS GRIDDLE KNOB GEH-WB03X31776
...
3001
BRUSHED BLACK GRIDDLE KNOB GEH-WB03X31967
...
3002
BRUSHED BRONZE GRIDDLE KNOB GEH-WB03X31784
...
3003
BRUSHED COPPER GRIDDLE KNOB GEH-WB03X31969
...
6000
BEZEL KNOB GEH-WB03X30031
...
6001
BRUSHED BLACK RANGE KNOB BEZEL GEH-WB03X31959
...
6002
BRUSHED BRONZE RANGE KNOB BEZEL GEH-WB03X31775
...
6003
BRUSHED COPPER RANGE KNOB BEZEL GEH-WB03X31773

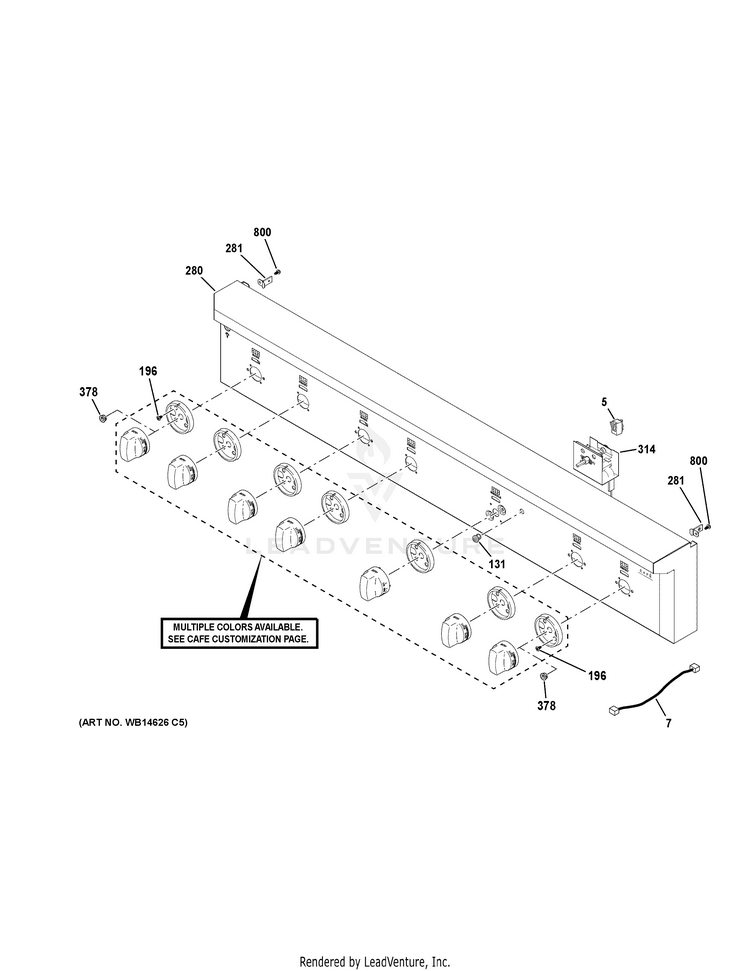

CONTROL PANEL

...
...
5
LAMP PILOT GEH-WB25K10007
...
7
HARNESS GEH-WB18K10085
...
131
LENS GEH-WB02X30231
...
196
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
280
CONTROL PANEL & RAIL ASM GEH-WB36X31794
...
281
BRACKET CONTROL PANEL GEH-WB02K10211
...
314
THERMOSTAT ASM GEH-WB21K10136
...
378
BUSHING BEZEL GEH-WB02K10217
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042

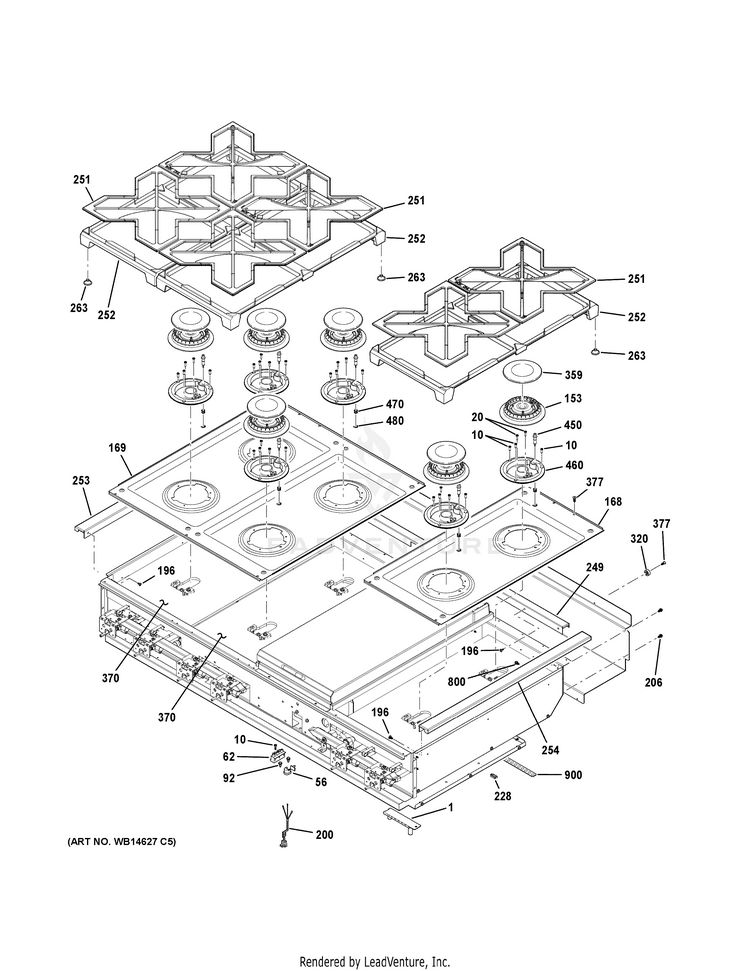

COOKTOP

...
...
1
CARRIER ORIFICE ASM GEH-WB28K10538
...
10
SCREW 8-32 MCH PNT15 GEH-WB01T10104
...
20
SCREW SIMMER MAIN HD GEH-WB01T10092
...
56
POWER CORD CLAMP GEH-WB02X9838
...
62
TERMINAL BLOCK GEH-WB17X0208
...
92
SCREW GROUND GEH-WB01X1261
...
153
BURNER HEAD ASM (18K) GEH-WB16T10043
...
168
PAN UNIT GEH-WB32X30019
...
169
PAN UNIT GEH-WB32X30020
...
196
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
200
LINE CORD ASM GEH-WB18K10048
...
206
SCREW GEH-WB01K10091
...
228
CLIP WIRE GEH-WB02X7066
...
249
STAINLESS STEEL TRIM BACK GEH-WB07X31816
...
251
GRATE GEH-WB31K10224
...
252
FRAME GRATE ASM GEH-WB31K10225
...
253
TRIM SIDE TOP LEFT GEH-WB07X31818
...
254
TRIM SIDE TOP RIGHT GEH-WB07X31821
...
263
FOOT GRATE GEH-WB02K10223
...
320
GROMMET HANDLE GEH-WB01K0010
...
359
CAP BURNER GEH-WB13T10067
...
370
INSULATION TOP GEH-WB35K10191
...
377
SCR 8-18 AB HW 1/2 S GEH-WB01T10115
...
450
ELECTRODE TOP GEH-WB13T10065
...
460
BASE BURNER 18K-SIMMER GEH-WB16T10047
...
470
SPRING IGNITER GEH-WB09T10011
...
480
WASHER IGNITER GEH-WB02T10323
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
900
BRACKET HOLD DOWN GEH-WB02K10271

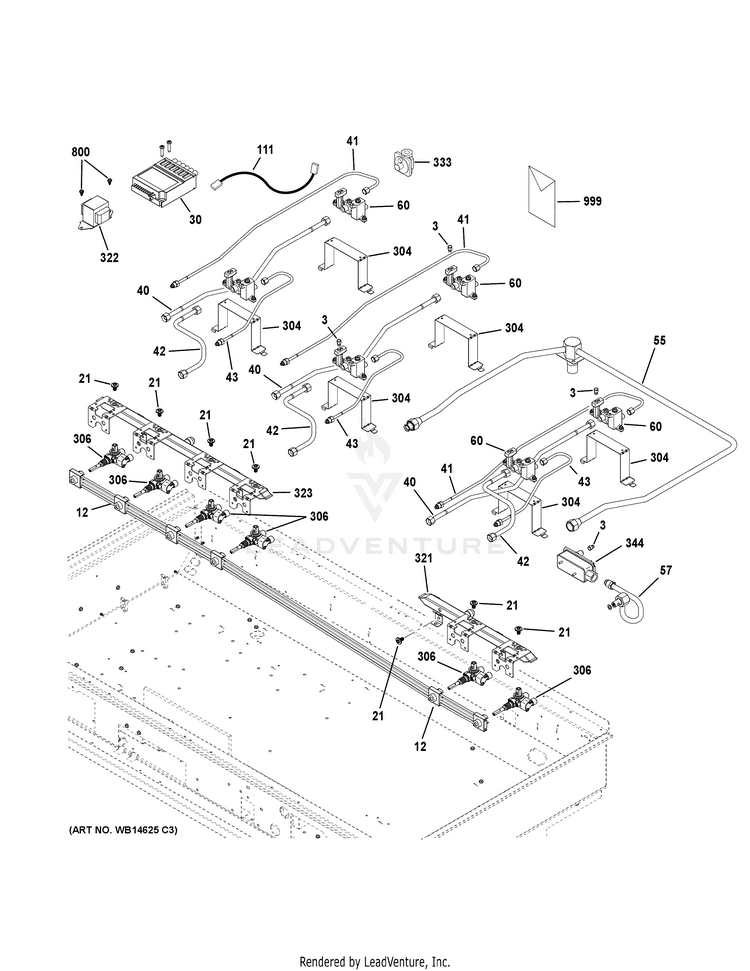

GAS & BURNER PARTS

...
...
3
SPUD ORIFICE GRIDDLE GEH-WB28K10529
...
3
ORIFICE SPUD LP MAIN GEH-WB28T10117
...
3
SPUD ORIFICE GRILL GEH-WB28K10530
...
3
ORIFICE SPUD (NG SIMMER) GEH-WB28T10159
...
3
ORIFICE SPUD (NG MAIN) GEH-WB28T10155
...
3
ORIFICE SPUD LP MAIN GEH-WB28T10118
...
12
HARNESS BURNER BOX GEH-WB18X30024
...
21
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
30
MODULE SPARK GEH-WB13X27503
...
40
TUBE AND NUT ASM GEH-WB28K10509
...
41
TUBE AND NUT ASM GEH-WB28K10511
...
42
TUBE AND NUT ASM GEH-WB28K10510
...
43
TUBE AND NUT ASM GEH-WB28K10512
...
55
ELBOW SWAGED ASM GEH-WB28K10730
...
57
TUBE GRIDDLE AND NUT ASM GEH-WB28K10500
...
60
INJET BURNER 18K GEH-WB28T10114
...
111
HARNESS HV GEH-WB18K10047
...
304
BRACKET INJET GEH-WB02K10192
...
306
VALVE DUAL GEH-WB21K10162
...
321
PIPE MANIFOLD ASM GEH-WB28K10515
...
322
TRANSFORMER GEH-WB27K10298
...
323
PIPE MANIFOLD ASM LF GEH-WB28K10534
...
333
REGULATOR GEH-WB21K10137
...
344
VALVE SAFETY GEH-WB19K10032
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
999
PM INSTALL INSTRUCTIONS GEH-31-11127
...
999
PM OWNERS MANUAL GEH-49-85245
...
999
TAPE MASTIC 4" X 2" GEH-WB02K10359
...
999
PM CONVERSION STEPS GEH-31-10693

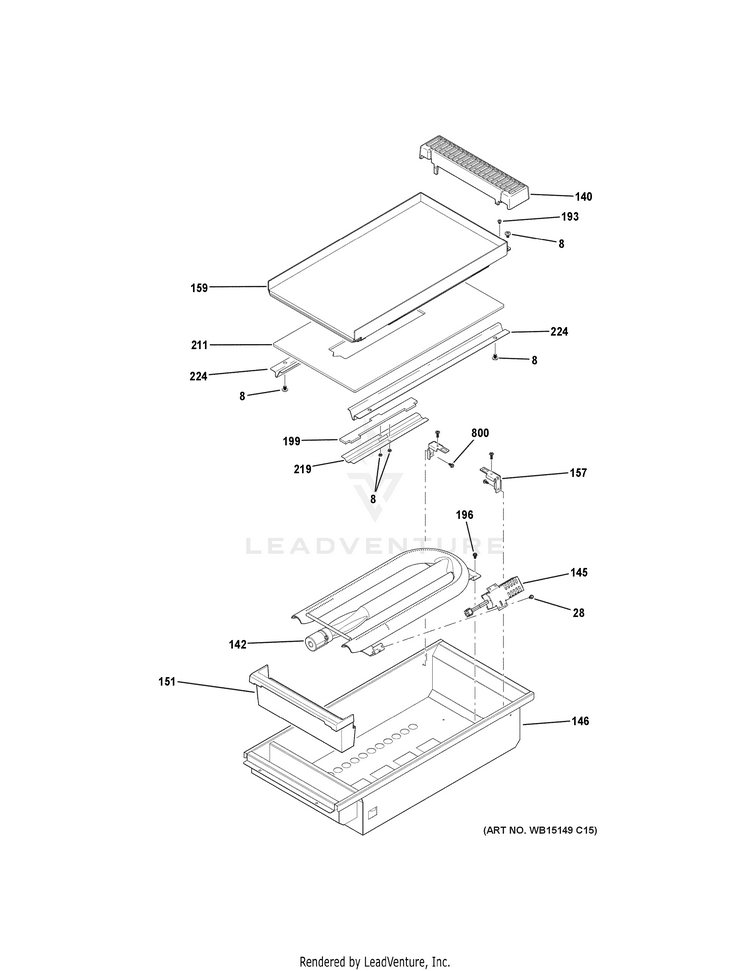

GRIDDLE ASSEMBLY

...
...
8
SCREW 8-32 GEH-WB01K10002
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
140
VENT GRIDDLE GEH-WB07K10294
...
142
BURNER GRIDDLE GEH-WB28K10636
...
145
IGNITER GLOWBAR GEH-WB13K10030
...
146
GRIDDLE BODY WELD GEH-WB49K10040
...
151
TROUGH GREASE ASM GEH-WB49K10014
...
157
BRACKET GRIDDLE GEH-WB02K10208
...
159
PLATE GRIDDLE WELD ASM GEH-WB32K10042
...
193
SCR 10-32 TRP 1/2 GEH-WB01K10100
...
196
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
199
INSULATION GEH-WB49K10039
...
211
PLATE GRIDDLE GEH-WB07K10295
...
219
SHIELD THERMOSTAT BULB GEH-WB49K10015
...
224
BRACKET SUPPORT GEH-WB02K10209
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
