GE CGU366P2M1S1 Gas Range Or Dual Fuel

Model: CGU366P2M1S1

Back To Assemblies

Save Part Not Listed?
product name

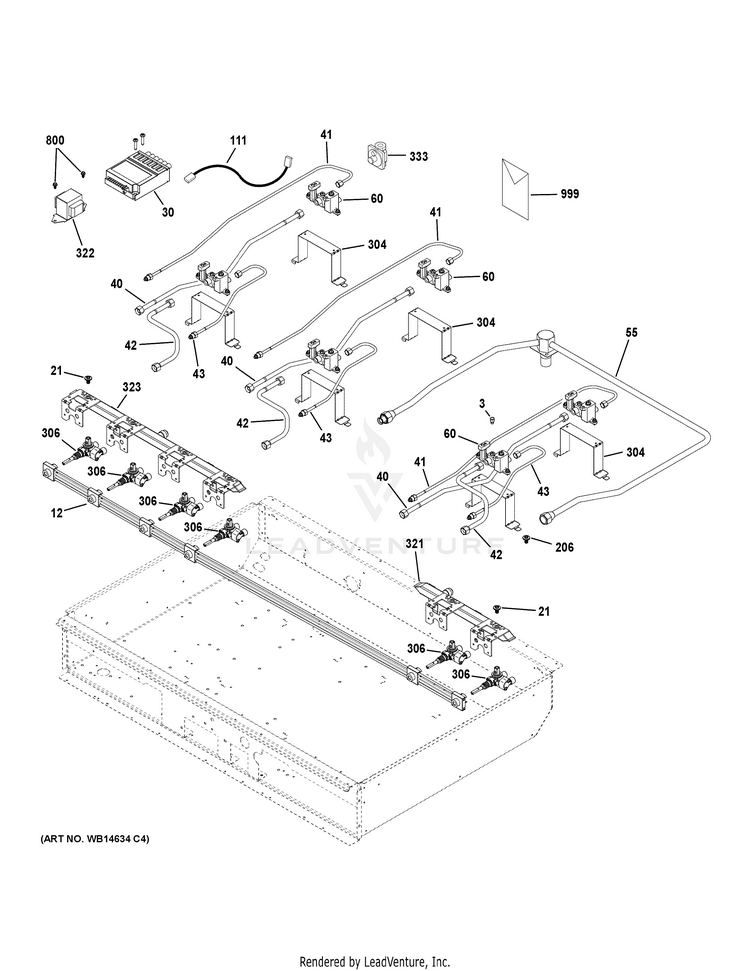

GAS & BURNER PARTS

...
...
3
ORIFICE SPUD LP MAIN GEH-WB28T10118
...
3
SPUD ORIFICE GRILL GEH-WB28K10530
...
3
ORIFICE SPUD (NG MAIN) GEH-WB28T10155
...
3
ORIFICE SPUD LP MAIN GEH-WB28T10117
...
3
SPUD ORIFICE GRIDDLE GEH-WB28K10529
...
3
ORIFICE SPUD (NG SIMMER) GEH-WB28T10159
...
12
HARNESS BURNER BOX GEH-WB18X23754
...
21
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
30
MODULE SPARK GEH-WB13X27503
...
40
TUBE AND NUT ASM GEH-WB28K10509
...
41
TUBE AND NUT ASM GEH-WB28K10511
...
42
TUBE AND NUT ASM GEH-WB28K10510
...
43
TUBE AND NUT ASM GEH-WB28K10512
...
55
ELBOW SWAGED ASM GEH-WB28K10731
...
60
INJET BURNER 18K GEH-WB28T10114
...
111
HARNESS HV GEH-WB18K10050
...
206
SCREW GEH-WB01K10091
...
304
BRACKET INJET GEH-WB02K10192
...
306
VALVE DUAL GEH-WB21K10162
...
321
PIPE MANIFOLD ASM GEH-WB28K10549
...
322
TRANSFORMER GEH-WB27K10298
...
323
PIPE MANIFOLD ASM LF GEH-WB28K10534
...
333
REGULATOR GEH-WB21K10137
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
999
TAPE MASTIC 4" X 2" GEH-WB02K10359
...
999
PM INSTALL INSTRUCTIONS GEH-31-11127
...
999
PM MINI MANUAL GEH-31-17283
...
999
CLEANER-SS GEH-WB02T10111
...
999
PM OWNERS MANUAL GEH-49-85245
