GE CGS700P4M2W2 Gas Range Or Dual Fuel

Model: CGS700P4M2W2

Save Part Not Listed?
product name

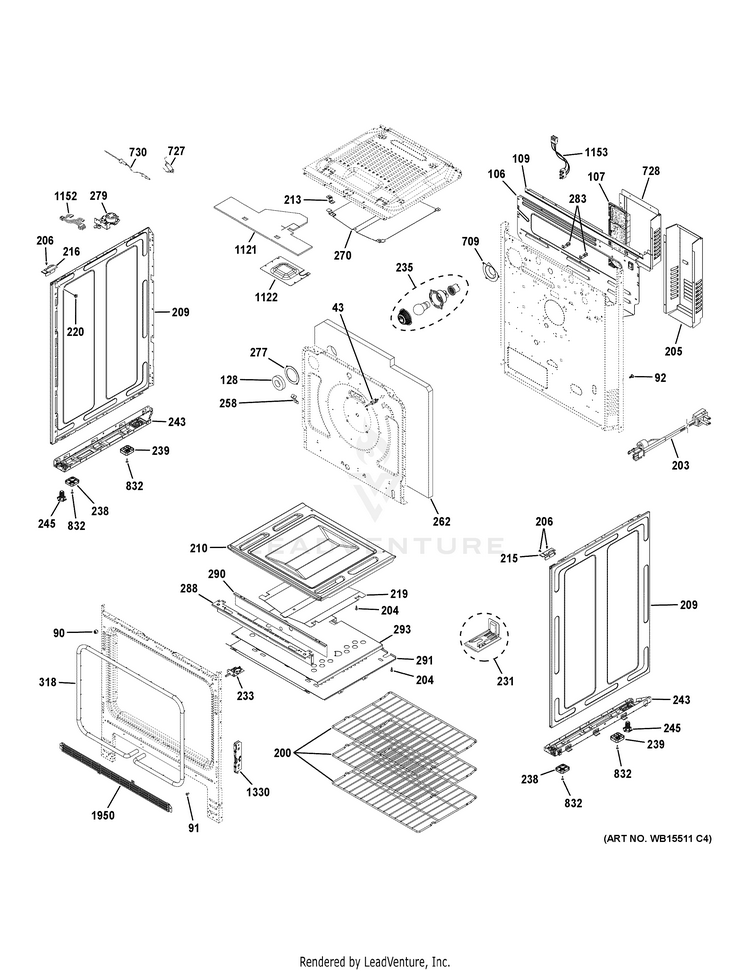

BODY PARTS

...
...
43
SENSOR ASM GEH-WB24X25557
...
90
FRAME FRONT BUMPER GEH-WB02X28738
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
92
SCREW GROUND GEH-WB01X1261
...
106
COVER BACK GEH-WB34X28955
...
107
MACHINE BOARD WITH FRAME GEH-WB27X32099
...
109
BACKGUARD COMPLEMENT GEH-WB34X28912
...
128
LAMP INSULATION GEH-WB02K10349
...
200
OVEN RACK GEH-WB48X21508
...
203
LINE CORD GEH-WB18X28855
...
204
SCREW (BLK) GEH-WB01K0042
...
205
COVER MOTOR GEH-WB34K10097
...
206
SCREW GEH-WB01K10091
...
209
PANEL SIDE GEH-WB56X28847
...
210
BOTTOM OVEN ASM GEH-WB63X21580
...
213
SUPPORT COOK TOP REAR GEH-WB34X28833
...
215
FRONT SUPPORT RH GEH-WB34X28747
...
216
FRONT SUPPORT LH GEH-WB34X28749
...
219
FLAME SPREADER GEH-WB49K0044
...
220
GROMMET GEH-WB02K0008
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
233
PLUNGER SWITCH GEH-WB24X27550
...
235
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
238
SPACER BASE FRONT GEH-WB16X20448
...
239
SPACER BASE REAR GEH-WB16X20449
...
243
SUPPORT BASE RT GEH-WB63X20215
...
243
SUPPORT BASE LT GEH-WB63X20216
...
245
LEG LEVELER GEH-WB02K10182
...
258
BRACE VENT GEH-WB34X20456
...
262
INSULATION OVEN BACK GEH-WB35X28786
...
270
DEFLECTOR GEH-WB34X28689
...
277
GASKET OVEN LIGHT GEH-WB32K10044
...
279
LATCH AUTOMATIC GEH-WB10X28793
...
283
CLIP CABLE GEH-WB02K0031
...
288
BRACE BOTTOM GEH-WB63K0015
...
290
SHIELD RADIATION GEH-WB34K0012
...
291
GUARD BOTTOM GEH-WB63K0016
...
293
BOTTOM INNER GUARD GEH-WB63K10187
...
318
GASKET OVEN ASM GEH-WB32X29539
...
709
COVER LAMP GEH-WB08K10018
...
727
PROBE RECEPTACLE & HARNE GEH-WB34K10121
...
728
CONTROL COVER GEH-WB34X28674
...
730
PROBE THERMISTOR GEH-WB20X5064
...
832
SCREW GEH-WB1K21
...
1121
INSULATION LATCH GEH-WB35X28986
...
1122
COVER LATCH GEH-WB34X21710
...
1152
HARNESS LATCH GEH-WB18X31606
...
1153
DC HARNESS GEH-WB18X28690
...
1330
RECEIVER HINGE GEH-WB10X28563
...
1950
TRIM FRONT BOTTOM GEH-WB01K10072

CAFE CUSTOMIZATION

...
...
1000
BRUSHED STAINLESS CONTROL KNOB GEH-WB03X31672
...
1001
BRUSHED BLACK CONTROL KNOB GEH-WB03X31889
...
1002
BRUSHED BRONZE CONTROL KNOB GEH-WB03X31673
...
1003
BRUSHED COPPER CONTROL KNOB GEH-WB03X31911
...
1004
BRUSHED BRASS KNOB ASM GEH-WB03X46018
...
1005
FLAT BLACK CONTROL KNOB GEH-WB03X45969
...
2000
BRUSHED STAINLESS V2 GRIDDLE KNOB GEH-WB03X31662
...
2001
BRUSHED BLACK V2 GRIDDLE KNOB GEH-WB03X31892
...
2002
BRUSHED BRONZE V2 GRIDDLE KNOB GEH-WB03X31663
...
2003
BRUSHED COPPER V2 GRIDDLE KNOB GEH-WB03X31902
...
2004
BRUSHED BRASS KNOB ASM GEH-WB03X46017
...
2005
FLAT BLACK V2 GRIDDLE KNOB GEH-WB03X45968
...
3000
BRUSHED STAINLESS MRHOB KNOB GEH-WB03X31659
...
3001
BRUSHED BLACK MRHOB KNOB GEH-WB03X31907
...
3002
BRUSHED BRONZE MRHOB KNOB GEH-WB03X31658
...
3003
BRUSHED COPPER MRHOB KNOB GEH-WB03X31891
...
3004
BRUSHED BRASS KNOB ASM GEH-WB03X46016
...
3005
FLAT BLACK MRHOB KNOB GEH-WB03X45967
...
6000
SKIRT GEH-WB03X28165
...
6001
BRUSHED BLACK BEZEL KNOB GEH-WB03X31953
...
6002
BRUSHED BRONZE KNOB BEZEL GEH-WB03X31655
...
6003
BRUSHED COPPER BEZEL KNOB GEH-WB03X31954
...
6004
BRUSHED BRASS SKIRT KNOB GEH-WB03X46015
...
6005
FLAT BLACK BEZEL KNOB GEH-WB03X45966
...
8000
BRUSHED STAINLESS RANGE HANDLE W/ CAF B GEH-WB15X31679
...
8001
BRUSHED BLACK HANDLE W/ CAF BAND GEH-WB15X33789
...
8002
BRONZE RANGE HANDLE W/ CAF BAND GEH-WB15X33467
...
8003
BRUSHED COPPER HANDLE W/ CAF BAND GEH-WB15X33782
...
8004
BRUSHED BRASS HANDLE ASM GEH-WB03X46008
...
8005
FLAT BLACK HANDLE W/ CAF BAND GEH-WB03X45958
...
9000
BRUSHED STAINLESS RANGE HANDLE GEH-WB15X31680
...
9001
BLACK STAINLESS HANDLE GEH-WB15X33787
...
9002
BRONZE RANGE HANDLE GEH-WB15X33466
...
9003
BRUSHED COPPER HANDLE GEH-WB15X33780
...
9004
BRUSHED BRASS HANDLE ASM GEH-WB03X46006
...
9005
FLAT BLACK HANDLE GEH-WB03X45959

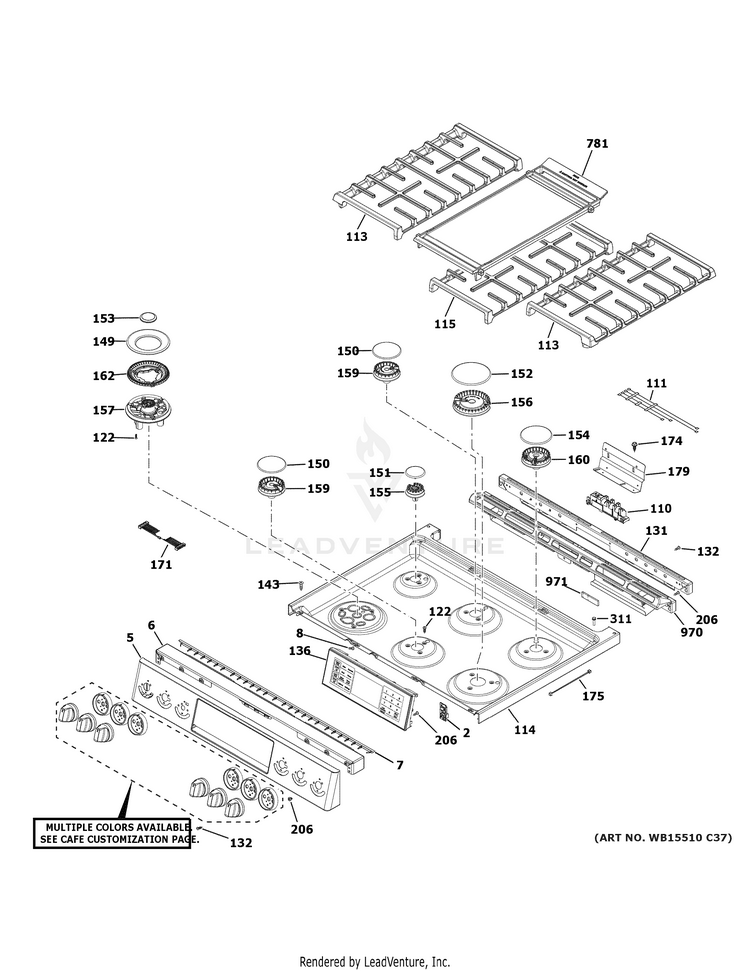

CONTROL PANEL & COOKTOP

...
...
2
BOARD WIFI CAT MODULE GEH-WB27X29798
...
5
WHITE SLATE MANIFOLD PANEL GEH-WB36X31624
...
6
STAINLESS STEEL MANIFOLD BASE PANEL GEH-WB36X31632
...
7
GASKET PANEL ASM GEH-WB32X31941
...
8
SCREW 8-32 GEH-WB01K10002
...
110
IGNITION MODULE GEH-WB13X24741
...
111
ELECTRODE TOP & HARNESS HV GEH-WB18X33925
...
113
GRATE ASM GEH-WB31X28754
...
114
RANGE TOP GEH-WB62X28227
...
115
CENTRAL GRATE GEH-WB31X28256
...
122
CKT SCREW GEH-WB01X24735
...
131
TRIM KIT GEH-WB07X28824
...
132
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
136
GLASS & TOUCH BOARD ASM GEH-WB27X31708
...
143
SCREW GEH-WB01X5754
...
149
CAP OUTER GEH-WB29X28253
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM. CAP, BURNER SMALL V2 GEH-WB16X28654
...
152
CAP BURNER ASM (15K) GEH-WB28K10222
...
153
CAP INNER GEH-WB16X28252
...
154
ASM BURNER CAP (12000) GEH-WB29K10024
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
156
BURNER, XL V2 GEH-WB16X24722
...
157
BASE BURNER GEH-WB16X28656
...
159
BURNER, MEDIUM V2 GEH-WB16X24724
...
160
BURNER, LARGE V2 GEH-WB16X24723
...
162
HEAD BURNER GEH-WB16X28764
...
171
HARNESS INTERFACE GEH-WB18X31619
...
174
SCREW #8-18 GEH-WB01X31119
...
175
HARNESS GROUND GEH-WB18X25597
...
179
BRACKET SPARK MODULE GEH-WB34X33924
...
206
SCREW GEH-WB01K10091
...
311
BUMPER GEH-WB02X24790
...
781
CAST GRIDDLE GEH-WB31X28254
...
970
VENT TRIM GEH-WB07X28818
...
971
VENT TRIM GASKET GEH-WB35X30499

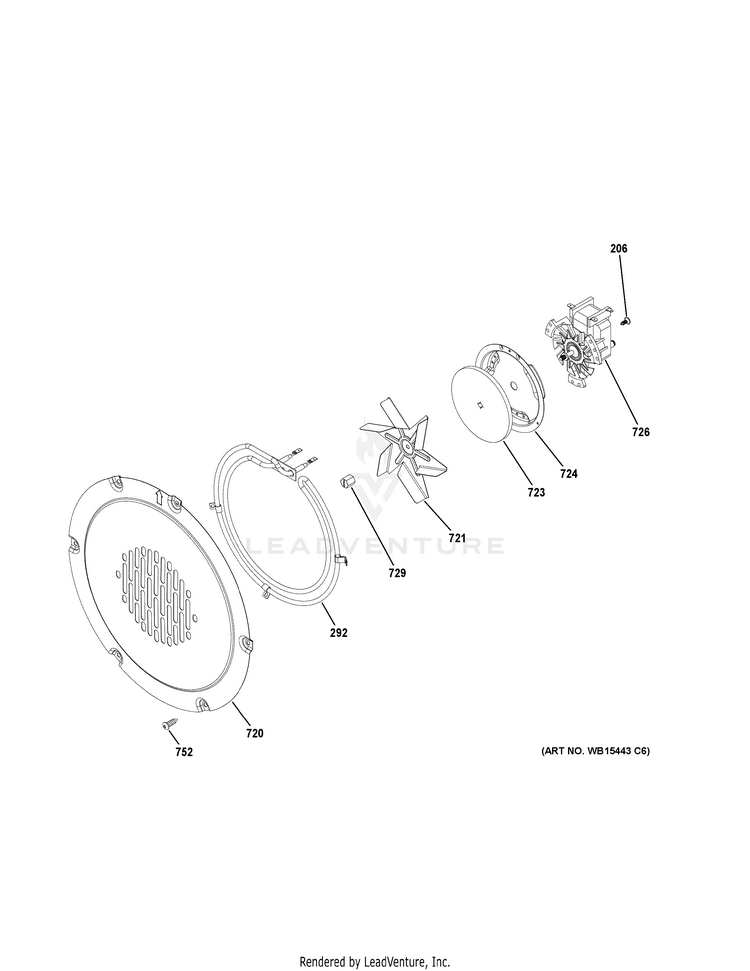

CONVECTION FAN

...
...
206
SCREW GEH-WB01K10091
...
292
CONVECTION ELEMENT GEH-WB44X10051
...
720
FAN COVER GEH-WB34X28703
...
721
FAN BLADE GEH-WB02X8351
...
723
FAN INSULATION GEH-WB35K10013
...
724
FAN SUPPORT GEH-WB02K10034
...
726
FAN MOTOR CONVECT GEH-WB26X28953
...
729
NUT GEH-WB02T10017
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345

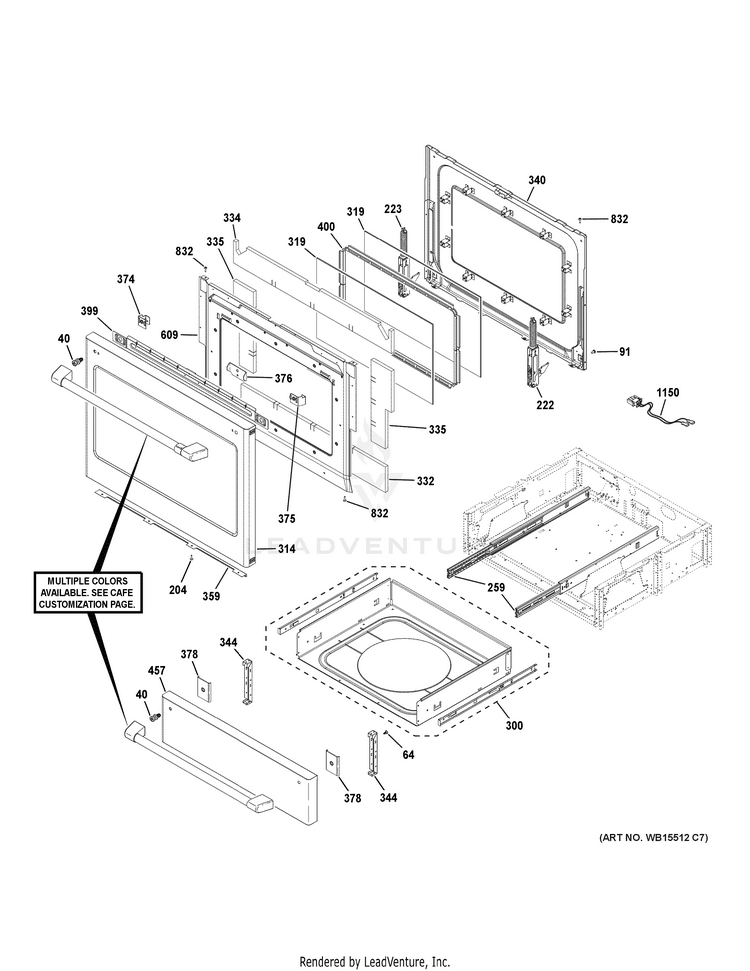

DOOR & DRAWER PARTS

...
...
40
FASTENER DOOR HANDLE GEH-WR01X11007
...
64
SCREW M4X8 GEH-WB01X1189
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
204
SCREW (BLK) GEH-WB01K0042
...
222
DOOR HINGE GEH-WB10X30271
...
223
DOOR HINGE GEH-WB10X26769
...
259
DRAWER SLIDE ASSY LEFT GEH-WB39K10021
...
259
DRAWER SLIDE ASSY RIGHT GEH-WB39K10020
...
300
KIT DRAWER BODY ASM GEH-WB49X26562
...
314
WHITE SLATE GLASS & PANEL DOOR GEH-WB56X31645
...
319
CRYSTAL WINDOW GEH-WB57K10174
...
332
INSULATION GEH-WB35K10221
...
334
INSULATION DOOR GEH-WB35X20077
...
335
INSULATION GEH-WB35K10222
...
340
LINER DOOR WELD ASSEMBLY GEH-WB56X24760
...
344
BRACKET DRAWER GEH-WB02X24742
...
359
BARRIER DOOR GEH-WB07X28885
...
374
FASTENER BRACKET GEH-WB34X31703
...
375
FASTENER BRACKET GEH-WB34X31701
...
376
BRACKET BACKER GEH-WB34X31739
...
378
ANCHOR NUT GEH-WB01X31748
...
399
PANEL VENT BACKER GEH-WB34X31702
...
400
FRAME WINDOW ASSY GEH-WB34X28742
...
457
WHITE SLATE PANEL DRAWER GEH-WB56X31640
...
609
DOOR GUARD GEH-WB34X24749
...
832
SCREW GEH-WB1K21
...
1150
HARNESS DRAWER GEH-WB18X28724

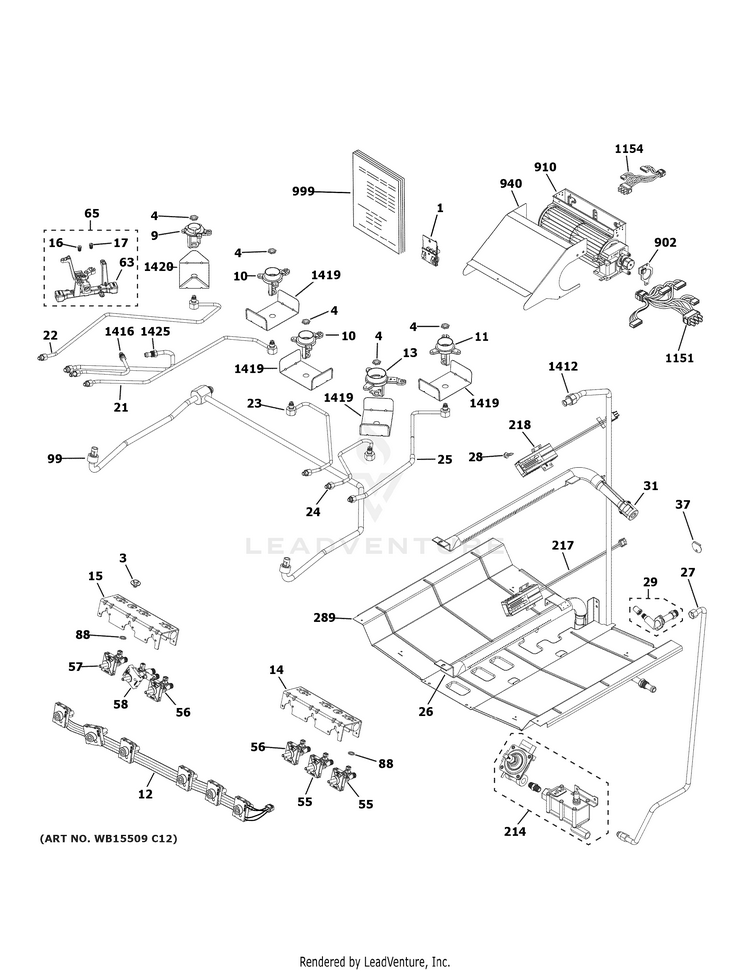

GAS & BURNER PARTS

...
...
1
KIT LP CONVERSION ASM GEH-WB28X28138
...
1
KIT NG HIGH ALTITUDE ASM GEH-WB28X29254
...
1
KIT LP HIGH ALTITUDE ASM GEH-WB28X29255
...
3
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
4
ECONOMIC NUT GEH-WB01K10037
...
9
INJET, SMALL V2 GEH-WB02X24728
...
10
INJET, MEDIUM V2 GEH-WB02X24727
...
11
INJET, LARGE V2 GEH-WB02X24726
...
12
HARNESS SWITCHES GEH-WB18X28758
...
13
INJET, XL V2 GEH-WB02X24725
...
14
MANIFOLD PIPE ASM GEH-WB28X28202
...
15
MANIFOLD PIPE ASM GEH-WB28X28203
...
16
ORIFICE SPUD NG GEH-WB28X28843
...
17
ORIFICE SPUD GEH-WB28X29600
...
21
CR ORIFICE HOLDER GEH-WB16X28685
...
22
LR ORIFICE HOLDER GEH-WB28X28141
...
23
CF ORIFICE HOLDER GEH-WB13X28673
...
24
RF ORIFICE HOLDER GEH-WB28X28846
...
25
RR ORIFICE HOLDER GEH-WB28X28148
...
26
BURNER BAKE GEH-WB16X28250
...
27
TUBE BURNER SUPPLY GEH-WB28X24773
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
29
ELBOW 90 ASM GEH-WB28X28697
...
31
BURNER BROIL GEH-WB16X28251
...
37
COVER IGNITOR GEH-WB34X24753
...
55
VALVE BURNER 270 GEH-WB21X20470
...
56
VALVE BURNER 270 GEH-WB21X20612
...
57
VALVE BURNER 270 GEH-WB21X25979
...
58
VALVE BURNER 3R 310 GEH-WB21X28821
...
63
INJET MRHOB GEH-WB16X28863
...
65
INJECT BURNER MRHOB ASM GEH-WB16X28867
...
88
COVER VALVE GEH-WB02X28680
...
99
TUBE MANIFOLD SUPPLY GEH-WB28X28157
...
214
VALVE CONTROL ASM GEH-WB21X33225
...
217
IGNITER GLOWBAR GEH-WB13X25500
...
218
IGNITER GLOWBAR GEH-WB13X24755
...
289
LOWER HEAT SHIELD GEH-WB34K10086
...
902
BOARD SENSOR GEH-WB27X28659
...
910
BLOWER TANGENTIAL GEH-WB26X32571
...
940
FAN SUPPORT GEH-WB34X28735
...
999
PM QUICK GUIDE GEH-49-85254
...
999
PM INSTALL INSTRUCTIONS GEH-31-11074
...
999
PM INSTALL INSTRUCTIONS GEH-31-11051
...
999
PM MANUAL MINI AND WD ASM GEH-31-2000102
...
999
PM WI FI INSTRUCTIONS GEH-31-11013
...
1151
HARNESS MAIN GEH-WB18X31609
...
1154
HARNESS BLOWER GEH-WB18X31604
...
1412
TUBE BURNER BOX SUPPLY GEH-WB28X28151
...
1416
TUBE SIMMER DUAL VALVE GEH-WB28X28161
...
1419
AIR DEVIATOR GEH-WB02X28653
...
1420
AIR DEVIATOR GEH-WB02X28652
...
1425
TUBE MAIN DUAL VALVE GEH-WB28X28155
