GE CEB1590SS1SS Microwave

Model: CEB1590SS1SS

Save Part Not Listed?
product name

CONTROL PARTS

...
...
130
SCREW - FUSE GEH-WB01X10130
...
136
SCREW - PAN HEAD TAPPING GEH-WB02X10730
...
2003
LEVER GEH-WB06X10573
...
2005
BUTTON SPRING GEH-WB09X10002
...
2006
SMART BOARD GEH-WB27X10791
...
2007
BUTTON GEH-WB03X10343
...
2009
PCB ASM SUB GEH-WB27X11173
...
2012
CONTROLLER ASM,TACT DIAL GEH-WB27X11174
...
2027
BUTTON, LOWER SET GEH-WB03X10344
...
2381
PANEL ASM, CONTROL GEH-WB56X10982
...
2382
BUTTON & COVER GEH-WB03X10342
...
2400
KNOB, CONTROL GEH-WB03X10341

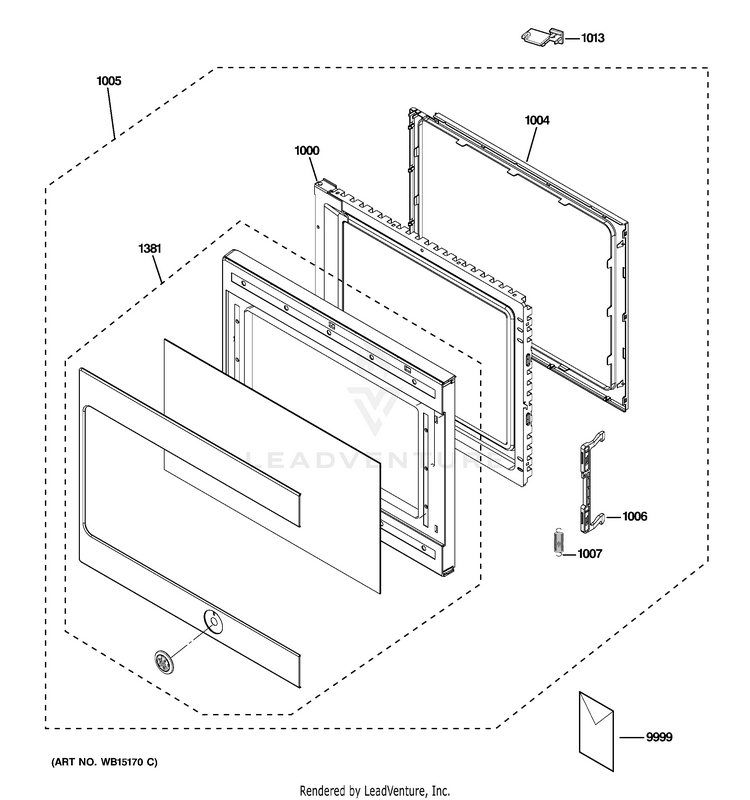

DOOR PARTS

...
...
1000
DOOR FRAME ASSY GEH-WB55X10384
...
1004
CHOKE COVER GEH-WB55X10385
...
1005
DOOR ASM,SS GEH-WB56X10980
...
1006
LATCH ALL GEH-WB06X10030
...
1007
SPRING GEH-WB09X10015
...
1013
CAP - CHOKE COVER GEH-WB02X10718
...
1381
DOOR ASM SUB GEH-WB56X10981
...
9999
CMO HARDWARE ASM BAG GEH-WB01X10296
...
9999
PM QUICK REF CMO CONV GEH-49-40730
...
9999
MINI MANUAL GEH-31-41074

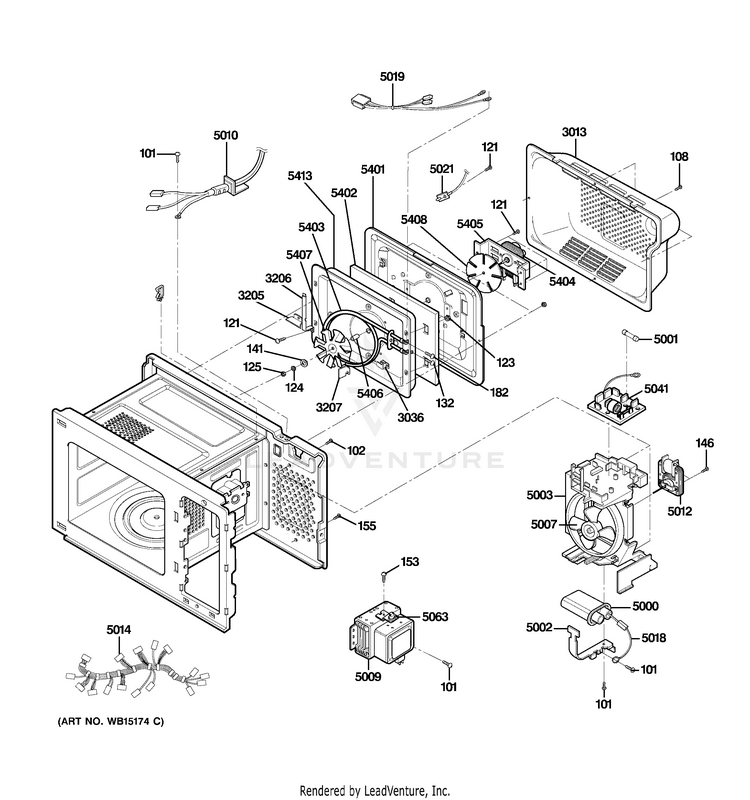

INTERIOR PARTS

...
...
101
WB02X10745 GEH-WB02X10777
...
102
SCREW GEH-WB01X10121
...
108
SCREW TAPPING GEH-WB01X1514
...
121
SCREW TAPPING TRUSS HEAD GEH-WB01X10127
...
124
WASHER COMMON GEH-WB01X1522
...
125
NUT COMMON GEH-WB01X1520
...
132
SCREW - HEATER SHEATH GEH-WB01X1504
...
141
WASHER- PLAIN GEH-WB01X1521
...
182
SCREW -LEAD WIRE ASSY GEH-WB02X10726
...
3013
BACK COVER GEH-WB56X10184
...
3036
HOLDER - HEATER GEH-WB06X10264
...
3205
BRACKET - HTR CENTER GEH-WB02X10723
...
3206
BRACKET- HEATER LEFT GEH-WB02X10722
...
3207
BRACKET- HEATER LOWER GEH-WB02X10724
...
5000
CAPACITOR, H.V GEH-WB27X10701
...
5001
FUSE GEH-WB27X10388
...
5002
BRACKET - CAPACITOR GEH-WB06X10214
...
5003
GUIDE - SUCTION GEH-WB06X10261
...
5007
FAN BLADE GEH-WB38X10005
...
5009
MAGNETRON GEH-WB27X10305
...
5010
POWER CORD ASM GEH-WB18X10507
...
5012
MOTOR FAN GEH-WB26X10085
...
5014
HARNESS GEH-WB18X10455
...
5018
CABLE ASM GEH-WB18X10286
...
5019
HARNESS GEH-WB18X10250
...
5021
THERMISTOR GEH-WB18X10126
...
5041
NOISE FILTER GEH-WB02X11256
...
5063
BRACKET ASM GEH-WB21X10150
...
5401
CHAMBER GEH-WB06X10262
...
5402
INSULATOR GEH-WB06X10735
...
5403
HEATER - SHEATH GEH-WB06X10265
...
5404
MOTOR,AC FAN GEH-WB26X10211
...
5405
BRACKET - MTR CIRCU GEH-WB02X10542
...
5406
SPACER GEH-WB01X1518
...
5407
FAN - STIRRER GEH-WB06X10266
...
5408
FAN BLADE GEH-WB06X0475
...
5413
CHAMBER WALL GEH-WB06X10263

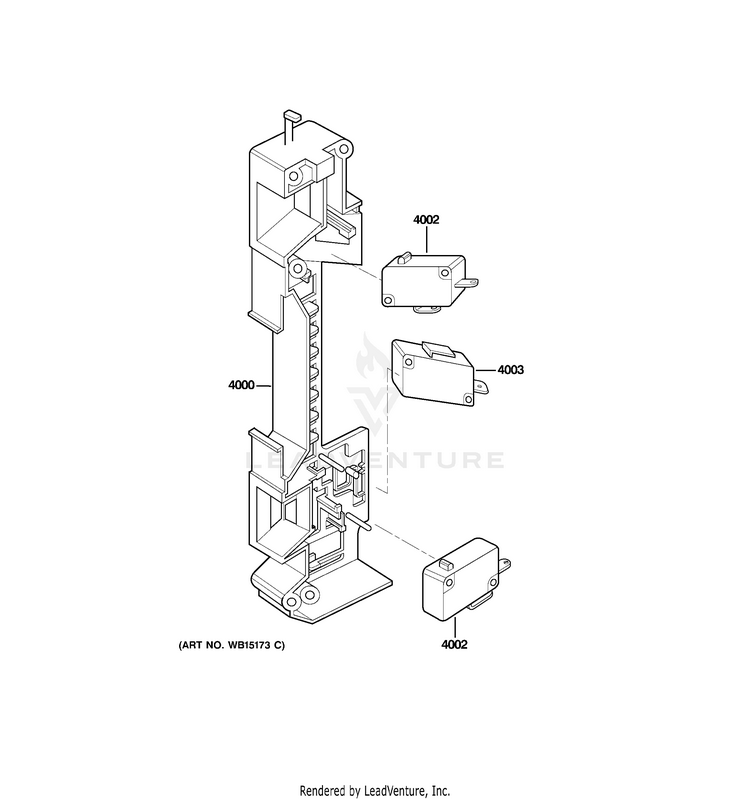

LATCH BOARD PARTS

...
...
4000
BOARD LATCH GEH-WB06X10033
...
4002
SWITCH MICRO GEH-WB24X0815
...
4003
SWITCH MICRO GEH-WB24X0817

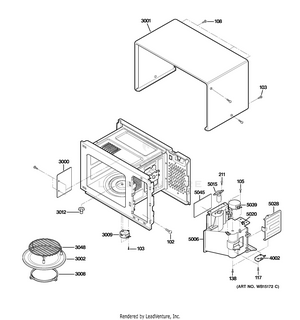

OVEN CAVITY PARTS

...
...
102
SCREW GEH-WB01X10121
...
103
SCREW GEH-WB02X10727
...
105
SCREW - HAND GEH-WB02X10728
...
108
SCREW TAPPING GEH-WB01X1514
...
117
SCREW -SWITCH MICRO GEH-WB01X1509
...
138
SCREW TAPPING TRUSS HEAD GEH-WB02X10760
...
211
SPECIAL SCREW GEH-4B75675A
...
3000
WAVE GUIDE GEH-WB06X10254
...
3001
CASE, FLAT GEH-WB56X10979
...
3002
GLASS TRAY GEH-WB49X10074
...
3008
TURN TABLE GEH-WB02X10719
...
3009
MOTOR - TURN TABLE GEH-WB26X10082
...
3012
SHAFT- TURN TABLE GEH-WB06X10255
...
3048
SHELF GEH-WB48X10073
...
4002
SWITCH MICRO GEH-WB24X0815
...
5006
AIR DUCT GEH-WB06X10257
...
5015
LAMP - OVEN GEH-WB36X10131
...
5020
THERMOSTAT GEH-WB21X10148
...
5028
BRACKET - DAMPER GEH-WB06X10260
...
5039
MOTOR, AC SYNCHRONOUS GEH-WB26X10248
...
5045
COVER - LAMP GEH-WB06X10258

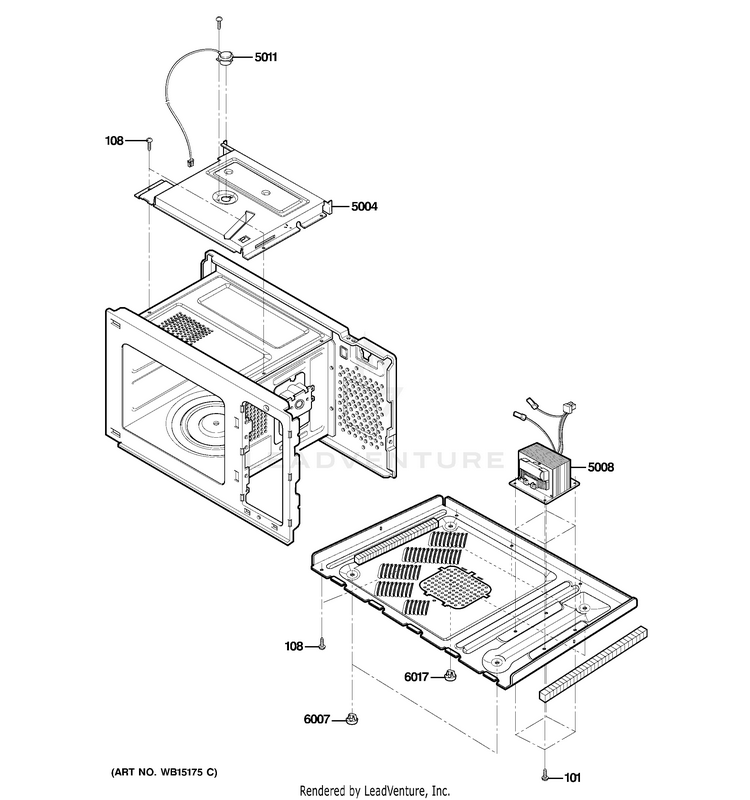

SENSOR & BASE PAN PARTS

...
...
101
WB02X10745 GEH-WB02X10777
...
108
SCREW TAPPING GEH-WB01X1514
...
5004
GUIDE,AIR GEH-WB02X11324
...
5008
TRANSFORMER HV GEH-WB27X10957
...
5011
SENSOR ASSY GEH-WB24X10044
...
6007
CAP - LEG GEH-WB02X10611
...
6017
CAP, BASE PLATE GEH-WB06X10910
