GE BISB42ELC Refrigerator

Model: BISB42ELC

Save Part Not Listed?
product name

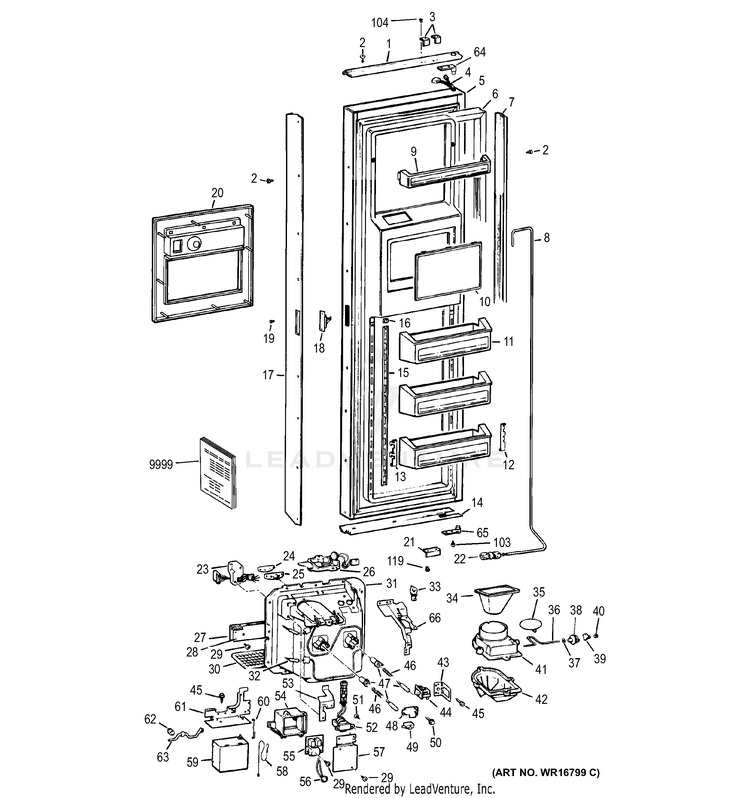

FREEZER DOOR

...
...
1
WR29X0182 GEH-WR29X5108
...
1
TRIM-TOP GEH-WR17X6333
...
2
SCREW GEH-WR01X5621
...
2
WR29X5161 GEH-WR29X5109
...
3
WR29X5162 GEH-WR29X5110
...
3
ACTIVATOR-SWITCH GEH-WR02X7541
...
4
HARNESS- O DOOR RECESS GEH-WR49X0301
...
4
BC00173-1 GEH-WR29X5111
...
5
OUTER DOOR ASSY-FZ GEH-WR78X8054
...
5
SCREW GEH-WR29X5112
...
6
WR24X492 GEH-WR24X5252
...
6
MOTOR GEH-WR29X5113
...
7
DOOR TRIM-FZ GEH-WR17X6228
...
7
SCREW PLATE GEH-WR29X5135
...
8
WR17X10206 GEH-WR17X6334
...
8
WR29X5189 GEH-WR29X5114
...
9
SCREW GEH-WR29X5140
...
9
DOOR SHELF FRONT GEH-WR17X6335
...
10
WR17X2920 GEH-WR17X6336
...
10
WR29X5190 GEH-WR29X5115
...
10
SPEED CLIP GEH-WR01X5689
...
11
DOOR SHELF ASSY GEH-WR17X6337
...
11
SCREW SPRING GEH-WR29X5139
...
12
WR29X5171 GEH-WR29X5116
...
12
HOOK R/S GEH-WR02X7544
...
13
BE03687-01 GEH-WR29X5117
...
13
HOOK L/S GEH-WR02X7543
...
14
SPACER HOLDING SWITCH GEH-WR29X5118
...
14
5B6382-02 GEH-WR17X6338
...
15
WR29X5167 GEH-WR29X5119
...
15
TRACK GEH-WR17X6339
...
16
WR29X5168 GEH-WR29X5120
...
16
CAP-TRACK TOP & BOTTOM GEH-WR02X7542
...
17
SCREW THERMO GEH-WR29X5136
...
17
DOOR HANDLE GEH-WR12X5187
...
18
WR29X5183 GEH-WR29X5121
...
18
SENSOR DOOR FF & FZ GEH-WR23X0310
...
19
SCREW GEH-WR29X5122
...
19
SCREW-SENSOR GEH-WR01X5687
...
20
FASTENER TUBULAR GEH-WR02X3757
...
20
WR38X2248 GEH-WR38X5414
...
20
WR29X0189 GEH-WR29X5123
...
21
203C2696G002 GEH-WR29X5156
...
21
DOOR STOP GEH-WR02X7880
...
22
SCREW MOLD GEH-WR29X5137
...
22
NUT & UNION ASM GEH-WR02X7223
...
23
HARNESS & HOUSING-RECESS GEH-WR23X0306
...
23
WR30X318 GEH-WR29X5144
...
24
PAD GEH-WR02X7888
...
25
WR29X5174 GEH-WR29X5126
...
25
CRADLE GEH-WR02X7890
...
26
INSULATOR HOUSING GEH-WR02X4570
...
26
HOUSING & SOCKET AS DISP GEH-WR02X7243
...
26
WR29X0160 GEH-WR29X5127
...
27
CONTROL PANEL GEH-WR55X0021
...
28
BOARD ASM LOGIC GEH-WR55X0016
...
28
WR29X0191 GEH-WR29X5128
...
29
ARM SHUT OFF GEH-WR29X5129
...
29
SCREW GEH-WR02X0561
...
30
WR29X5181 GEH-WR29X5130
...
30
GRILLE RECESS GEH-WR02X7892
...
31
RECESS DISPENSER(BLACK) GEH-WR17X2047
...
31
WR29X5173 GEH-WR29X5157
...
32
HEATER RECESS & DUCT ASM GEH-WR51X0313
...
32
BR00151-1 GEH-WR29X5132
...
33
GROMMET WATER FILL RECES GEH-WR02X4571
...
33
BE03725-1 GEH-WR29X5133
...
34
WR29X0192 GEH-WR29X5134
...
34
ICE CHUTE GEH-WR17X6341
...
35
DUCT DOOR W/O LEVER GEH-WR17X1586
...
35
PLUG BUTTON GEH-WR02X4743
...
36
CRANK DOOR DUCT DISP GEH-WR02X4814
...
36
PLUG BUTTON GEH-WR02X7501
...
37
WASHER GEH-WR01X1385
...
37
GEAR MOTOR GEH-WR29X5153
...
37
SILICONE GEH-WR97X0163
...
38
PULLEY TIME DELAY GEH-WR17X1457
...
39
ARM TIME DELAY DISPLAY GEH-WR17X1045
...
40
RING COMPRESSION GEH-WR02X4595
...
41
GASKET DUCT-R. SIDE GEH-WR14X0246
...
41
DUCT RECESS GEH-WR17X1257
...
41
GASKET DUCT-L. SIDE GEH-WR14X0247
...
42
SHIELD & FUNNEL ASSY GEH-WR17X5881
...
43
PLATE WATER SW RECESS GEH-WR02X4771
...
44
SWITCH-CRADLE-WATER SIDE GEH-WR23X0192
...
45
SCREW GEH-WZ04X0364
...
46
SPRING-RECESS DUCT GEH-WR02X3951
...
47
PLUNGER SCW & SLEEVE GEH-WR02X6325
...
48
SUPPORT SW. GEH-WR02X7068
...
49
SWITCH SELECT-CUBES DISP GEH-WR23X0144
...
49
PLATE MTG-DISP SWITCH GEH-WR02X7237
...
50
SCR 6-18 SPEC HXW 9/16 S GEH-WR01X1464
...
51
SCREW GEH-WZ04X0390
...
52
TRANSFORMER ASM GEH-WR62X0039
...
53
SUPPORT SELECTOR SWITCH GEH-WR02X7245
...
54
HOUSING POWER MODULE GEH-WR02X7349
...
55
BOARD ASM POWER SUPPLY GEH-WR55X0013
...
56
THERMISTOR & CONN ASM GEH-WR52X0024
...
57
COVER HOUSING-MODULE GEH-WR02X7350
...
58
LANYARD DISP GEH-WR02X4237
...
59
TIME DELAY ASM DISP GEH-WR09X0268
...
60
SPLICE TIME DELAY DISP GEH-WR02X4248
...
61
PLATE BEARING DISP GEH-WR02X4235
...
62
BEARING-CRANK GEH-WR02X4234
...
63
CRANK & RIVET ASSY DISPL GEH-WR17X1048
...
64
RISER-TOP GEH-WR02X7879
...
65
RISER-BTM GEH-WR02X7878
...
66
SUPPORT RECESS SWITCHES GEH-WR02X7244
...
103
SCREW-RISER GEH-WR01X5626
...
104
SCREW-ACTIVATOR GEH-WR01X5622
...
119
SCREW-STOP GEH-WR01X5686
...
9999
BISW42EK,BISB42EK,EL UC GEH-49-6551
...
9999
PM INSTALL INST GEH-49-6423

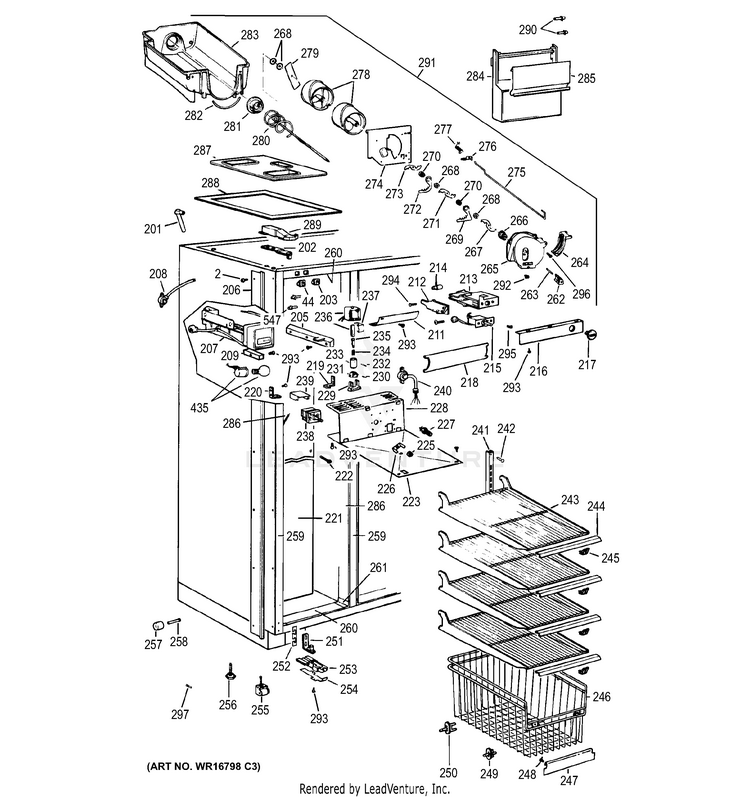

FREEZER SECTION

...
...
2
WR29X5161 GEH-WR29X5109
...
2
SCREW GEH-WR01X5621
...
44
SWITCH-CRADLE-WATER SIDE GEH-WR23X0192
...
201
TUBE & GROMMET GEH-WR17X6332
...
202
TOP HINGE GEH-WR13X5221
...
203
WR23X193 GEH-WR23X5155
...
205
DEFLECTOR GEH-WR17X6343
...
206
TRIM GEH-WR17X6250
...
207
NO DESCRIPTION GEH-WR30X0259
...
208
5D7058-03 GEH-WR23X5165
...
209
GUIDE-BUCKET GEH-WR02X7902
...
211
AIR DEFLECTOR GEH-WR17X6344
...
212
SIDE-HOUSING GEH-WR02X7893
...
213
HOUSING GEH-WR17X6345
...
214
SCREW-BRKT GEH-WR01X5647
...
214
POST-CONTROL GEH-WR02X7894
...
215
CONTROL GEH-WR09X0425
...
216
CONTROL PANEL GEH-WR17X6346
...
217
KNOB-CONTROL GEH-WR02X7895
...
218
LIGHT SHIELD GEH-WR17X6347
...
219
SUPPORT-SHLF BUCKT RF&LR GEH-WR02X7896
...
220
SUPPORT-SHLF BUCKT LF&RR GEH-WR02X7897
...
221
COVER LINER GEH-WR17X6348
...
222
SCREW-COVER GEH-WR01X5646
...
223
PROTECTOR SHELF GEH-WR02X4566
...
223
SHELF BUCKET BTM DISPLAY GEH-WR71X1729
...
225
NUT J GEH-WR01X1547
...
226
DRIVE AUGER DISPENSER GEH-WR02X4854
...
227
SUPP0RT TWIST GEH-WR02X7310
...
228
COVER MOTOR & SOLENOID GEH-WR17X2051
...
229
SADDLE SOLENOID GEH-WR02X7309
...
230
PIN SPIRAL GEH-WR02X4259
...
231
STIRRUP SOLENOID DISPLAY GEH-WR17X1066
...
232
PIN SPIRAL GEH-WR02X4257
...
233
COLLAR SOLENOID DISPLAY GEH-WR17X1065
...
234
SPRING SOLENOID LINKAGE GEH-WR02X4258
...
235
PLUNGER SOLENOID GEH-WR17X1064
...
236
SOLENOID GEH-WR62X0026
...
237
SHROUD SOLENOID GEH-WR17X1063
...
238
MOTOR CRUSHER DISP GEH-WR60X0101
...
239
WR17X2946 GEH-WR17X1440
...
240
HARNESS MOTOR DISP GEH-WR23X0194
...
241
TRACK-SHELF GEH-WR17X6350
...
242
SCREW GEH-WR01X5635
...
243
SHELF GEH-WR71X6076
...
244
TRIM GEH-WR17X6349
...
245
CLIP SHELF TRIM GEH-WR02X5008
...
246
BASKET GEH-WR21X5116
...
247
HANDLE GEH-WR12X5188
...
248
SCREW GEH-WR01X5690
...
249
SUPPORT-FRONT GEH-WR02X7898
...
250
SUPPORT-REAR GEH-WR02X7899
...
251
HINGE-BOTTOM GEH-WR13X5223
...
252
SHIM GEH-WR02X7886
...
253
HINGE COVER GEH-WR02X7900
...
254
CAP COVER GEH-WR02X7901
...
255
WHEEL ASM FRT GEH-WR02X4858
...
256
LEVELING LEG GEH-WR02X7560
...
257
WHEEL MOBILITY GEH-WR02X3594
...
258
AXLE GEH-WR02X3595
...
259
BREAKER STRIP-SIDES GEH-WR40X5574
...
260
BREAKER STRIP-BOTTOM GEH-WR40X5577
...
260
BREAKER STRIP-TOP GEH-WR40X5578
...
261
CORNERS-BREAKER GEH-WR40X5575
...
262
BLADE REST DISP GEH-WR02X4140
...
263
PIN SPIRAL GEH-WR02X4141
...
264
PIN DEFLECTOR DISP GEH-WR02X4143
...
264
SPRING ICE DEFLECTOR GEH-WR02X4561
...
264
DEFLECTOR ICE DISPLAY GEH-WR17X2059
...
265
HOUSING CRUSHER DISPLAY GEH-WR17X2061
...
266
RETAINER RING E GEH-WR01X1367
...
266
NUT AUGER GEH-WR01X1585
...
266
WASHER GEH-WR01X1366
...
267
BLADES MOVING DISPLAY GEH-WR17X1361
...
268
SPACER CRUSHER MIDDLE GEH-WR02X4139
...
269
BLADE STATIONARY DISPLAY GEH-WR17X1009
...
270
SPACER CRUSHER STATIONAR GEH-WR02X4138
...
271
BLADES MOVING DISPLAY GEH-WR17X1362
...
272
BLADE STATIONARY DISPLAY GEH-WR17X2058
...
273
BLADES MOVING DISPLAY GEH-WR17X1363
...
274
PLATE FRONT DISPLAY GEH-WR17X2062
...
275
WIRE ACTUATOR DISPLAY GEH-WR17X2060
...
276
RETAINER ACTUATOR WIRE GEH-WR02X4251
...
277
SPRING GEH-WR02X4145
...
278
HELIX FRONT-DISPLAY GEH-WR17X2057
...
278
HELIX REAR-DISPLAY GEH-WR17X2056
...
279
BLADE IN DISP GEH-WR02X7351
...
280
WR17X2740 GEH-WR17X2054
...
281
CUP DRIVE DISPENSER GEH-WR02X4550
...
282
SEAL-BUCKET GEH-WR02X4149
...
283
BUCKET ICE DISP GEH-WR30X0256
...
284
COVER & INSERT GEH-WR17X6456
...
285
TRIM DOOR GEH-WR38X1157
...
285
WR17X6456 GEH-WR17X6461
...
286
MULLION HEATER GEH-WR51X5215
...
287
TOP SEAL GEH-WR17X6368
...
288
GASKET GEH-WR14X5166
...
289
SCREW-COVER GEH-WR01X5748
...
289
HINGE COVER GEH-WR13X5234
...
290
SUPPORTS GEH-WR02X8271
...
291
WR17X4312 GEH-WR17X2055
...
292
SCR 8-15 A PA 3/8 SS GEH-WZ04X0230
...
293
TRIM SCREW S/S GEH-WR01X5688
...
294
6-32 X 3/8 PHIL S/S TYPE GEH-WR01X5684
...
295
SCREW-CONTROL GEH-WR01X5644
...
296
SCREW GEH-WZ05X0194
...
297
COTTER PIN GEH-WR02X3598
...
435
NO ITEM DESCRIPTION GEH-WR02X8265
...
547
SCREW GEH-WR01X5623

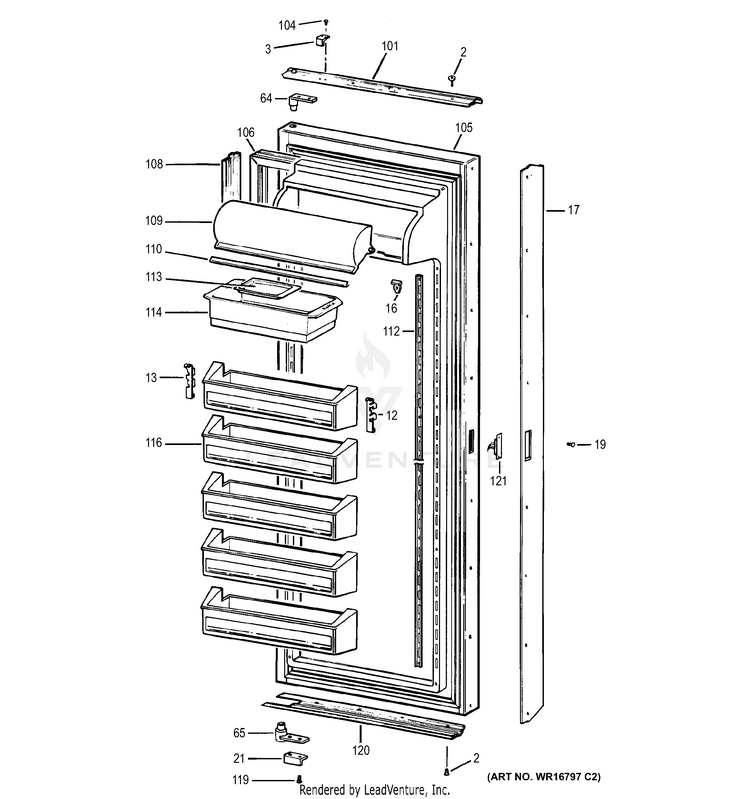

FRESH FOOD DOOR

...
...
2
WR29X5161 GEH-WR29X5109
...
2
SCREW GEH-WR01X5621
...
3
ACTIVATOR-SWITCH GEH-WR02X7541
...
3
WR29X5162 GEH-WR29X5110
...
12
WR29X5171 GEH-WR29X5116
...
12
HOOK R/S GEH-WR02X7544
...
13
HOOK L/S GEH-WR02X7543
...
13
BE03687-01 GEH-WR29X5117
...
16
WR29X5168 GEH-WR29X5120
...
16
CAP-TRACK TOP & BOTTOM GEH-WR02X7542
...
17
SCREW THERMO GEH-WR29X5136
...
17
DOOR HANDLE GEH-WR12X5187
...
19
SCREW GEH-WR29X5122
...
19
SCREW-SENSOR GEH-WR01X5687
...
21
203C2696G002 GEH-WR29X5156
...
21
DOOR STOP GEH-WR02X7880
...
64
RISER-TOP GEH-WR02X7879
...
65
RISER-BTM GEH-WR02X7878
...
101
TRIM-TOP GEH-WR17X6315
...
104
SCREW-ACTIVATOR GEH-WR01X5622
...
105
OUTER DOOR ASSY-FF GEH-WR78X8053
...
106
WR24X493 GEH-WR24X5251
...
108
TRIM DOOR GEH-WR17X6316
...
109
5D6049-02 GEH-WR22X5084
...
110
TRIM-DOOR GEH-WR38X5412
...
112
TRACK GEH-WR17X6317
...
113
DISH BUTTER GEH-WR19X5003
...
114
WR32X897 GEH-WR32X5192
...
116
DOOR SHELF ASSY GEH-WR17X6318
...
119
SCREW-STOP GEH-WR01X5686
...
120
TRIM BTM GEH-WR17X6319
...
121
MAGNET DOOR SENSOR GEH-WR02X7315

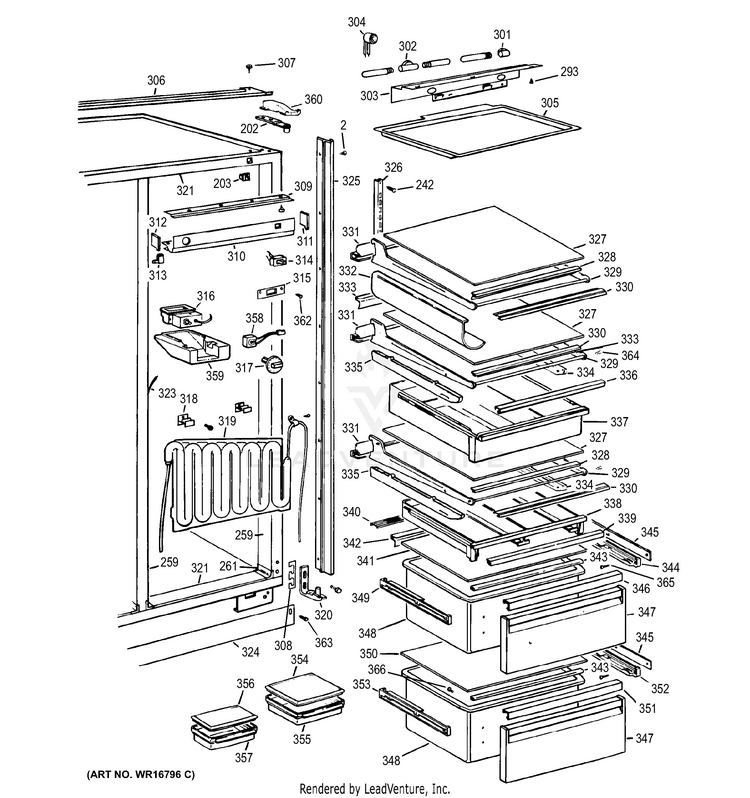

FRESH FOOD SECTION

...
...
2
SCREW GEH-WR01X5621
...
2
WR29X5161 GEH-WR29X5109
...
202
TOP HINGE GEH-WR13X5221
...
203
WR23X193 GEH-WR23X5155
...
242
SCREW GEH-WR01X5635
...
259
BREAKER STRIP-SIDES GEH-WR40X5574
...
261
CORNERS-BREAKER GEH-WR40X5575
...
293
TRIM SCREW S/S GEH-WR01X5688
...
301
SOCKET LIGHT GEH-WR23X5156
...
302
SOCKET LIGHT GEH-WR23X5164
...
303
REFLECTOR GEH-WR17X6320
...
304
THEMODISC GEH-WR50X0108
...
305
LIGHT SHIELD GEH-WR17X6321
...
306
TOP TRIM GEH-WR17X6322
...
307
SCREW-HINGE GEH-WR01X5653
...
308
SHIM GEH-WR02X7881
...
309
RETAINER GEH-WR17X6323
...
310
CONTROL PANEL GEH-WR17X6324
...
311
GASKET R/S GEH-WR14X5162
...
312
GASKET L/S GEH-WR14X5163
...
313
SUPPORT GEH-WR02X7882
...
314
SWITCH POWER SAVER GEH-WR23X0309
...
315
PLATE-SWITCH GEH-WR02X7883
...
316
CONTROL ASSEMBLY GEH-WR09X0424
...
317
KNOB-CONTROL GEH-WR02X7884
...
318
BRACKET-TANK GEH-WR02X7885
...
319
WATER TANK GEH-WR17X1482
...
320
HINGE R/S GEH-WR13X5222
...
321
BREAKER STRIP-BTM GEH-WR40X5576
...
321
BREAKER STRIP-TOP GEH-WR40X5573
...
323
MULLION HEATER GEH-WR51X5214
...
324
KICKPLATE GEH-WR79X5174
...
325
SIDE TRIM-CABINET GEH-WR17X6249
...
326
TRACK SHELF FF GEH-WR17X6325
...
327
GLASS SHELF GEH-WR32X5311
...
328
RETAINER GEH-WR02X7549
...
329
SHELF GEH-WR71X6075
...
330
TRIM-SHELF GEH-WR17X6326
...
331
REFLECTOR GEH-WR17X6327
...
332
WR17X3364 GEH-WR17X6235
...
333
GASKET FRONT GEH-WR14X5157
...
333
GASKET REAR GEH-WR14X5155
...
334
SLIDE R/S GEH-WR72X5059
...
335
SLIDE L/S GEH-WR72X5060
...
336
HANDLE-PAN GEH-WR17X6237
...
337
SNACK PAN GEH-WR32X5312
...
338
RACK GEH-WR17X6236
...
339
HANDLE RACK GEH-WR17X6328
...
340
LOUVER-GLASS COVER GEH-WR17X6329
...
341
VEG PAN COVER (GLASS) GEH-WR32X5313
...
342
WR14X5157 GEH-WR14X5164
...
343
WR2X8965 GEH-WR14X5159
...
344
WR72X5061 GEH-WR72X5054
...
345
SHIM GEH-WR02X7552
...
346
HANDLE PAN GEH-WR17X6330
...
347
PAN FRONT GEH-WR17X6239
...
348
VEG PAN GEH-WR32X5330
...
349
WR72X5062 GEH-WR72X5055
...
350
PAN COVER (GLASS) GEH-WR32X5331
...
351
HANDLE PAN GEH-WR17X6331
...
352
SLIDE R/S GEH-WR72X5061
...
353
SLIDE L/S GEH-WR72X5062
...
354
DISH COVER (LGE) GEH-WR02X7555
...
355
WR17X4008 GEH-WR17X6242
...
356
DISH COVER (SM) GEH-WR02X7554
...
357
WR17X4009 GEH-WR17X6241
...
358
CLIP GEH-WR01X5709
...
358
HEATER GEH-WR51X5218
...
359
DUCT GEH-WR02X8082
...
360
HINGE COVER GEH-WR13X5235
...
362
SCREW PLATE GEH-WR01X5632
...
363
SCREW-PLATE GEH-WR01X5643
...
364
NO ITEM DESCRIPTION GEH-WR01X5657
...
365
SCREW SLIDE GEH-WR01X5636
...
366
SCREW-FRONT GEH-WZ04X0244

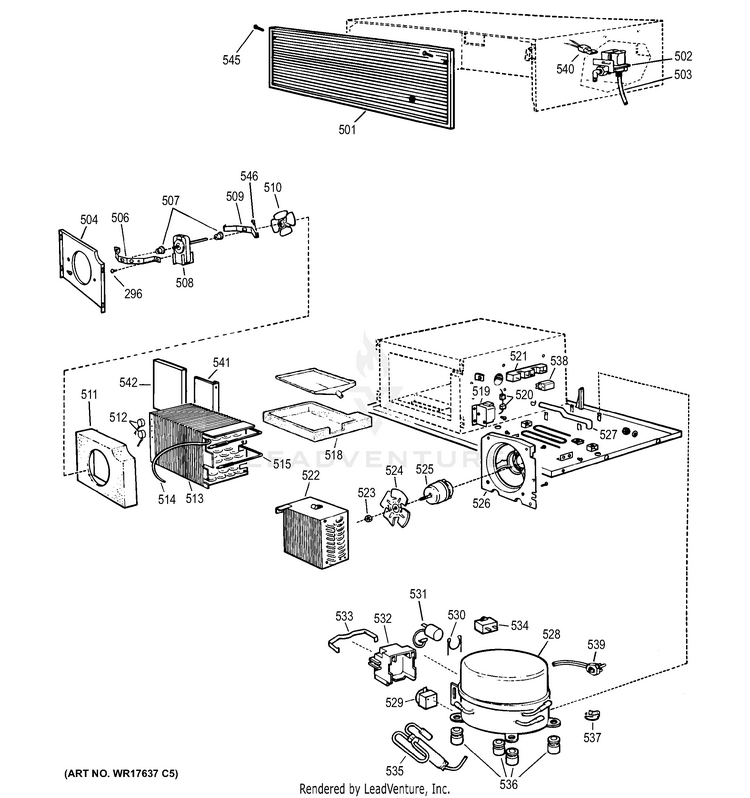

UNIT ASSEMBLY

...
...
296
SCREW GEH-WZ05X0194
...
501
MEDALLION GEH-WR03X5133
...
501
5C0384-03 GEH-WR79X5173
...
502
WATER VALVE ASM GEH-WR57X0092
...
503
WR17X2107 GEH-WR17X2049
...
504
FAN ORIFICE GEH-WR17X6351
...
506
BRACKET EVAP FAN GEH-WR02X4792
...
507
GROMMET GEH-WR02X2945
...
508
MOTOR EVAP FAN GEH-WR60X0172
...
509
BRACKET EVAP FAN GEH-WR02X7137
...
510
FAN BLADE EVAP MOTOR GEH-WR60X0123
...
511
FOAM BLOCK GEH-WR17X6311
...
512
DEFROST THERMOSTAT GEH-WR50X0109
...
513
EVAPORATOR GEH-WR85X0223
...
514
SUCTION & CAPILLARY TUBE GEH-WR86X0089
...
515
DEFROST HEATER GEH-WR51X0322
...
518
BASE-PAN GEH-WR17X6313
...
519
CONTROL DEF-SANKYO SEIKI GEH-WR09X0412
...
520
CURRENT SENSOR GEH-WR23X0319
...
521
5B7325-00 GEH-WR23X5163
...
522
CONDENSER GEH-WR84X0137
...
523
NUT LOCKING GEH-WR01X1515
...
524
BLADE COND FAN GEH-WR60X0167
...
525
WASHER GEH-WR01X1710
...
525
MOTOR COND FAN GEH-WR60X0179
...
526
HOUSING COND FAN GEH-WR17X2161
...
527
DRAIN TUBE GEH-WR17X6314
...
528
P/S KIT-MATSUSHITA HI-SI GEH-WR87X0238
...
529
RELAY (PTCR) GEH-WR07X0190
...
530
CLIP GUARDETTE GEH-WR02X7227
...
531
GUARDETTE ASM. GEH-WR08X0094
...
532
COVER GEH-WR02X7834
...
533
CLAMP COVER GEH-WR02X7226
...
534
CAPACITOR GEH-WR62X0049
...
535
MONGRAM SERIES P/S GEH-WR86X0086
...
536
GROMMET COMP MTG GEH-WR02X7238
...
537
CLIP COMP MTG GEH-WR02X7228
...
538
RELAY GEH-WR07X0193
...
539
WR23X420 GEH-WR23X5177
...
540
HARNESS-VALVE GEH-WR23X5176
...
541
BAFFLE GEH-WR17X6462
...
542
INSULATION GEH-WR82X5056
...
545
SCREW-GRILLE TO GRILLE GEH-WR01X5685
...
546
SCREW GEH-WR01X1483
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
