GE AZ85H18DACM3 Zoneline Air Conditioner

Model: AZ85H18DACM3

Back To Assemblies

Save Part Not Listed?
product name

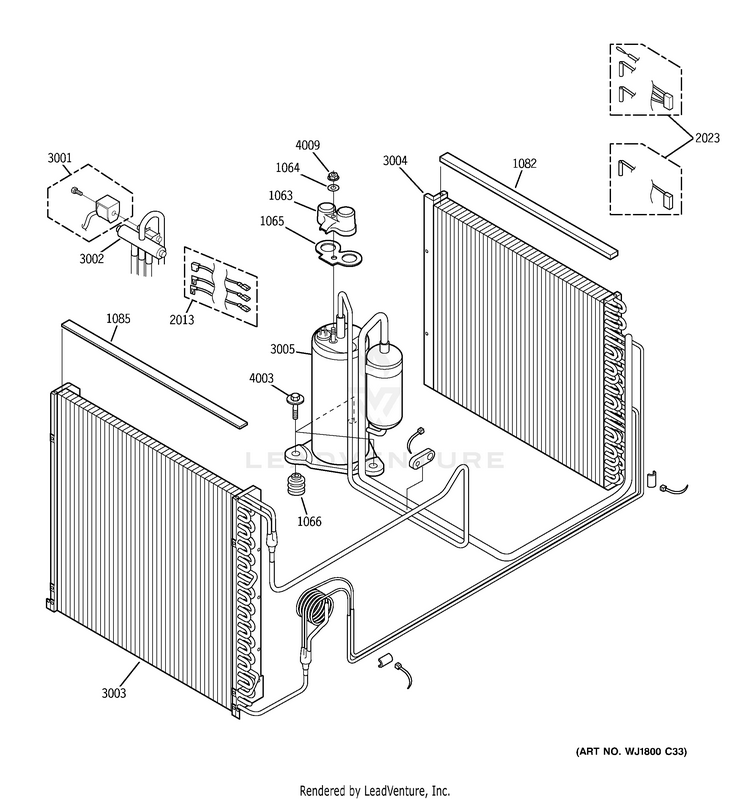

UNIT PARTS

...
...
1063
TERMINAL COVER GEH-WJ79X10080
...
1064
GASKET WAS HER GEH-WJ01X10003
...
1065
TERMINAL GASKET GEH-WJ43X10025
...
1066
COMPRESSOR CUSHION N GEH-WJ01X10046
...
1082
EVAPORATOR INSULATOR GEH-WJ45X10025
...
1085
CONDENSER INSULATOR GEH-WJ45X10026
...
2013
COMP. WIRING-RECHI GEH-WP01X10044
...
2023
THERMISTOR GEH-WP27X10074
...
3001
COIL S GEH-WP26X10088
...
3002
REVERSE VALVE GEH-WP58X10006
...
3003
CONDENSER ASM GEH-WP88X10100
...
3004
EVAPORATOR GEH-WP87X10056
...
3005
COMPRESSOR GEH-WP98X10046
...
4003
STUD BOLT GEH-WJ01X10031
...
4009
SPECIAL NUT GEH-WP01X10015
