GE AZ85E18EACM2 Zoneline Air Conditioner

Model: AZ85E18EACM2

Back To Assemblies

Save Part Not Listed?
product name

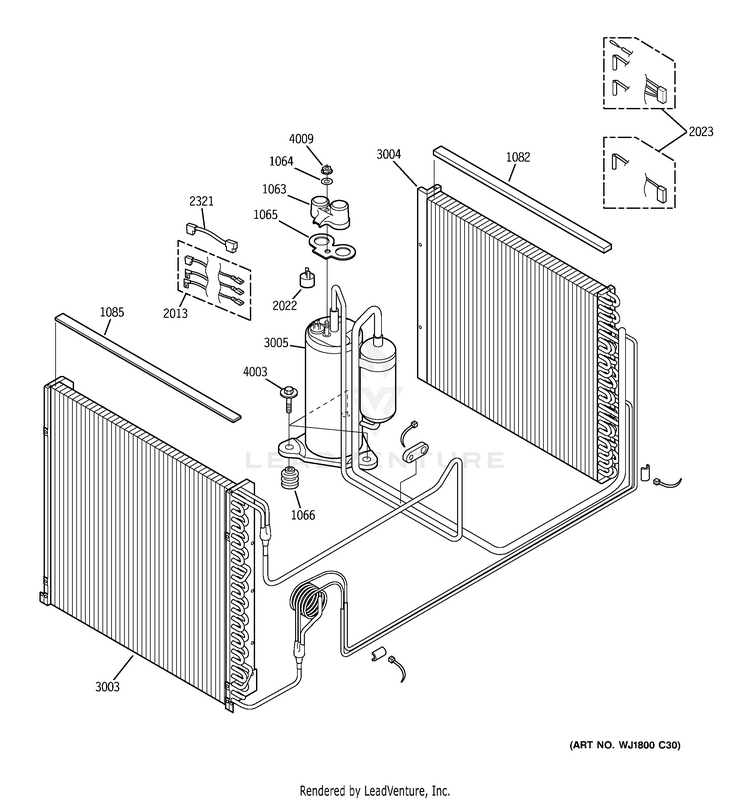

UNIT PARTS

...
...
1063
TERMINAL COVER GEH-WJ79X10080
...
1064
GASKET WAS HER GEH-WJ01X10003
...
1065
TERMINAL GASKET GEH-WJ43X10025
...
1066
COMPRESSOR CUSHION N GEH-WJ01X10046
...
1082
EVAPORATOR INSULATOR GEH-WJ45X10025
...
1085
CONDENSER INSULATOR GEH-WJ45X10026
...
2013
COMP. WIRING-RECHI GEH-WP01X10044
...
2022
PROTECTOR GEH-WP28X10022
...
2023
THERMISTOR GEH-WP27X10073
...
2321
LEAD WIRE GEH-WJ27X10001
...
3003
CONDENSER ASM GEH-WP88X10098
...
3004
EVAPORATOR ASM GEH-WP87X10051
...
3005
COMPRESSOR GEH-WP98X10045
...
4003
STUD BOLT GEH-WJ01X10031
...
4009
SPECIAL NUT GEH-WP01X10015
