GE AZ41E09DABW5 Zoneline Air Conditioner

Model: AZ41E09DABW5

Back To Assemblies

Save Part Not Listed?
product name

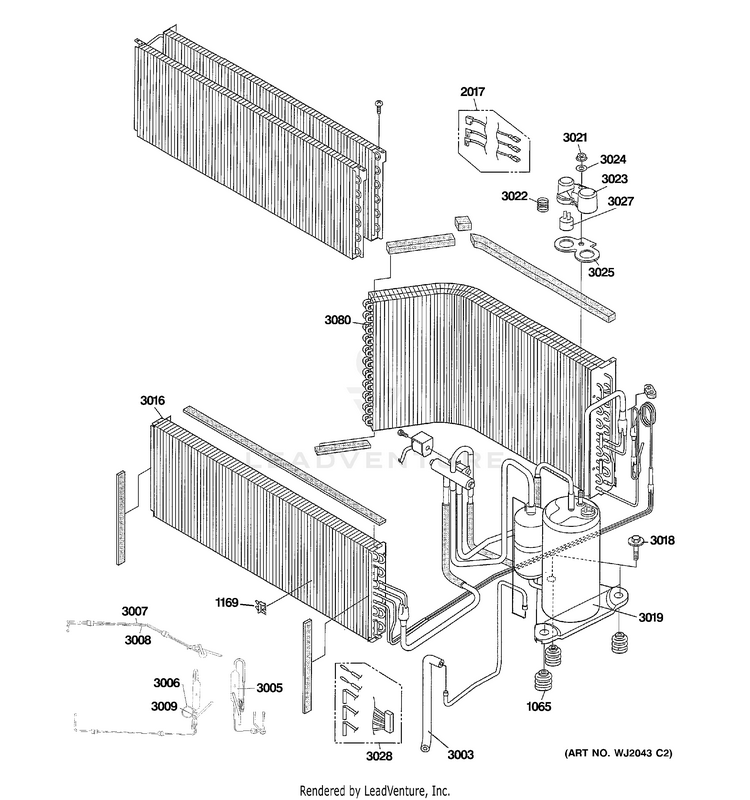

UNIT PARTS

...
...
1065
COMPRESSOR CUSHION N GEH-WJ01X10046
...
1169
THERMISTOR HOLDER GEH-WJ03X10011
...
2017
COMP. WIRING-RECHI GEH-WP27X10070
...
3003
FORM TUBE GEH-WP56X10067
...
3005
FILTER DRIER GEH-WJ56X10009
...
3006
CAPILLARY TUBE GEH-WP56X10068
...
3007
CAPILLARY TUBE GEH-WP56X10069
...
3008
CAPILLARY TUBE GEH-WP56X10070
...
3009
LEAD TUBE GEH-WP56X10071
...
3016
EVAPORATOR ASM GEH-WP87X10049
...
3018
STUD BOLT GEH-WJ01X10045
...
3019
COMPRESSOR-RECHI GEH-WP98X10034
...
3021
SPECIAL NUT GEH-WJ01X10286
...
3022
PROTECTOR SPRING GEH-WJ02X10031
...
3023
TERMINAL COVER GEH-WJ79X10204
...
3024
GASKET WASHER GEH-WJ01X10288
...
3025
TERMINAL GASKET GEH-WJ43X10061
...
3027
PROTECTOR GEH-WP23X10033
...
3028
THERMISTOR GEH-WP27X10072
...
3080
CONDENSER ASM GEH-WP88X10106
