GE AZ41E09DABW5 Zoneline Air Conditioner

Model: AZ41E09DABW5

Back To Assemblies

Save Part Not Listed?
product name

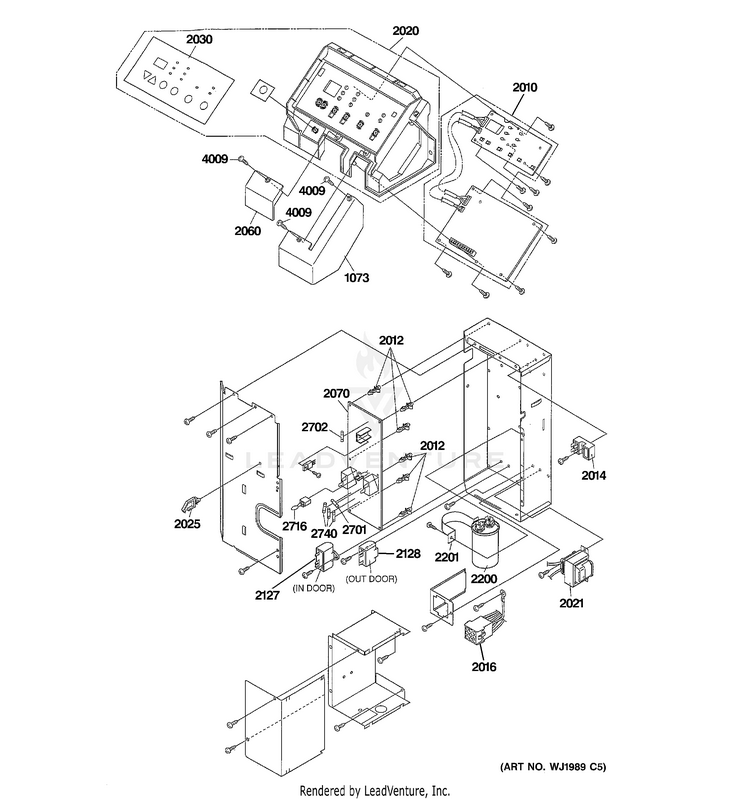

CONTROL PARTS

...
...
1073
COVER GEH-WP01X10038
...
2010
PWB ASM GEH-WP29X10024
...
2012
SPACER GEH-WP03X10022
...
2014
TERMINAL BOARD GEH-WP29X10014
...
2016
CONNECTOR GEH-WP03X10024
...
2020
CONTROL BASE ASSY GEH-WP07X10013
...
2021
TRANSFORMER GEH-WP27X10068
...
2025
WIRE HOLDER GEH-WP03X10029
...
2030
CONTROL SHEET GEH-WP07X10008
...
2060
COVER GEH-WP01X10037
...
2070
DRIVE PWB GEH-WP29X10021
...
2127
FAN MTR CAPACITOR GEH-WJ20X10116
...
2128
FAN MTR CAPACITOR-OUT DO GEH-WP20X10022
...
2200
RUNNING CAPACITOR GEH-WP20X10033
...
2201
CAPACITOR CLAMP GEH-WP03X10031
...
2701
FUSE GEH-WP23X10003
...
2702
FUSE GEH-WP23X10026
...
2716
VARISTOR GEH-WP28X10019
...
2740
FUSE GEH-WP23X10028
...
4009
SPECIAL SCREW GEH-WP01X10021
