GE AZ39H09DADM1 Zoneline Air Conditioner

Model: AZ39H09DADM1

Save Part Not Listed?
product name

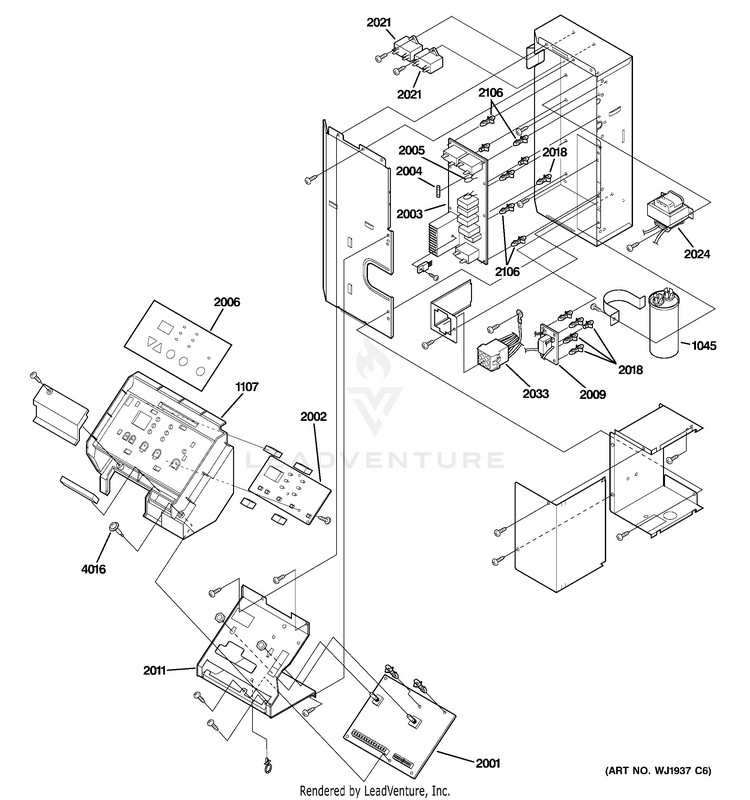

CONTROL PARTS

...
...
1045
RUN CAPACITOR GEH-WJ20X10111
...
1107
CONTROL BASE GEH-WP07X10011
...
2001
MAIN PWB-K GEH-WP26X10073
...
2002
OPERATION PWB-K GEH-WP26X10072
...
2003
DRIVE PWB-K GEH-WP26X10075
...
2004
FUSE GEH-WP23X10003
...
2005
VARISTO R GEH-WP27X10002
...
2006
CONTROL SHEET GEH-WP07X10008
...
2009
ICR PWB-K GEH-WP26X10084
...
2011
KNOB BASE HOLDER GEH-WP07X10012
...
2018
SPACER GEH-WJ01X10043
...
2021
FAN MTR CAPACITOR-OUT DO GEH-WP20X10022
...
2021
FAN MTR CAPACITOR - IN D GEH-WJ20X10115
...
2024
TRANSFORMER GEH-WP27X10056
...
2033
CONNECTOR ASS'Y GEH-WP27X10035
...
2106
SPACER GEH-WP01X10010
...
4016
SPECIAL SCREW GEH-WP01X10025

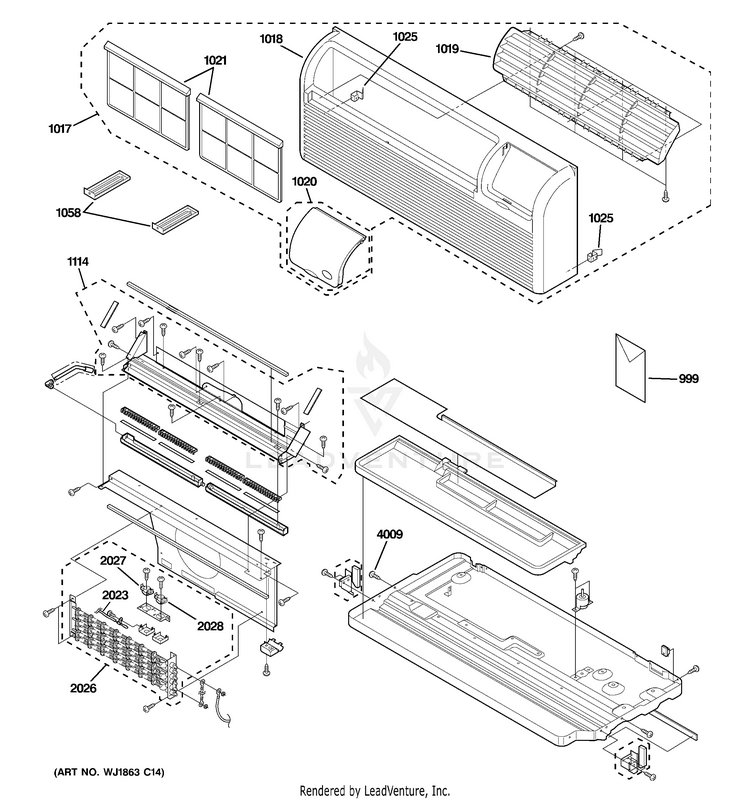

GRILLE, HEATER & BASE PAN PARTS

...
...
999
49-7592-1 GEH-49-7592
...
999
MINI MANUAL GEH-31-61458
...
1017
FRONT PANEL ASS'Y GEH-WP71X10013
...
1018
FRONT PANEL GEH-WP71X10014
...
1019
LOUVER ASS'Y GEH-WP71X10012
...
1020
CONTROL COVER ASS'Y GEH-WP71X10015
...
1021
AIR FILTER GEH-WP85X10008
...
1025
SPRING GEH-WP02X10001
...
1058
BRACE GEH-WP65X10005
...
1114
PLATE ASM GEH-WP71X10027
...
2023
THERMISTOR GEH-WP23X10025
...
2026
HEATER GEH-WP70X10037
...
2027
PROTECTOR HEATER GEH-WP28X10014
...
2028
PROTECTOR HEATER GEH-WP28X10013
...
4009
SPECIAL SCREW GEH-WJ01X10037

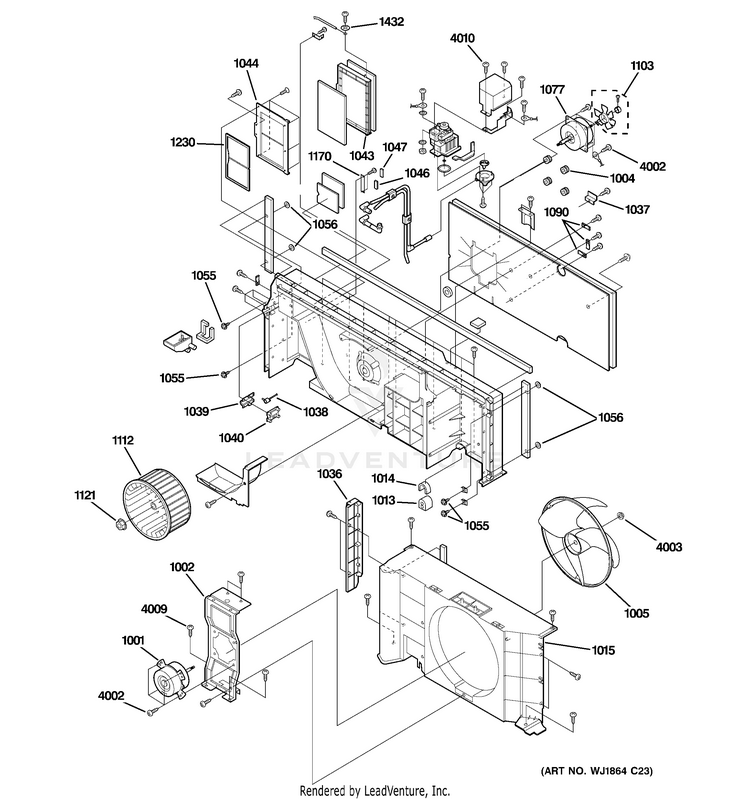

MOTOR & CHASSIS PARTS

...
...
1001
OUT DOOR FAN MOTOR GEH-WP94X10294
...
1002
OUT DOOR MOTOR ANGLE GEH-WP65X10007
...
1004
MOTOR CUSHION GEH-WP01X10012
...
1005
PROPELLER FAN GEH-WJ73X10047
...
1013
BULKHEAD INSULATOR GEH-WJ40X10014
...
1014
BULKHEAD INSULATOR GEH-WJ40X10015
...
1015
CONDNSER SHROUD GEH-WP76X10040
...
1036
CONDENSER PLATE GEH-WJ79X10134
...
1037
MOTOR COVER GEH-WP79X10017
...
1038
DAMPER LEVER GEH-WP70X10031
...
1039
DAMPER LEVER COVER GEH-WP70X10035
...
1040
DAMPER HOLDER GEH-WP70X10034
...
1043
DAMPER PLATE GEH-WP70X10032
...
1044
FILTER FRAME GEH-WP76X10028
...
1046
MAGNET GEH-WP01X10001
...
1047
MAGNET SEA L GEH-WP01X10002
...
1055
SPECIAL SCREW GEH-WP01X10024
...
1056
RUBBER WASHER GEH-WP01X10005
...
1077
IN DOOR FAN MOTOR GEH-WP94X10295
...
1090
CLAMP GEH-WJ01X10159
...
1103
FAN-K GEH-WP73X10011
...
1112
CENTRIFUGAL FAN GEH-WP73X10008
...
1121
SPECIAL NUT GEH-WJ01X10284
...
1170
MAGNET PLATE GEH-WP01X10011
...
1230
D FILTER GEH-WP85X10007
...
1432
PUSH NUT GEH-WP02X10003
...
4002
SPECIAL SCREW GEH-WP01X10019
...
4003
SPECIAL NUT GEH-WJ01X10041
...
4009
SPECIAL SCREW GEH-WJ01X10037
...
4010
SPECIAL SCREW GEH-WJ01X10012

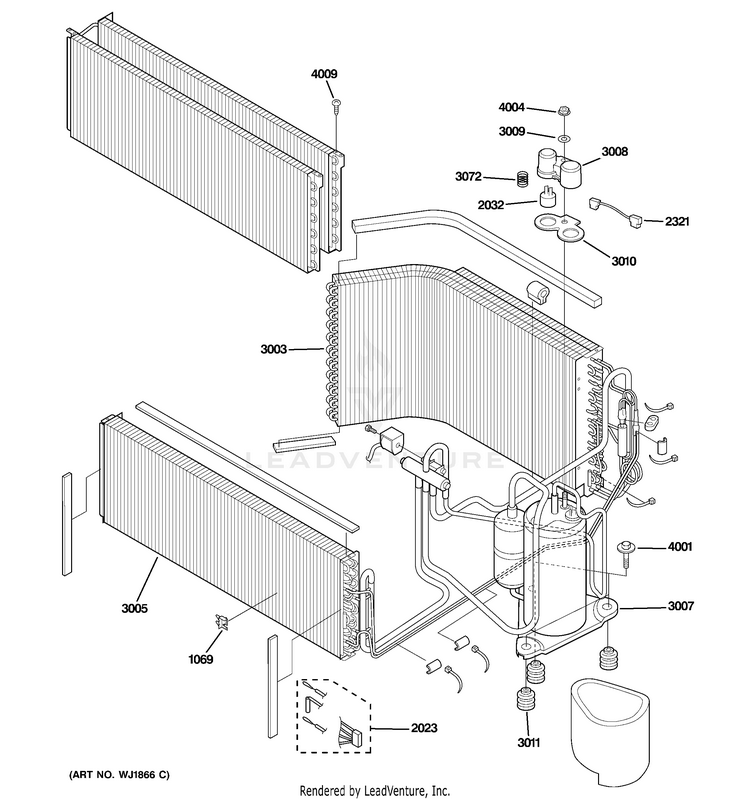

UNIT PARTS

...
...
1069
THERMISTOR HOLDER GEH-WJ03X10011
...
2023
THERMISTOR GEH-WP23X10025
...
2032
PROTECTOR GEH-WP23X10024
...
2321
LEAD WIRE GEH-WJ27X10001
...
3003
CONDENSER ASM GEH-WP88X10086
...
3005
EVAPORATOR ASS'Y GEH-WP87X10031
...
3007
COMPRESSOR GEH-WP98X10022
...
3008
TERMINAL COVER GEH-WJ79X10003
...
3009
GASKET WAS HER GEH-WJ01X10003
...
3010
TERMINAL GASKET GEH-WJ43X10003
...
3011
COMPRESSOR C CUSHION GEH-WJ01X10002
...
3072
PROTECTO R SPRING GEH-WJ02X10001
...
4001
STUD BOLT GEH-WJ01X10045
...
4004
SPECIAL NUT GEH-WP01X10015
...
4009
SPECIAL SCREW GEH-WJ01X10037
