product name

GE AV447FBS Range Hood

Model: AV447FBS

Save
Part Not Listed?Part Not Listed?
product name

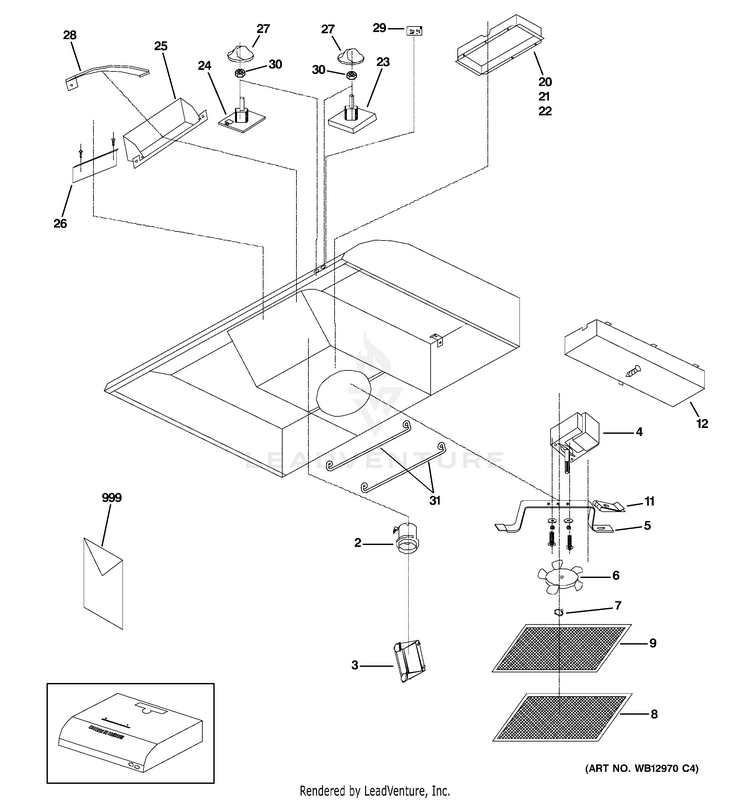

RANGE HOOD

...
...
2
LAMP SOCKET GEH-WB08X10037

...
3
LENS COVER GEH-WB02X11024


...
5
MOTOR BRACKET GEH-WB13X10013


...
7

...
8
CHARCOAL FILTER KIT GEH-WB02X10700

...
9
FILTER GREASE GEH-WB02X8391

...
11
RETAINING NUT GEH-WB02X11035

...
12
COVER, BB GEH-WB34X25409

...
20
PIVOT FRAME GEH-WB02X11028

...
21

...
22

...
23
FAN SWITCH GEH-WB24X10129

...
24
LAMP SWITCH GEH-WB24X10130

...
25
SWITCH BOX GEH-WB02X11031

...
26
COVER PLATE GEH-WB02X11032


...
28

...
29
SWITCH PANEL GEH-WB02X11036

...
30

...
31
FAN GUARD GEH-WB06X10769

...
999
MANUAL USE & CARE GEH-49-80589
...
...
...
