GE AJEQ06LCEQ1 Room Air Conditioner Built In

Model: AJEQ06LCEQ1

Back To Assemblies

Save Part Not Listed?
product name

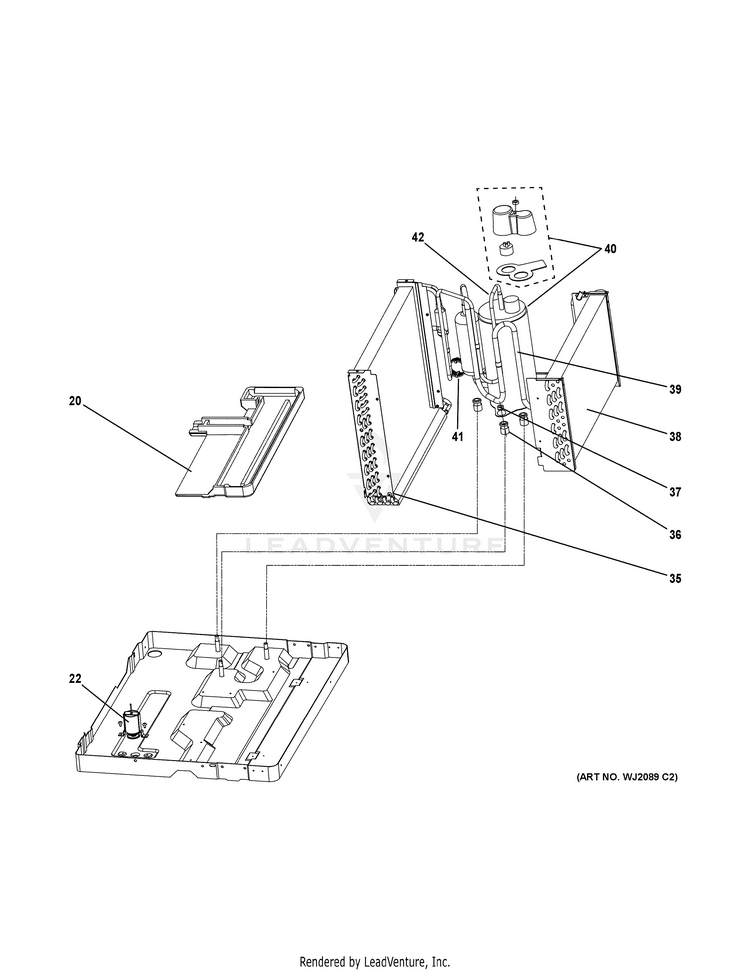

BASE PAN & UNIT PARTS

...
...
20
DRAIN TRAY GEH-WJ89X10067
...
22
DRAIN VALVE GEH-WJ58X10044
...
35
CONDENSER ASM GEH-WJ87X10294
...
36
RUBBER GROMMET GEH-WJ01X10368
...
37
NUT GEH-WJ01X10447
...
38
EVAPORATOR ASM GEH-WJ88X10261
...
39
SUCTION TUBE GEH-WJ57X10058
...
40
COMPRESSOR ASM GEH-WJ98X10333
...
41
CAPILLARY SUB-ASM GEH-WJ53X10275
...
42
DISCHARGE TUBE GEH-WJ49X10061
Schematic Image Zoomed
