GE AJEQ06LCEQ1 Room Air Conditioner Built In

Model: AJEQ06LCEQ1

Back To Assemblies

Save Part Not Listed?
product name

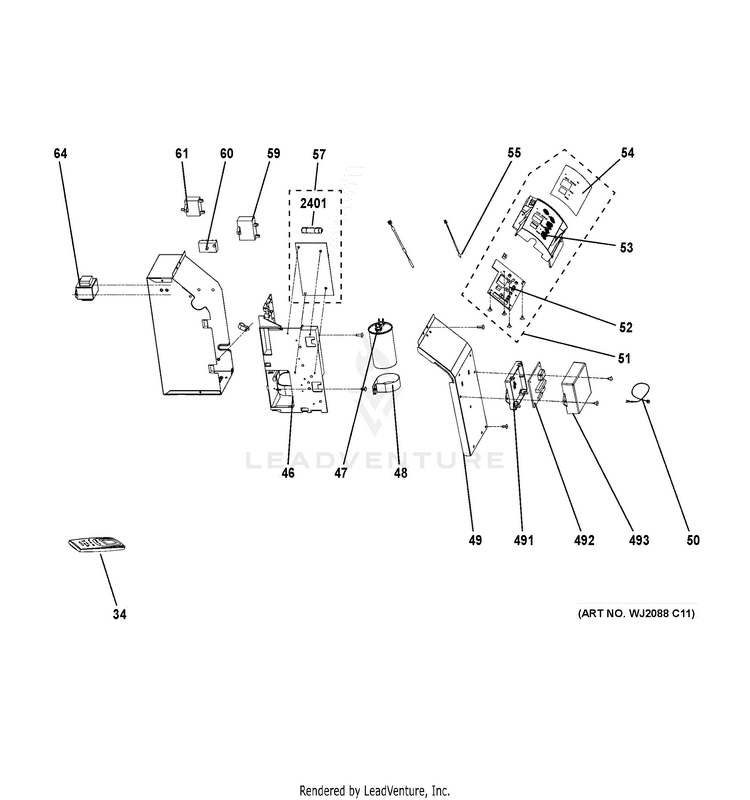

CONTROL PARTS

...
...
34
REMOTE CONTROLLER GEH-WJ26X10367
...
46
BRACKET GEH-WJ66X10102
...
47
CAPACITOR, MAIN GEH-WJ20X10203
...
48
CAPACITOR CLAMP GEH-WJ02X10034
...
49
CONTROL BOX COVER PLATE GEH-WJ80X10018
...
50
POWER CORD GEH-WJ35X10179
...
51
CONTROL PANEL GEH-WJ26X10366
...
52
DISPLAY BOARD GEH-WJ07X10263
...
53
COVER, REMOTE SENSOR GEH-WJ79X10261
...
54
MEMBRANE GEH-WJ26X10368
...
55
SENSOR, AMBIENT TEMP GEH-WJ27X10139
...
57
MAIN BOARD{PCB} GEH-WJ29X10050
...
59
CAPACITOR GEH-WJ20X10204
...
60
TERMINAL BOARD GEH-WJ26X10310
...
61
COMPRESSOR CAPACITOR GEH-WJ20X10146
...
64
TRANSFORMER GEH-WJ27X10161
...
491
DISPLAY COVER GEH-WJ79X10267
...
492
COMMUTATOR GEH-WJ27X10159
...
493
DISPLAY BOX GEH-WJ07X10262
...
2401
FUSE, MAIN BOARD GEH-WJ23X10174
