GE AJEQ06LCEQ1 Room Air Conditioner Built In

Model: AJEQ06LCEQ1

Back To Assemblies

Save Part Not Listed?
product name

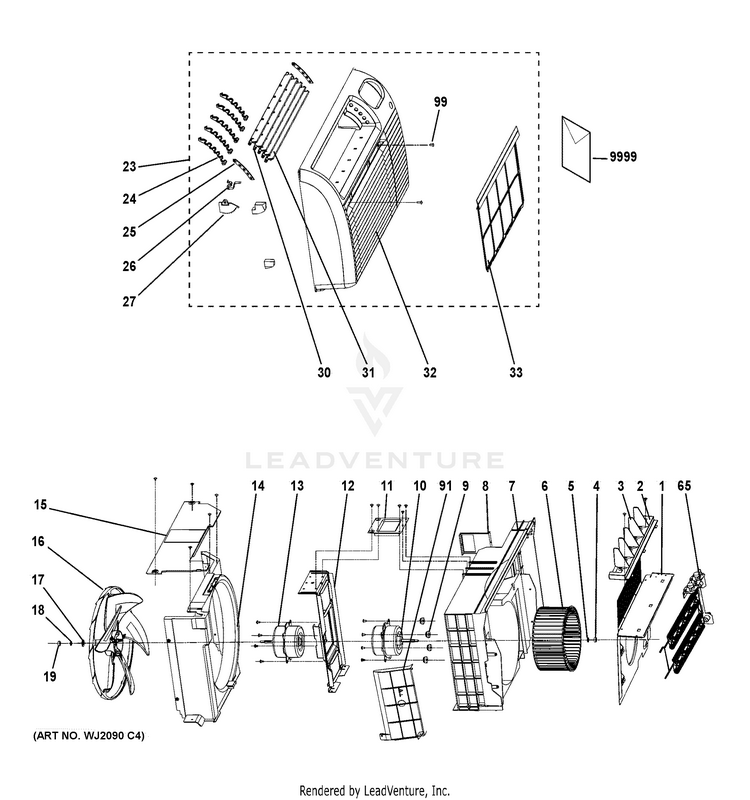

GRILLE & CHASSIS PARTS

...
...
1
ORIFICE PLATE GEH-WJ78X10061
...
2
CLAMP, SWING LOUVER GEH-WJ01X10443
...
3
SWING LOUVER GEH-WJ71X10772
...
4
NUT WITH WASHER GEH-WJ01X10314
...
5
WASHER GEH-WJ01X10313
...
6
CENTRIFUGAL FAN GEH-WJ73X10216
...
7
HOUSING PROPELLER GEH-WJ76X10339
...
8
BAFFLE PLATE GEH-WJ70X10068
...
9
SLEEVE(WASHER) GEH-WJ01X10445
...
10
FAN MOTOR GEH-WJ95X10030
...
11
BRACE GEH-WJ65X10135
...
12
MOTOR SUPPORT ANGLE GEH-WJ65X10136
...
13
FAN MOTOR GEH-WJ95X10031
...
14
SHROUD GEH-WJ76X10326
...
15
SHROUD COVER PLATE GEH-WJ79X10266
...
16
AXIAL FLOW FAN GEH-WJ73X10223
...
17
WASHER GEH-WJ01X10312
...
18
SPRING WASHER(DIA 6MM) GEH-WJ01X10373
...
19
NUT GEH-WJ01X10329
...
23
FRONT PANEL ASM GEH-WJ71X10765
...
24
LOUVER HOLDER GEH-WJ71X10766
...
25
LOUVER LINK GEH-WJ71X10763
...
26
NOTCH SPRING GEH-WJ02X10038
...
27
RATCHET WHEEL GEH-WJ01X10444
...
30
HORIZONTAL LOUVER B GEH-WJ71X10762
...
31
HORIZONTAL LOUVER A GEH-WJ71X10761
...
32
FRONT PANEL GEH-WJ71X10764
...
33
AIR FILTER GEH-WJ85X10185
...
65
ELECTRIC HEATER GEH-WJ27X10160
...
91
BREAKWATER GEH-WJ79X10269
...
99
SCREW GEH-WJ01X10453
...
9999
PM MINI MANUAL GEH-31-61683
...
9999
PM OWNERS MANUAL GEH-49-7694
