GE AEM24DSL1 Room Air Conditioner Portable

Model: AEM24DSL1

Save Part Not Listed?
product name

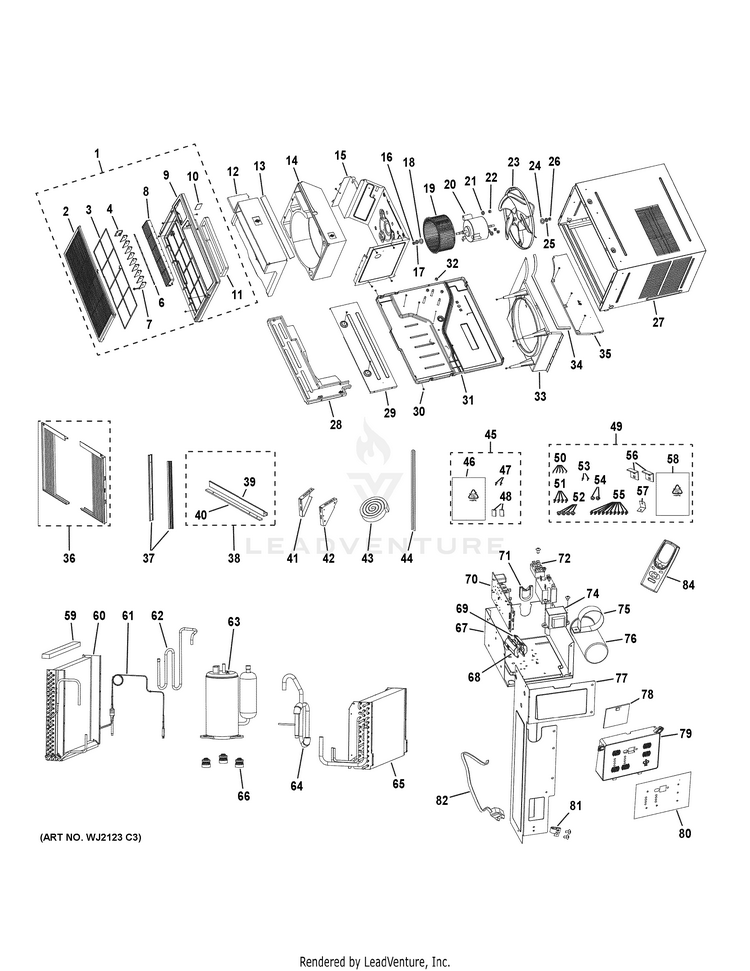

ROOM AIR CONDITIONER

...
...
1
PANEL ASM, FRONT GEH-WJ82X10085
...
2
GRILL FRONT, AIR INTAKE GEH-WJ71X10738
...
3
FILTER GEH-WJ71X10710
...
4
SUPPORT OF LOUVER GEH-WJ01X10310
...
6
SWING LOUVER GEH-WJ71X10711
...
7
LINK VERTICAL LOUVER GEH-WJ71X10712
...
8
SWING LOUVER 1 GEH-WJ71X10716
...
9
AIR GUIDE GEH-WJ70X10065
...
10
GRILL FRONT, AIR INTAKE GEH-WJ82X10078
...
11
SPONGE 1 (PANEL FRAME) GEH-WJ43X20218
...
12
SPONGE (PANEL FRAME) GEH-WJ43X20217
...
13
FOAM AIR OUTLET GEH-WJ76X10338
...
14
SPONGE(CONNECTING FOAM) GEH-WJ43X20216
...
15
HOUSING, PROPELLER GEH-WJ76X10310
...
16
MOTOR SUPPORTING GEH-WJ01X20212
...
17
NUT - WASHER GEH-WJ01X10265
...
18
WASHER GEH-WJ01X10266
...
19
GASKET (DIA 10MM) GEH-WJ43X10075
...
20
CENTRIFUGAL FAN GEH-WJ73X10204
...
21
FAN MOTOR GEH-WJ94X20207
...
22
SPRING WASHER(DIA 6MM) GEH-WJ01X10373
...
23
NUT GEH-WJ01X10329
...
24
AXIAL FLOW FAN GEH-WJ73X10190
...
25
GASKET (DIA 8MM) GEH-WJ43X10076
...
26
GASKET (DIA 8MM) GEH-WJ43X10077
...
27
NUT (M8)(LEVO) GEH-WJ01X10374
...
28
CABINET ASM GEH-WJ90X10135
...
29
TRAY, WATER GEH-WJ05X10064
...
30
TOP PLATE GEH-WJ79X10244
...
31
SELF-TAPPING SCREW GEH-WJ01X10352
...
32
CHASSIS SUB-ASSY GEH-WJ05X20203
...
33
NUT WITH WASHER M8 GEH-WJ01X10335
...
34
CONDENSER COVER GEH-WJ79X10245
...
35
SPONGE REAR CLAPBOARD P GEH-WJ66X10094
...
36
TOP PLATE GEH-WJ79X10246
...
37
CURTAIN ASM GEH-WJ69X10017
...
38
SUPPORT, CABINET GEH-WJ68X10064
...
39
CURTAIN ASM GEH-WJ71X10714
...
40
TOP GUIDE GEH-WJ82X10069
...
41
FORM GASKET GEH-WJ43X10082
...
42
BRKT, CASE MOUNT LH GEH-WJ67X20197
...
43
BRKT, CASE MOUNT RH GEH-WJ67X20198
...
44
FORM GASKET 1 GEH-WJ43X10079
...
45
FORM GASKET 2 GEH-WJ43X10080
...
46
HARDWARE KIT GEH-WJ01X10415
...
47
PLASTIC BAG GEH-WJ01X10350
...
48
SCREW ST4.2X13 TA GEH-WJ01X20213
...
49
FORM GASKET 4 GEH-WJ43X20208
...
50
HARDWARE, INSTALLATION GEH-WJ01X10433
...
51
SCREW ST4.2X19 TA GEH-WJ01X20214
...
52
BOLT M5X13 GEH-WJ05X10057
...
53
NUT M5X5 GEH-WJ01X10377
...
54
BOLT M6X19 GEH-WJ05X10056
...
55
NUT M6X6 GEH-WJ01X10378
...
56
SCREW M4.8X8 GEH-WJ01X10379
...
57
L- SUPPORT GEH-WJ82X20174
...
58
WINDOW LOCKING BRACKET GEH-WJ67X20219
...
59
PLASTIC BAG GEH-WJ01X10350
...
60
SPONGE(CONDENSER) GEH-WJ43X20215
...
61
CONDENSER ASM GEH-WJ87X10263
...
62
CAPILLARY SUB-ASSY GEH-WJ53X20202
...
63
DISCHARGE TUBE GEH-WJ49X10058
...
64
COMPRESSOR AND FITTINGS GEH-WJ98X20204
...
65
SUCTION TUBE GEH-WJ57X10056
...
66
EVAPORATOR ASSY GEH-WJ88X10240
...
67
COMPRESSOR GASKET GEH-WJ01X20205
...
68
ELECTRIC BOX SUB-ASSY 1 GEH-WJ07X20206
...
69
COVER, OLP GEH-WJ79X10255
...
70
PROTECTOR, OVERLOAD GEH-WJ23X10162
...
71
MAIN BOARD GEH-WJ26X20175
...
72
CABLE CROSS LOOP GEH-WJ01X20199
...
74
RELAY GEH-WJ24X10004
...
75
TRANSFORMER GEH-WJ27X10154
...
76
CAPACITORCLAMP GEH-WJ02X20201
...
77
CAPACITOR CBB65 GEH-WJ20X20200
...
78
FRONT CLAPBOARD 2 GEH-WJ05X20209
...
79
DISPLAY BOARD GEH-WJ26X20184
...
80
LCD COVER GEH-WJ07X20210
...
81
MEMBRANE GEH-WJ07X20211
...
82
CABLE CLAMP GEH-WJ03X10077
...
84
CONTROL, REMOTE GEH-WJ26X10354
