GE AEM08LVW1 Room Air Conditioner

Model: AEM08LVW1

Save Part Not Listed?
product name

Popular Parts

Popular Parts

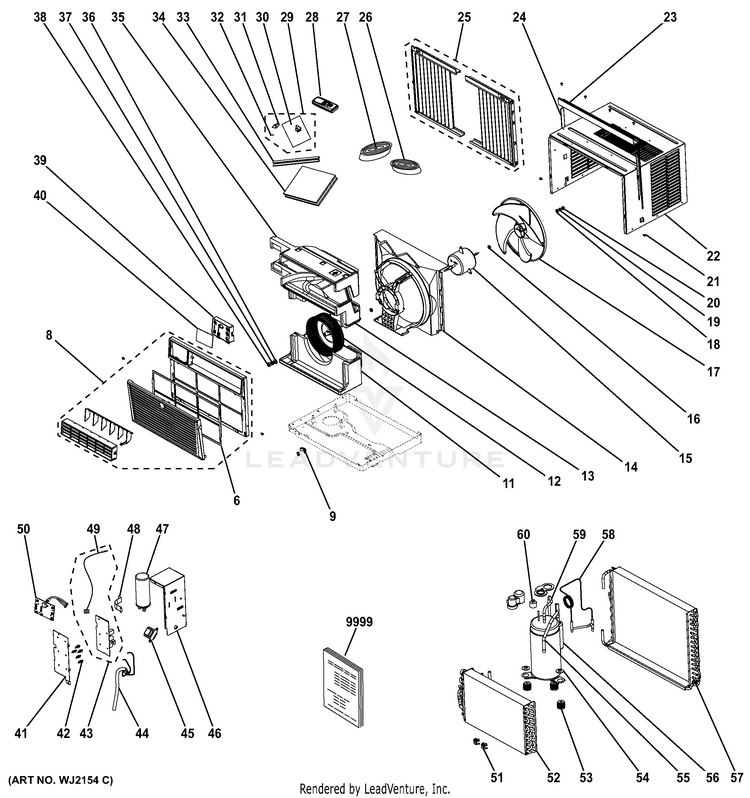

ROOM AIR CONDITIONER

...
...
6
FILTER SUB-ASSY GEH-WJ71X20302
...
8
FRONT PANEL ASSY GEH-WJ82X20304
...
9
CABLE CLAMP GEH-WJ03X20292
...
11
INDOOR FAN SHROUD, LOWER GEH-WJ76X21208
...
12
CENTRIFUGAL FAN GEH-WJ94X21202
...
13
INDOOR FAN SHROUD, CENTE GEH-WJ76X21207
...
14
MOTOR SUPPORTING GEH-WJ01X20308
...
15
FAN MOTOR GEH-WJ94X20301
...
16
GASKET (DIA 8MM) GEH-WJ43X10072
...
17
AXIAL FLOW FAN GEH-WJ73X10218
...
18
WASHER(DIA 6MM) GEH-WJ01X10347
...
19
WASHER GEH-WJ01X10313
...
20
NUT WITH WASHER GEH-WJ01X10314
...
21
SCREW ST4.2X9.5 TC GEH-WJ01X20240
...
22
CABINET GEH-WJ90X20291
...
23
TOP RAIL GEH-WJ66X20309
...
24
CONNECTION BAR TO CABINE GEH-WJ66X10084
...
25
CURTAIN ASM GEH-WJ01X10353
...
26
GASKET SEAL 1 GEH-WJ43X10073
...
27
GASKET SEAL 2 GEH-WJ43X10074
...
28
REMOTE CONTROL GEH-WJ26X20522
...
29
HARDWARE ASM, INSTALL GEH-WJ01X10349
...
30
SCREW BAG GEH-WJ01X20254
...
31
WINDOW LOCKING BRACKET GEH-WJ66X20230
...
32
SCREW GEH-WJ01X10351
...
33
ACCORDIAN PANEL SEAL GEH-WJ43X21200
...
34
FOAM INSULATION PANEL GEH-WJ43X21205
...
35
INDOOR FAN SHROUD, UPPER GEH-WJ76X21209
...
36
NUT (M5) GEH-WJ01X10345
...
37
SPRING WASHER (DIA 5MM) GEH-WJ03X10074
...
38
NUT (M5) GEH-WJ01X10344
...
39
ELECTRIC CONTROLLER BOX GEH-WJ07X20251
...
40
ESCUTCHEON GEH-WJ07X20239
...
41
ELECTRIC BOX COVER GEH-WJ79X20299
...
42
PCB SUPPORT GEH-WJ01X10354
...
43
MAIN BOARD GEH-WJ26X20520
...
44
POWER CORD GEH-WJ35X10173
...
45
TRANSFORMER GEH-WJ27X20257
...
46
ELECTRIC BOX ASSY GEH-WJ26X20298
...
47
CAPACITOR GEH-WJ20X21201
...
48
CAPACITOR CLAMP GEH-WJ02X20245
...
49
THERMOSTAT GEH-WJ27X10122
...
50
DISPLAY BOARD GEH-WJ26X20184
...
51
SENSOR HOLDER GEH-WJ03X10067
...
52
EVAPORATOR ASSY GEH-WJ88X20300
...
53
GROMMET GEH-WJ01X21206
...
54
BOLT GEH-WJ01X20241
...
55
TUBE, SUCTION GEH-WJ57X10045
...
56
COMPRESSOR AND FITTINGS GEH-WJ98X21203
...
57
CONDENSER ASSY GEH-WJ87X20296
...
58
CAPILLARY ASSY GEH-WJ53X20294
...
59
DISCHARGE TUBE GEH-WJ53X21204
...
60
OVERLOAD PROTECTOR GEH-WJ20X21210
...
9999
USE & CARE GEH-49-7751
...
9999
PM MINI-MANUAL GEH-31-30762
